TOBO STEEL GROUP CHINA
 |
| Place of Origin: | China |
| Brand Name: | TOBO |
| Certification: | CE/ISO |
| Model Number: | / |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | 1-100 |
| Packaging Details: | Inner package:plastic bag sealed package Outer package:carton package or wooden case package The lettering, nameplate, certificate for cryogenic valves are available We can customize the package for globe valve; |
| Delivery Time: | 3-5 days |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000pcs/month |
| Key Word1: | Wafer Butterfly Valve | Nominal Pressure: | Customize Pressure |
|---|---|---|---|
| Delivery Time: | 2-3days | Logo: | Customize Logo |
| Body Material: | SS316 Cast Steel | Supply Ability: | 100pcs One Day |
| MOQ: | 1pc | Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| High Light: | NBR Wafer Butterfly Valve,Soft Sealing Wafer Butterfly Valve,EPDM Seat SS Butterfly Valve |
||

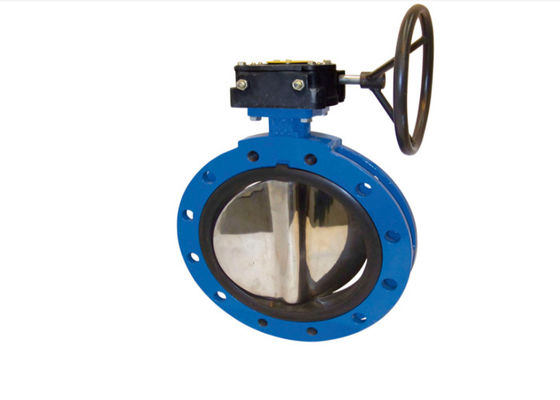

Gas Stainless Steel Butterfly Valve Soft Sealing NBR EPDM Seat SS Butterfly Valve
Specifications
Butterfly Valve is a kind of simple structure, at the same time it can be used for low pressure pipeline medium switch control., serve as cut off and throttling in the pipeline.
Material:
The body material: GG25/GGG40/GGG50
The disc material: DI+Nylon/SS304+Nylon/SS316+Nylon/AL-BZ+Nylon
The stem material: SS410/SS416/SS420/SS304/SS316
The seat material: NBR/EPDM/PTFE/VITON
Design Standard:
API 609/ISO 5752/BS5155
Pressure :
ANSI 125#/150#; JIS5K/10K/16K; DIN 2501 PN6/PN10/PN16/; BS4504 PN10/PN16
Usage and features:
Nylon board butterfly valve structure without pin, excellent reduction, self-lubricity, operating torque 40% less than normal butterfly valve. Good abrasion resistance, sealing butterfly valve can be significantly prolongs the service life, compared with the average life-span, line butterfly valve can lengthen 3 times.
Nylon have excellent performance, alkali, salt resistance to erosion and weak organic compounds, adapt to a wide range of inertia. Advanced without pin connections, guarantee the media and metal completely isolated, improve the product's reliability, simple maintenance of butterfly valves

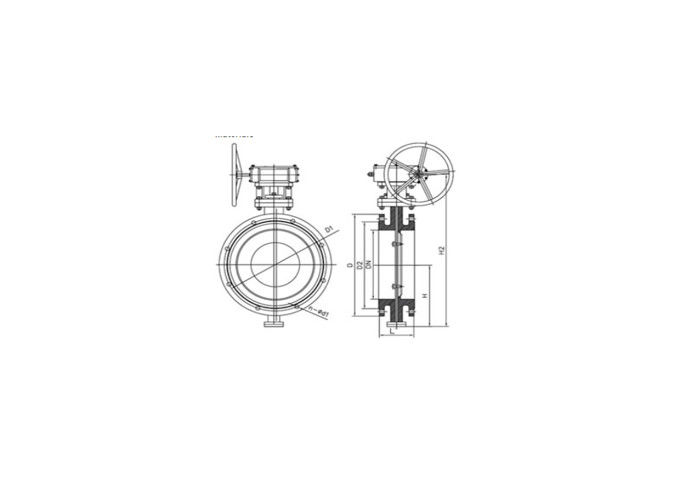

2. Main Connection Dimensions or Lug Butterfly Valve
| Class | Size | Class | Size | ||||
| NPS | DN | L | NPS | DN | L | ||
| 150Lb | 2 | 50 | 43 | 300Lb | 2 | 50 | 43 |
| 21/2 | 65 | 46 | 21/2 | 65 | 46 | ||
| 3 | 80 | 48 | 3 | 80 | 48 | ||
| 4 | 100 | 54 | 4 | 100 | 54 | ||
| 5 | 125 | 56 | 6 | 150 | 59 | ||
| 6 | 150 | 57 | 8 | 200 | 73 | ||
| 8 | 200 | 64 | 10 | 250 | 83 | ||
| 10 | 250 | 71 | 12 | 300 | 92 | ||
| 12 | 300 | 81 | 14 | 350 | 117 | ||
| 14 | 350 | 92 | 16 | 400 | 133 | ||
| 16 | 400 | 102 | 18 | 450 | 149 | ||
| 18 | 450 | 114 | 20 | 500 | 159 | ||
| 20 | 500 | 127 | 24 | 600 | 181 | ||
| 24 | 600 | 154 | 600Lb | 2 | 50 | 43 | |
| 26 | 650 | 154 | 21/2 | 65 | 46 | ||
| 28 | 700 | 165 | 3 | 80 | 54 | ||
| 30 | 750 | 165 | 4 | 100 | 64 | ||
| 32 | 800 | 190 | 6 | 150 | 78 | ||
| 36 | 900 | 200/203 | 8 | 200 | 102 | ||
| 38 | 950 | 200/203 | 10 | 250 | 117 | ||
| 40 | 1000 | 216 | 12 | 300 | 140 | ||
| 42 | 1050 | 216/251 | 14 | 350 | 155 | ||
| 44 | 1100 | 216/251 | 16 | 400 | 178 | ||
| 48 | 1200 | 254/276 | 18 | 450 | 200 | ||
| 52 | 1300 | 254 | 20 | 500 | 216 | ||
| 56 | 1400 | 279 | 24 | 600 | 232 | ||
| 60 | 1500 | 279 | |||||

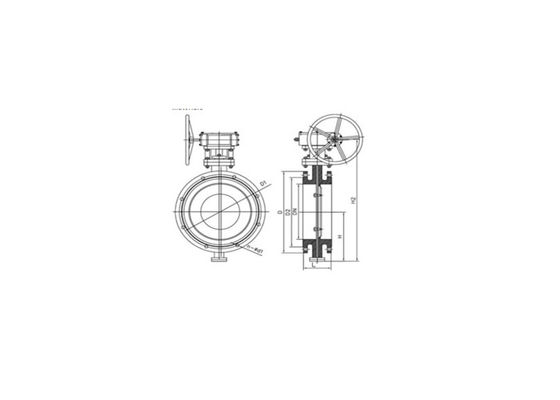

2. Main Connection Dimensions or Lug Butterfly Valve
| Class | Size | Class | Size | ||||
| NPS | DN | L | NPS | DN | L | ||
| 150Lb | 2 | 50 | 43 | 300Lb | 2 | 50 | 43 |
| 21/2 | 65 | 46 | 21/2 | 65 | 46 | ||
| 3 | 80 | 48 | 3 | 80 | 48 | ||
| 4 | 100 | 54 | 4 | 100 | 54 | ||
| 5 | 125 | 56 | 6 | 150 | 59 | ||
| 6 | 150 | 57 | 8 | 200 | 73 | ||
| 8 | 200 | 64 | 10 | 250 | 83 | ||
| 10 | 250 | 71 | 12 | 300 | 92 | ||
| 12 | 300 | 81 | 14 | 350 | 117 | ||
| 14 | 350 | 92 | 16 | 400 | 133 | ||
| 16 | 400 | 102 | 18 | 450 | 149 | ||
| 18 | 450 | 114 | 20 | 500 | 159 | ||
| 20 | 500 | 127 | 24 | 600 | 181 | ||
| 24 | 600 | 154 | 600Lb | 2 | 50 | 43 | |
| 26 | 650 | 154 | 21/2 | 65 | 46 | ||
| 28 | 700 | 165 | 3 | 80 | 54 | ||
| 30 | 750 | 165 | 4 | 100 | 64 | ||
| 32 | 800 | 190 | 6 | 150 | 78 | ||
| 36 | 900 | 200/203 | 8 | 200 | 102 | ||
| 38 | 950 | 200/203 | 10 | 250 | 117 | ||
| 40 | 1000 | 216 | 12 | 300 | 140 | ||
| 42 | 1050 | 216/251 | 14 | 350 | 155 | ||
| 44 | 1100 | 216/251 | 16 | 400 | 178 | ||
| 48 | 1200 | 254/276 | 18 | 450 | 200 | ||
| 52 | 1300 | 254 | 20 | 500 | 216 | ||
| 56 | 1400 | 279 | 24 | 600 | 232 | ||
| 60 | 1500 | 279 | |||||
