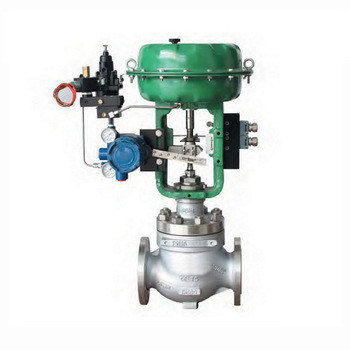

DN20 Diaphragm Actuated Control Valve 1.6Mpa Pneumatic 3 Way Flange Valve with Positioner

DN20 Diaphragm Actuated Control Valve 1.6Mpa Pneumatic 3 Way Flange Valve with Positioner

  • DN20 Diaphragm Actuated Control Valve 1.6Mpa Pneumatic 3 Way Flange Valve with Positioner
  • DN20 Diaphragm Actuated Control Valve 1.6Mpa Pneumatic 3 Way Flange Valve with Positioner
DN20 Diaphragm Actuated Control Valve 1.6Mpa Pneumatic 3 Way Flange Valve with Positioner
Product Details:
Place of Origin: China
Brand Name: TOBO
Model Number: Pneumatic valve
Contact Now
Detailed Product Description
Type: Pneumatic Diaphragm Control Valve Suitable Medium: Petroleum, Chemical Industry,water, Gas, Oil Ect
Working Temperature: -45 To 200 Celsius Body/Disc: Cast Iron(CI): GG25,Ductile Iron
Port Size: DN50-DN1200 Power: Manual
Media: Gas Application: Genera
Temperature Of Media: Low Temperature Temperature Of Me: Zinc Plated Carbon Steel, Stainless Steel,
High Light:

Diaphragm Actuated Control Valve

,

DN20 Pneumatic Diaphragm Control Valve

,

1.6Mpa Pneumatic Diaphragm Control Valve

Actuator Diaphragm Control Valve With Positioner Pneumatic 3-Way Flange Valve





Pneumatic 3-way ball valve can be divided into L type and T type. L type 3-way ball valve is used for switching the flow direction of media and making two orthogonal passages connected. Four-seat 3-way ball valve has features including artistic appearance



Product Description:



Body material: SS316/SS304

Actuator material: SS304

Disc seal: PTFE/FPM

Stem seal: PTFE/FPM

Piston seal: FPM/NBR



Technical Parameter:



Connection size: DN10-DN80



Thread: 3/8" - 3"



Applicable Medium: Water, Neutral gas or liquid, alcohol, oil, organic solvent, steam



Temperature of Medium: PTFE: -10℃ - +180℃, FPM: 10℃ - +100℃



Viscidity: Max 600mm³/s



Downstream installing / Upstream installing



Controlling medium: air/neutral gas



Controlling pressure: 0.3 - 0.8Mpa



Working pressure: 0-1.6Mpa



Size Range 3/4"~12", DN20~300
Acting Mode Multi-Spring diaphragm type
Working Pressure 1.6, 4.0, 6.4MPa
Air Supply Pressure 0.14, 0.16, 0.28, 0.4MPa
Lifespan 1,000,000 (1 Million) Times
Temperature -30°C~70°C
Body Material SS304, SS316, SS316L, WCB
Number of Ways 2 Way
End Connection Flanged
Applicable Media Control of Water, Air, Gas, Oil, Liquid, Steam, etc
Optional Accessories Namur Solenoid Valve, Limit Switch, F.R.L, Position Indicator, Manual Device
Application Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper








Product Description

Pneumatic 3-way ball valve can be divided into L type and T type. L type 3-way ball valve is used for switching the flow direction of media and making two orthogonal passages connected. Four-seat 3-way ball valve has features including artistic appearance and compact and reasonable structure. It can not only switch the flow direction of media, but also connect three passages, or close one passage while making the other two passages connected. Thus, it can control the convergence and diversion of the media in pipe flexibly.



Product features



1. Pneumatic 3-way flange ball valve adopts an integrated structure, seal type of four valve seats and less flange connection, ensuring high reliability and light weight.
2. Pneumatic 3-way ball valve spool is divided into T type and L type, with long service life, large flow capacity and small resistance.
3. The ball valve can be divided into single-acting and double-acting type. The single-acting type has the feature that once the power source has fault, the ball valve will be under a state required by the control system.



DN20 Diaphragm Actuated Control Valve 1.6Mpa Pneumatic 3 Way Flange Valve with Positioner 0

DN20 Diaphragm Actuated Control Valve 1.6Mpa Pneumatic 3 Way Flange Valve with Positioner 1



A pneumatic valve for use in laminated plastic microfluidic structures. This zero or low dead volume valve allows flow through microfluidic channels for use in mixing, dilution, particulate suspension and other techniques necessary for flow control in analytical devices.
