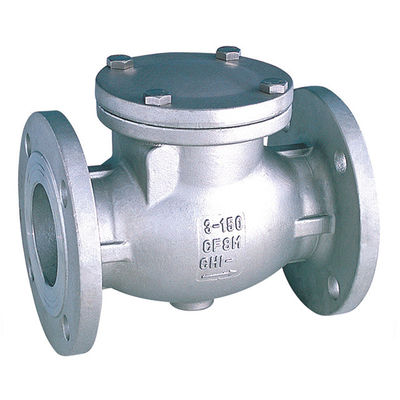

WCB Cast Steel Flange Check Valve DN15 300LB RF Flange Connection

DN15 300LB RF WCB Cast Steel Flange Swing Check Valve

STANDARDS .

Design : API 600 .
Face to face dimensions : ASME B16.10 .
Flange dimensions : 2"~24" to ANSI B16.5, 22", 26"~36" to MSS-SP-44 to API605 on Request
Test : API 598 .

STRUCTURE .

OS&Y, Rising stem,Bolted Bonnet,Flexible Wedge

OTHER SPECIFICATIONS AVAILABLE .

Materials : WCB,WC6,WC9,C5,C12,LCB,LCC,CF8M,CF3,CF3M,CN7M,and other high temperature alloys.
End connections : Butt weld , Raised face , Ring type joint.
Seat : Removable or welded.
Trim :1,5,8,11,12.,etc.


Quick Details

Stainless Steel Check Valve Standards

Face to face dimensions as ANSI B16.10

End flange dimension as ANSI B16.5

Pressure-temperature ratings as ANSI B16.34

Pressure test as API 598

Applicable Medium: water ,gas,oil,and other causticity medium.

Stainless Steel Check Valve Application:

Valve is used for preventing the back-going of medium in pipelines and equipments, and the pressure of

medium will bring the result of opening and closing automatically.

When the medium is back-going, valve disc will automaticaly closed to avoid accidents.

Stainless Steel Check Valve Test Pressure

Types of Valves

The type of disk will decide the type of valve. Most common types of Check valves are

• Swing Type.

  • Top Hinged

  • Tilting disk

• Lift Type

  • Piston Type

  • Ball type

• Dual Plate Type

• Stop Check Valve

Swing Check Valve

The disc in a swing type valve is unguided as it fully opens or closes. This Valve operates when there is flow

in the line and get fully closed when there is no flow. Turbulence and pressure drop in the valve is very low.

Disk and seat designs can be of metal to metal or metal to composite.

The angle between the seat and the vertical plane is known as the seating angle and varies from 0 to 45 degrees.

Usually, the seat angles are in the range of 5 to 7 degrees. Larger seat angles reduce the disc travel, resulting in

quick closing, thus minimizing the possibility of water hammer. A vertical seat has a 0-degree angle.

The swing type valve allows full, unobstructed flow and automatically closes as pressure decreases. Usually installed

in combination with gate valves because they provide relatively free flow combinations.

A basic swing type valve consists of a valve body, a bonnet, and a disk that is connected to a hinge.

Packing Details:

We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.


Delivery Details: According to the order, 7~60days
