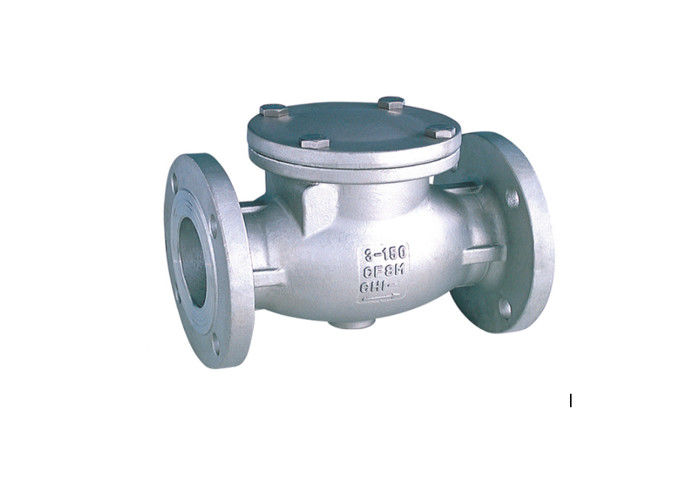

SS Flange Check Valve A351 CF8M SS316 Metal Seat H44W Class 150LB 2500LB

SS Flange Check Valve A351 CF8M SS316 Metal Seat H44W Class 150LB 2500LB

  • SS Flange Check Valve A351 CF8M SS316 Metal Seat H44W Class 150LB 2500LB
  • SS Flange Check Valve A351 CF8M SS316 Metal Seat H44W Class 150LB 2500LB
SS Flange Check Valve A351 CF8M SS316 Metal Seat H44W Class 150LB 2500LB
Product Details:
Place of Origin: China
Brand Name: TOBO
Certification: CE/ISO
Model Number: /
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: 1-100
Packaging Details: Inner package:plastic bag sealed package Outer package:carton package or wooden case package The lettering, nameplate, certificate for cryogenic valves are available We can customize the package for globe valve;
Delivery Time: 3-5 days
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000pcs/month
Contact Now
Detailed Product Description
Key Word1: SS Swing Check Valve Nominal Pressure: Customize Pressure
Delivery Time: 2-3days Logo: Customize Logo
Body Material: SS316 Cast Steel Supply Ability: 100pcs One Day
MOQ: 1pc Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
High Light:

2500LB Flange Check Valve

,

CF8M Flange Check Valve

,

150LB Flange Swing Check Valve

SS Swing Check Valve A351 CF8M SS316 Metal Seat H44W Class 150LB - 2500LB



Class 150~1500 Swing Check Valve
Bolted cover,swing type disc
Threaded or welded seat ring
ASTM A216 WCB,A217 WC6,A351CF8,A351CF8M,
A351 CF3,A351 CF3M,A351 CF8M
Technical parameters :
Standards compliance
Design and Manufacture: ANSI B16.34, API6D, BS1868
Face to face(end to end): ANSI B16.10, API6D
Flanged connection: 2"~24" to ANSI B16.5
22", 26"~36 to MSS-SP-44
to API605 on request
Butt welded end: ANSI B16.25
Test and inspection: API598, API6D



Materials list
NO. Part name Material
12 Disc nut Carbon steel/stainless steel
11 Washer Carbon steel/stainless steel
10 Hinge pin Carbon steel/stainless steel
09 Seat ring CS+SS/SS/SS+STL(see body materials)
08 Disn CS+SS/SS/SS+STL(see body materials)




NO. Part name WCB LCB WC6 WC9
07 Bolt stud&nut A193 Gr B7/A194 Gr 2H A320 Gr L7/A194 Gr 4 A193 Gr B16/A194 Gr 4/7 A193 Gr B16/A194 Gr 4/7
06 Cover bolt&nut A193 Gr B7/A194 Gr 2H A320 Gr L7/A194 Gr 4 A193 Gr B16/A194 Gr 4/7 A193 Gr B16/A194 Gr 4/7
05 Gasket Spiral wound/soft iron Spiral wound/soft iron spiral wound/SS304 spiral wound/SS304
04 Hinge yoke A216 Gr WCB A352 Gr LCB A217 Gr WC6 A217 Gr WC9
03 Hinge A216 Gr WCB A352 Gr LCB A217 Gr WC6 A217 Gr WC9
02 Cover A216 Gr WCB A352 Gr LCB A217 Gr WC6 A217 Gr WC9
01 Body A216 Gr WCB A352 Gr LCB A217 Gr WC6 A217 Gr WC9




NO. Part name C5 C12 CF8 CF8M
07 Bracket stud&nut A193 Gr B16/A194 Gr 4 A193 Gr B16/A194 Gr 4/7 A193 Gr B8/A194 Gr 8 A193 Gr B8M/A194 Gr 8M
06 Cover bolt&nut A193 Gr B16/A194 Gr 4 A193 Gr B17/A194 Gr 4/7 A193 Gr B8/A194 Gr 8 A193 Gr B8M/A194 Gr 8M
05 Gasket Spiral wound/soft iron Spiral wound/SS304 spiral wound/SS304 spiral wound/SS316
04 Hinge yoke A217 Gr C5 A217 Gr C12 A351 Gr CF8 A351 Gr CF8M
03 Hinge A217 Gr C5 A217 Gr C12 A351 Gr CF8 A351 Gr CF8M
02 Cover A217 Gr C5 A217 Gr C12 A351 Gr CF8 A351 Gr CF8M
01 Body A217 Gr C5 A217 Gr C12 A351 Gr CF8 A351 Gr CF8M






Quick Details:

1. Type: Swing Check Valve Stainless Steel
2. Bonnet Type: Bolted Bonnet

3. Disc Type: Swing Disc
4. Size Range: 2" to 36"
5. Pressure Ratings: ANSI 150LB - 2500LB
6. End Connections: Flanged, Butt welding
7. Materials: Cast Stainless Steel A351 CF8 / CF8M / CF3 / CF3M, A890 4A / 5A

8. Various trim materials available to suit service conditions
9. NACE MR 0175



Standards

Design and manufacture: Cast steel check valve according to BS 1868, ASME B16.34 and API 6D;
Forged stee! check valve according to API 602.

Inspection and test: API 598 or API 6D.

End flange dimension: ASME B16.5 (for NPS≤24),ASME B16.47 series B,

API 605 or ASME B16.47 series A,MSS SP-44 (for NPS > 24).

BW end dimension: ASME B16.25.

Socket-weld dimension: ASME B16.11.

Face to face and end to end: ASME

Pressure-temperature ratings: ASME B16.34.

Shell wall thickness: API 600 and BS 1868.
