TOBO STEEL GROUP CHINA
 |
| Place of Origin: | China |
| Brand Name: | TOBO |
| Certification: | CE/ISO |
| Model Number: | / |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | 1-100 |
| Packaging Details: | Inner package:plastic bag sealed package Outer package:carton package or wooden case package The lettering, nameplate, certificate for cryogenic valves are available We can customize the package for globe valve; |
| Delivery Time: | 3-5 days |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000pcs/month |
| Key Word1: | Cast Steel Check Valve | Supply Ability: | 100pcs One Day |
|---|---|---|---|
| Nominal Pressure: | Customize Pressure | Delivery Time: | 2-3days |
| Logo: | Customize Logo | Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Body Material: | SS316 Cast Steel | MOQ: | 1pc |
| High Light: | HF Seat Swing Type Check Valve,1500LB Swing Type Check Valve,1500LB Cast Steel Check Valve |
||

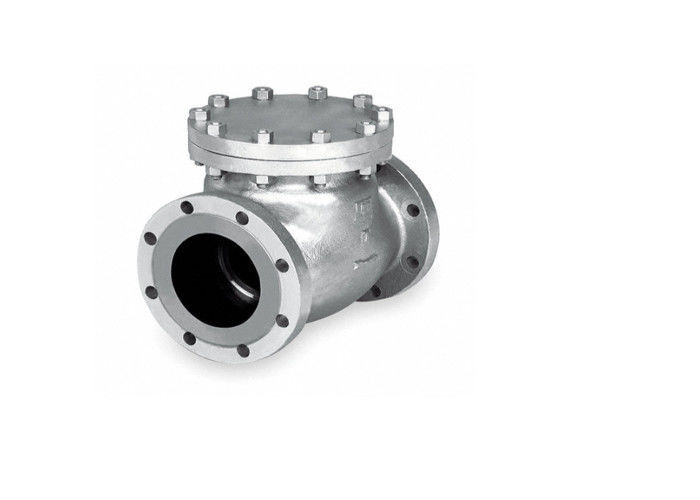

High Pressure Swing Type Check Valve Cast Steel 1500LB HF Seat With Bolted Cover
Features
1. Generally
Bolted Bonnet / Pressure Sealing Bonnet;
Swing Disc;
Metallic Seating Surfaces
2. Body and Bonnet Connection
Class1500LB check valves are both for bolted bonnet and pressure seal bonnet.
3. Cover Gasket Style
Metal ring gasket
Pressure seal cover / bonnet design.
4. Seat
For carbon steel check valve, the seat is usually forged steel. The seat sealing surface may be spray-welded with hard alloy if specified by the customer. For Stainless steel check valve, integrai seat is usually adopted, or it can be machined integrally after hard alloy welded. The threaded or welded type seat is also optional for stain less steel check valve if being requested by the customer.
Quick Details:
1. Type: Swing Check Valve Cast Steel
2. Bonnet Type:
Bolted Bonnet / Pressure Seal Bonnet
3. Disc Type: Swing Disc
4. Size Range: 2in - 24in
5. Pressure Ratings: ANSI 1500LB / 1500#
6. End Connections: Flanged (RF, RTJ), Butt weld (BW).
7. Materials: Cast Steel in WCB, LCB, CF8, CF8M, CF3, CF3M, WC6, WC9, C5, C12, 4A, 5A or Equivalent,
8. Various trim materials available to suit service conditions
9. NACE MR 0175
CLASS 150~1500 SWING CHECK VALVE
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Quick Details:
1. Type: Swing Check Valve Stainless Steel
2. Bonnet Type: Bolted Bonnet
3. Disc Type: Swing Disc
4. Size Range: 2" to 36"
5. Pressure Ratings: ANSI 150LB - 2500LB
6. End Connections: Flanged, Butt welding
7. Materials: Cast Stainless Steel A351 CF8 / CF8M / CF3 / CF3M, A890 4A / 5A
8. Various trim materials available to suit service conditions
9. NACE MR 0175
For your company to order valve products in our company, our factory makes the following commitments in terms of after-sales service:
1. Our company implements warranty on product quality;
2. After the contract is signed, guarantee the quality and quantity, and deliver on time;
3. The company ensures that the valve products provided meet the contract targets
4. For technical consultation of the demand side, give answers at any time;
5. When delivering the equipment, the factory delivers the following materials to the purchaser: delivery list, product certificate, product sample, product instruction manual, technical information;
After receiving a letter or a phone call from the user regarding quality issues, we guarantee a response within 24 hours to resolve the issue as quickly as possible
Contact Person: Ellen
Tel: 15821287672
