TOBO STEEL GROUP CHINA
 |
| Place of Origin: | China |
| Brand Name: | TOBO |
| Certification: | CE/ISO |
| Model Number: | / |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | 1-100 |
| Packaging Details: | Inner package:plastic bag sealed package Outer package:carton package or wooden case package The lettering, nameplate, certificate for cryogenic valves are available We can customize the package for globe valve; |
| Delivery Time: | 3-5 days |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000pcs/month |
| Size: | DN50 ~ DN 2000 | Pressure: | PN10 , 125lbs |
|---|---|---|---|
| Used For: | Tap-Water / Drink Water / Sea Water / Oil / Gas | Key Word1: | Knife Gate Valve |
| Specification: | 2"~80", DN50~DN2000 | Body: | SS316 |
| HS Code: | 8481804090 | Thread Position Of Valve Rod: | Outside Gate Valve |
| High Light: | SS316 10 Inch Gate Valve,150 LBS 10 Inch Gate Valve,150 LBS Stainless Steel Knife Valve |
||

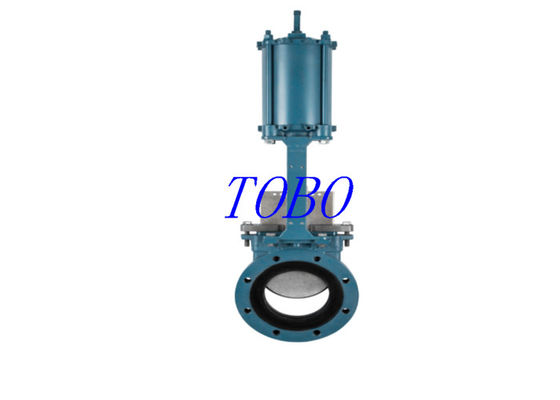

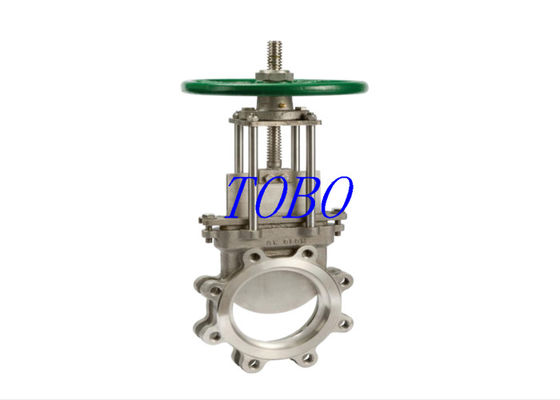

10" EPDM LUG Knife Gate Valve Stainless Steel Valve ANSI 150 LBS
1.Technical Data:
| Nominal Diameter DN(mm): | 50(2’’)~1200(48’’) |
| Nominal Pressure PN(MPa): | 0.6~1.6 (class150) |
| Testing Pressure Shell PN(MPa): | 1.5~2.4 |
| Testing Pressure Sealing PN(MPa): | 1.1~1.76 |
| Seal type | hard / soft (EPDM,NBR and polyurethane) |
| Leakage: hard seal: | Level D(liquid 0.1xDNmm);soft seal: Level A (zero leakage) |
2.Material could be:
| Part | Material |
| Body | CI |
| Seal Ring | NBR |
| Knife | Stainless steel 304 |
| Packing | PTFE |
| Yoke | A3 |
| Gland | WCB , ZL103 |
| Stem Nut | Brass |
| Stem | 316 |
| Bearing | ZChSnSb10-6 |
| Standard Element | Stainless steel 201 , 304 |
3.Application:
Gold mine power,ore tailing,paper or wood pilp,fibers,dust,chemical treatment sewage,sedimentation tanks,ores,slag,asphalt,bin outlets,fruit,grain,grout,waste water from slaughterhouse,pneumatic transportation pipelines or beer brewage media.
water supply and draininage or deslagging of power plants(applicable for high temperature≤540°c and superhigh temputerature ≤ 900°c.
4.Product charateristics:
It's characterized by its compact design,being space-effective,low price,easy installation, complete protection from abrasion and seizure,user-friendly maintenance and operation,long service life and free actuator options.
1.Packing:plywood cases or according to the customers' requirements
BODY:
· Cast-in guide claws at the port bottom for gate fixture, instead of a groove, eliminates potential valve shutoff clogging while providing tighter seal. The guide claws also push gate to seat for tight seal in closed position.
· Integral body design ensures easy assembly and 0 shell leakage.
· Full port design minimizes pressure drop and maximize flow capacity.
· PTFE resilient points against gate eliminate metal-metal contact between gate and bo dy.
SEAT:
· Side-entry seat is replaceable, reducing the cost of maintenance.
· L-shape seat retainer locks seat into valve body and covers seat side to prevent direct flow flushing.
GATE:
· Beveled knife edge provides strong cutting stress and tight sealing.
· Gate thickness can be increased to meet higher pressure.
· Gate surface is well polished at both sides for tight seal and less jamming.
· Gate is hard chrome coated for metal sealing valve.
STEM:
· Stem cover is available to ensure long service life for stem.
· Two thrust bearings minimizes torque for operation.
· Grease nipple is available to ease bearing lubrication.
|
Product Name
|
Material
|
|
Valve Body
|
Ductile iron, Carbon steel, Stainless steel
|
|
Knife
|
Stainless steel
|
|
Stem
|
Stainless steel
|
|
Handwheel
|
Cast iron
|
|
Sealing
|
NBR/EPDM/PTFE or Metal Seat
|
