Place of Origin: | China |
Brand Name: | TOBO |
Certification: | ISO |
Model Number: | / |
Minimum Order Quantity: | 1pc |
---|---|
Price: | 1USD |
Packaging Details: | Plywood Case |
Delivery Time: | 10DAYS |
Supply Ability: | 30000PCS/WEEK |
Payment Terms: | T/T, Western Union, MoneyGram | Packaging Details: | Plywood Case |
---|---|---|---|
Body: | WCB, LCB, WC6, WC9, C5, CF8M, 4A,5A,C95800,etc | Screen: | SS304,SS316,SS31803,etc |
Temperature: | -25℃~250℃ | Gasket: | PTFE,RPTFE,Graphite,etc |
Certification: | API ISO CE | Medium: | Water.Oil.gas |
Price: | Negotiable | Minimum Order: | 1PC |
Highlight: | ASME B16.34 Stainless Steel Y Strainer,A351 Flange Y StrainerFlange Y Strainer,CF8M Flange Y Strainer |
1: General Design Features
Strainer is a device through which is passed for purification,filtering or separation from solid matter.
the strainers usually at the end of a suction pipe of pump,used to prevent solid bodies from mixing in a liquid stream or flowline.
Valve Range: Size 2-36Inch (DN50-DN900), Rating Class 150LB-1500Lb
Valve Applications:Oil Industry, Chemical, Power Station, Refinery, Water Treatment,Architecture,Metallurgy,Other
Design Standard: ASME B 16.34,Other
Face-to-Face Standard: ASME B16.10,MFR,Other
Connection Standard: Flange per ASME B16.5/ASME B16.47(NPS≥26”), BW per ASME B16.25,SW per ASME B16.11,NPT per ASME B1.20.1,Other
Testing Standard: API 598, Other
Type of Bore: Full Bore,Reduced Bore,Other
Valve Material: Cast Steel, Forged Steel,Iron,Other
Valve Operation: N/A
Connection Type: FF, RF, RTJ, BW,Other
Body Type: Y type,Basket type,Other
Other Features: Hard Facing,Drain and Vent Connection,Other
Features
1. Strainer is a kind of equipment that eliminates a small amount of impurities from liquid and gases. It can protect normal operation to compressor, pump and other equipment as well as instruments, also it can upgrade liquid and gases quality. So it can be widely used in petroleum, chemical industry, chemical fibre, pharmaceutical and food industry etc.
2. Y Type Strainer Features
A compact type strainer with low fluid resistance and requiring less installation space.
The Y type strainer can be widely used for removing dirt and dust from pipelines.
Lightweight, compact, and designed for easy piping, the Y type strainer comes in a wide variety of structures, shapes, and mesh types.
Strainer Applicable Medium
A) Weak corrosively medium for petrochemical production such as water, ammonia, oil and hydrocarbon products etc.
B) Corrosive medium for chemical products such as sodium hydrate, caustic soda, metric acid, acetic acid etc.
C) Low temperature medium for refrigeration, the refrigerant such as liquefied methane, liquefied ammonia, oxygen etc.
D) Industry hygiene medium in light industry, foodstuff and pharmacy such as beer, drink, beverage, dairy products etc.
Strainer Main Technical Paremeters
A) Operating Temperature(oC):CS:-30~380oC, SS: -80~450oC;
B) Operating Pressure(Mpa): 0.6 ~ 5.0 Mpa
C) Body Material: Carbon Steel, Stainless Steel etc.
D) Seal Material : Asbestos, NBR, PTFE, Graphite+SS.
E) Strainer Element Material: Stainless steel, Duplex Stainless Steel
F) Screen mesh from 10 mesh to 400 mesh,also we can produce according to customer's repuinement.
G) Shell inspection And Test: ISO5208 / API598

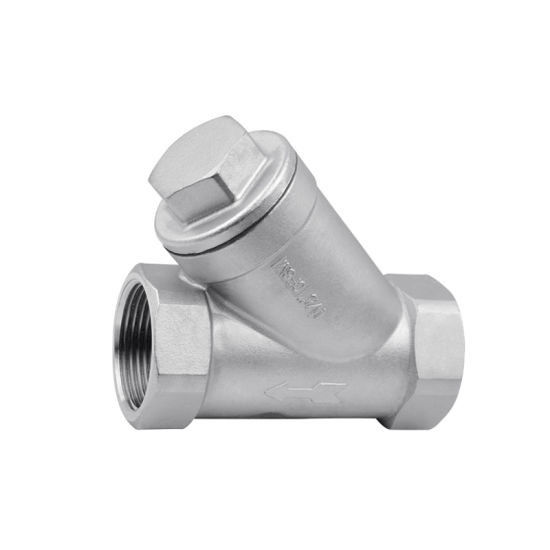

Product Name | Y Type Strainer,Screwed Cover,CF8M material,NPT Connection,DN65,800WOG |
1. Material | Stainless Steel 304/316/304L/316L ( CF8/CF8M/CF3/CF3M) |
2. Size | 1/4''~4'' ( DN8~DN100) |
3.Certificate | ISO9001 & CE |
4. Port | Full Port |
5. Working Pressure | 800WOG |
6. Connection Ends | NPT/BSP/BSPT/DIN259/DIN2999 |
7. Working Temp. | -20~220ºC |
8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
9. Seal | Metal,PTFE |
10. Locking | Option |
11. Inspection & Testing | According to API598 |
Shipment | |
Delivery Time | 25~35 Days |
Package | Standard Exporting Plywood Case |
Shipping Port | Ningbo/Shanghai, China |
Shipping Terms | EXW, FOB, CFR, CIF, etc. |
Payment Terms | T/T, Western Union, PayPal, etc. |
30% prepayment, 70% balance paid before shippment | |
Warranty | 18 Months after leaving factory |
Advantage | OEM/ODM is applicable |
Others | We also manufacture Flange Ball Valve, Gate Valve, Globe Valve, Check Valve, Butterfly Valve & Y Strainer |
