Forged Steel Pressure Safety Relief Valves AISI 4130 SAE 4140 F22 F11 F51 F6NM F44 F53

Product Details:

Place of Origin:	China
Brand Name:	TOBO
Certification:	ISO
Model Number:	/

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	12USD/PC
Packaging Details:	plywood cases
Delivery Time:	15 days
Payment Terms:	D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	30000PCS/Month

Contact Now

Detailed Product Description

Type:	GA901/902/911/912	Max. Temperature:	121℃
Sealing Material:	EPDM	Medium:	Liquid, Gas
Butt Weld End Dimension:	According To DIN, SMS, 3A, ISO, BS	Nominal Diameter:	20/32mm-150/250mm
Valve Body:	304, Or 316L Stainless Steel	Working Temp:	-10~450 Deg
Nominal Pressure:	PN40/16	Butt Weld Connection Standard:	DIN11850, DIN11866, EN10367, ISO1127, ISO2037
High Light:	F53 Pressure Safety Relief Valves , F6NM Safety Relief Valves , F11 High Pressure Safety Valve

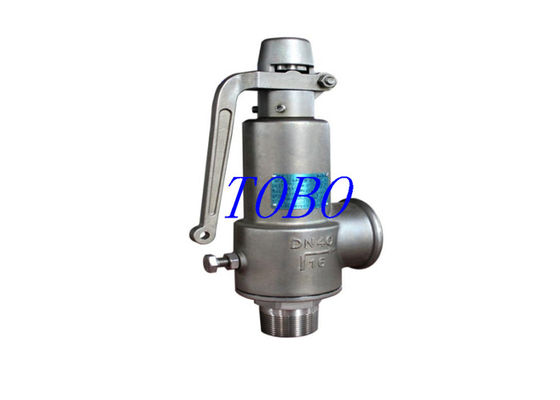

AISI 4130 SAE 4140 F22 F11 F51 F6NM F44 F53 Forged Forging Steel pressure safety relief valves

Safety valves were first used on steam boilers during the industrial revolution. Early boilers without them were prone to accidental Explosion.
Safety valves also evolved to protect equipment such as pressure vessel (fired or not) and heat exchangers. Safety valve term should be limited to compressible fluid application (gas, vapor, steam).

The two general types of protection encountered in industry are thermal protection and flow protection.

For liquid-packed vessels, thermal relief valves are generally characterized by the relatively small size of the safety valve necessary to provide protection from excess pressure caused by thermal expansion. In this case a small valve is adequate because most liquids are nearly incompressible, and so a relatively small amount of fluid discharged through the relief valve will produce a substantial reduction in pressure.

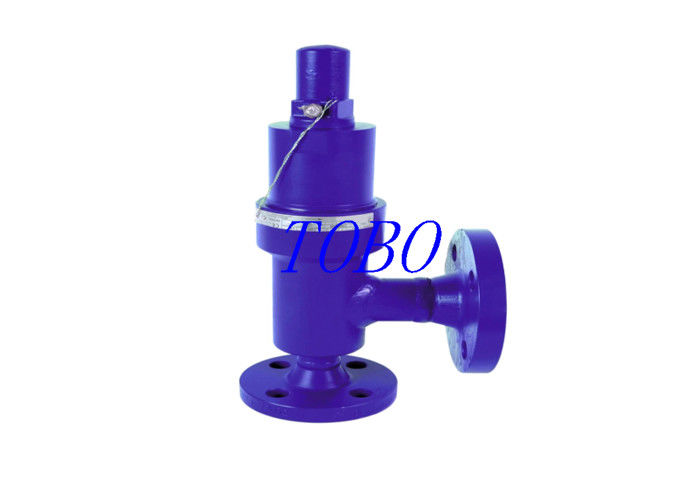

GAA48SB High Temperature and High Pressure Safety Valve Material

NO	Parts	Cast Steell Material	WC6 Material	WC9 Material
1	Body	WCB	ZG1Cr5Mo	ZG15Cr1MoV
2	Seat	2Cr13	1Cr18Ni9Ti	12Cr1MoVA
3	Adjusting Ring	2Cr13	1Cr18Ni9Ti	1Cr18Ni9Ti
4	Disc	2Cr13	17-4PH	17-4PH
5	Guiding Sleeve	2Cr13	1Cr18Ni9Ti	1Cr18Ni9Ti
6	Heat Radiator	ZG230-450	ZG230-450	ZG230-450
7	Bonnet	ZG230-450	ZG230-450	ZG230-450
8	Spring	50CrVA	50CrVA	50CrVA

GA48SB High Temperature and High Pressure Safety Valve Dimension.

Model	DN	do	D	K	g	g1	b	f	f1	Z-φd	DN	D1	K1	g3	g2	b1	f	f1	Zr-φd1	L	L1	≈H
GAA48Y-16C GAA48Y-16I GAA48Y-16V	40	25	150	110		85	18	3		4-18	50	165	125		100	20	3		4-18	120	115	540
	50	32	165	125		100	20	3		4-18	65	185	145		120	20	3		4-18	135	120	618
	65	40	185	145		120	20	3		4-18	80	200	160		135	20	3		8-18	160	140	710
	80	50	200	160		135	20	3		8-18	100	220	180		155	22	3		8-18	160	150	730
	100	65	220	180		155	20	3		8-18	150	285	240		210	24	3		8-23	225	175	892
	150	100	285	240		210	24	3		8-23	200	340	295		265	26	3		12-23	240	235	1135
	200	125	340	295		165	26	3		12-23	250	405	355		320	30	3		12-26	290	210	1135
GAA48Y-40 GAA48Y-40I GAA48Y-40V	25	16	115	85	58	65	16	2	4	4-14	32	140	100		78	18	2		4-18	110	95	429
	32	20	140	100	66	78	18	2	4	4-18	40	150	110		85	18	3		4-18	115	100	421
	40	25	150	110	76	85	18	3	4	4-18	50	165	125		100	20	3		4-18	120	115	540
	50	32	165	125	88	100	20	3	4	4-18	65	165	145		120	20	3		4-18	135	120	618
	65	40	185	145	110	120	22	3	4	8-18	80	200	160		135	20	3		8-18	160	140	710
	80	50	200	160	121	135	22	3	4	8-18	100	220	180		155	22	3		8-18	160	150	730
	100	65	235	190	150	160	24	3	4.5	8-23	150	285	240		210	24<%

6.4 10.0	25	15	32	110	100
	32	20	40	130	110
	40	25	50	135	120
	50	32	65	160	130
	50	32	80	160	145
	65	40	80	175	160
	80	50/40	100	175	160
	100	65/50	125	220	200
	100	50	150	255	225
	150	100/80	200	280	280
	200	100	250	300	300
16.0	50	32	80	160	145
16.0	80	40	150	230	210
