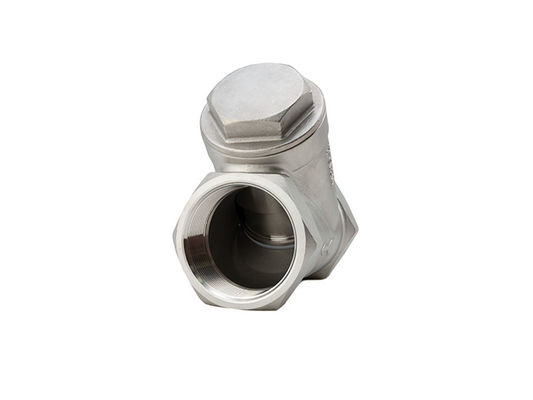

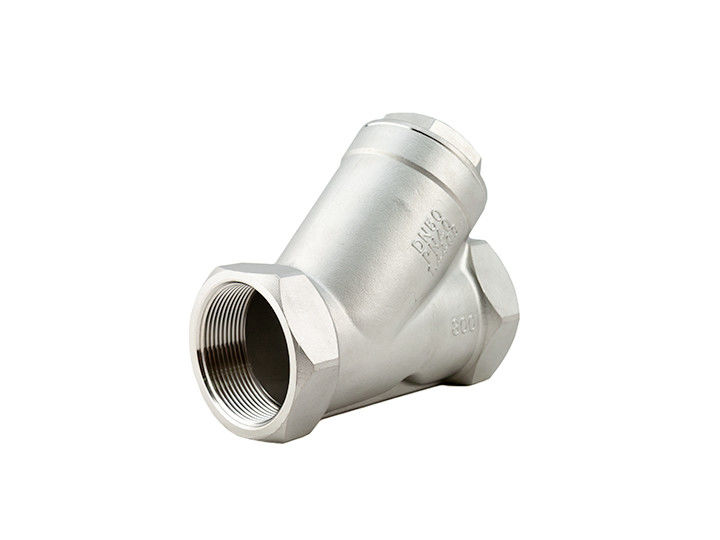

56Bar 2'' BSP End Y Type Check Valve , 316SS Angle Seat Check Valve

56Bar 2'' BSP End Y Type Check Valve , 316SS Angle Seat Check Valve

  • 56Bar 2'' BSP End Y Type Check Valve , 316SS Angle Seat Check Valve
  • 56Bar 2'' BSP End Y Type Check Valve , 316SS Angle Seat Check Valve
56Bar 2'' BSP End Y Type Check Valve , 316SS Angle Seat Check Valve
Product Details:
Place of Origin: China
Brand Name: TOBO
Certification: ISO 9001/ API 6D
Model Number: Y-Type Angle Seated Spring Check Valve
Payment & Shipping Terms:
Minimum Order Quantity: 1Pcs
Price: Negotiation
Packaging Details: Usually packing by plywood case suit for sea delivery
Delivery Time: 10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 Pcs Per Month
Contact Now
Detailed Product Description
Name: Y-Type Angle Seated Spring Check Valve Material: SS316
Application: Oil, Gas, Water, Steam Etc Advantage: Quiet
Temperature: -20℃ 〜 160℃ Pressure: 56Bar
Connection: BSP End Size: 2''
High Light:

56Bar Y Type Check Valve

,

316SS Angle Seat Check Valve

,

56Bar Angle Seat Check Valve

316SS 56Bar 2'' BSP End Y-Type Angle Seated Spring Check Valve



Quick Details



What is a Check Valve?



The valve that used to prevent backflow in a piping system is known as a check valve. It is also known as

a non-return valve or NRV. The pressure of the fluid passing through a pipeline opens the valve, while any

reversal of flow will close the valve.

It allows full unobstructed flow and automatically shuts as pressure decreases. The exact operation will vary

depending on the mechanism of the valve.



Product Name

Y-Type Spring Check Valve

Material

stainless steel

Color

nickel white

Standard

DIN GB JIS ANSI

Class

150LB(16)~600LB(2500)

Body and Ball Material

CF8 CF3 CF8M CF3M WCB PVC UPVC PP

Thread

-29~150(PTFE), -29~200( PTFE+GLASS), -29~300(J2 PPL)

Steam Seat and Gasket

PTFE



Y-type spring check valve, full port, 316SS, PTFE seat, 304SS spring, BSP ends. Rated to 800 psi (56 bar)



Size- 1/4″ (DN8) – 2″ (DN50)



* Options: NPT end connections.



Stainless Steel Check Valve Standards


Face to face dimensions as ANSI B16.10


End flange dimension as ANSI B16.5


Pressure-temperature ratings as ANSI B16.34


Pressure test as API 598


Applicable Medium: water ,gas,oil,and other causticity medium.



Stainless Steel Check Valve Application:



Valve is used for preventing the back-going of medium in pipelines and equipments, and the pressure of

medium will bring the result of opening and closing automatically.

When the medium is back-going, valve disc will automaticaly closed to avoid accidents.



Stainless Steel Check Valve Test Pressure



Test Item

Shell Test

Seal Test

Back Seal Test

Air Seal Test

Medium

Water

Air

Unit

MPa

lbf/in2

MPa

lbf/in2

MPa

lbf/in2

MPa

lbf/in2

Pressure (Class)

150

3.1

450

2.2

315

2.2

315

0.5-0.7

60-100

300

7.8

1125

5.6

815

5.6

815

400

10.3

1500

7.6

1100

7.6

1100

600

15.3

2225

11.2

1630

11.2

1630

900

23.1

3350

16.8

2440

16.8

2440

1500

38.4

5575

28.1

4080

28.1

4080



Types of Valves



The type of disk will decide the type of valve. Most common types of Check valves are

  • Swing Type.

    • Top Hinged

    • Tilting disk

  • Lift Type

    • Piston Type

    • Ball type

  • Dual Plate Type

  • Stop Check Valve



The disc in a swing type valve is unguided as it fully opens or closes. This Valve operates when there is flow

in the line and get fully closed when there is no flow. Turbulence and pressure drop in the valve is very low.

Disk and seat designs can be of metal to metal or metal to composite.

The angle between the seat and the vertical plane is known as the seating angle and varies from 0 to 45 degrees.

Usually, the seat angles are in the range of 5 to 7 degrees. Larger seat angles reduce the disc travel, resulting in

quick closing, thus minimizing the possibility of water hammer. A vertical seat has a 0-degree angle.


The swing type valve allows full, unobstructed flow and automatically closes as pressure decreases. Usually installed

in combination with gate valves because they provide relatively free flow combinations.

A basic swing type valve consists of a valve body, a bonnet, and a disk that is connected to a hinge.



Packing Details:



We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.


Delivery Details: According to the order, 7~60days
