1/2' 12' Ductile Iron Grooved Pipe Fitting

Product Details:

Place of Origin:	CHINA
Brand Name:	TOBO
Certification:	ISO
Model Number:	/

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	51USD
Packaging Details:	Usually bubble pack for each valve within carton box or plywood case, or special packaging upon customer requirements.
Delivery Time:	10-15DAYS
Payment Terms:	D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

Detailed Product Description

Connection:	Grooved	Head Code:	Square
Size:	1/2' ~ 12'	Pressure::	300PSI
Thread:	BSPP BSPT NPT	Product Name:	Rigid Coupling
Technics::	Casting	Body Material::	Ductile Cast Iron
Place Of Origin:	Shanghai China	Standard::	ISO
High Light:	Ductile Iron Grooved Pipe Fitting , ISO Grooved Pipe Fitting , 300PSI Rigid And Flexible Coupling

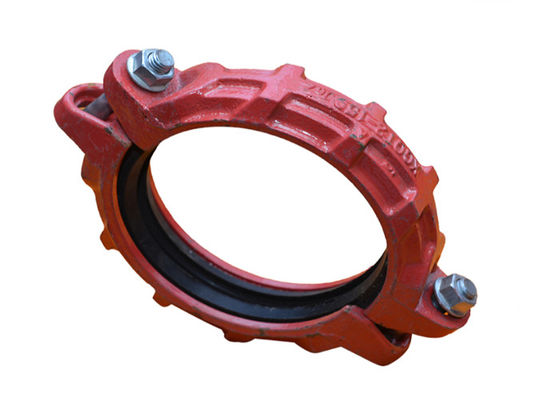

1/2' ~ 12'Ductile Iron Grooved Pipe Fitting 1 1/2'' Rigid Coupling

standard of ASME B16.10M-2000.Schedule 10-40 pipe.
please see the item of OUTSIDE DIAMETER for inference if you adopt other standard.
You are welcome to contact our Export BussinessDivision.

1 1/2''INCH 48.3MM Rigid Coupling

This couplings available where moderate pressures are expected or weight considerations are a factor.
This style couplings are designed with cross-ribbed construction to provide strong component for pressure piping systems and usually used in fire protection,feed water,oil or gas and ect.

GASKET DATA

Material Composition	Applocable temperature	Application Scops
EPDM	-34℃-+150℃	Cold and hot water non-oil gas diluted acid,alkaline salt multichemicals(free ofhydrocarbon) Oil-like mediums are forbidden
Silicon rubber	-40℃-+177℃	Drinking water,hot water, high-temperature air some high-temperature chemicals, Oil-like mediums are forbidden.
Nir rile rubber	-29℃-+82℃	Oil,Oil-gas,mineral oil, vegetable oil,hot water, water with temperature of not than 65℃ are forbidden
Notes: 1.Gaslet rings of different materials will be used for different liquid mediums. 2.Products can be supplied as per Customers requirments.

Main Products	Grooved pipe fittings (Elbow, Couplings Tee, Cross, Flange, Cap, Reducer, etc.)
Material	Ductile Iron ASTM A536 65-45-12/QT450-10
Technics	Casting
Packaging	Carton, Wooden
Application	Fire protection system, oil field, plumbing, water supply, mining , HAVC, power plant and other municipal application.
Advantages	Easy and fast assemble; Minimal equipments are required; Free of welding, no pollution ; Lower installation costs.

Material	Malleable Iron,Ductile iron,Grey iron
Standard	Thread:BSPT(ISO 7/1),NPT(ANSI B1.20.1)
	Dimension: ASME B16.3,ASME B16.14,ASME B16.39, BS EN 10242,BS143,BS1256 ISO 49,DIN 2985
Chemical Propety	(C %2.4-2.9),(Si %1.4-1.9),(Mn %0.4-0.65),(P% <0.1),(S% <0.2%)
Physical Property	Tensile strength>=350Mpa,Elongation>=10%,Hardness<=150HB
Testing Pressure	2.5MPa
Working Pressure	1.6MPa
Head shape	Beaded or Banded
Surface	Galvanized/Black
Color	Expoxy power:Red,White,Blue,Yellow,Green
Model	Elbow,Tees,Crosses,Bends,Unions,Bushing,Lateral Braches,Sockets,Nipples,Hexagon/Round,Caps,Plugs,Locknuts,Flanges,Side outlet Tees,Side Outlet Elbows and etc
Connection	Male,Female threaded
Shape	Equal,Reducing
Certificate	FM,UL,CE,AS4020,BSI,ISO9001
Application	Suitable for fire piping system, air, steam, water,gas, oil , home decoration , equipment and so on
	Buyer's drawing or designs are available
Package	Cartons without pallet
	Cartons with pallet
	Double woven bags
	Or as buyer's requirements
Delivery Details	According to the quantities and specifications of each order
	Normal delivery times is from 30 to 45 days after receiving the deposit
