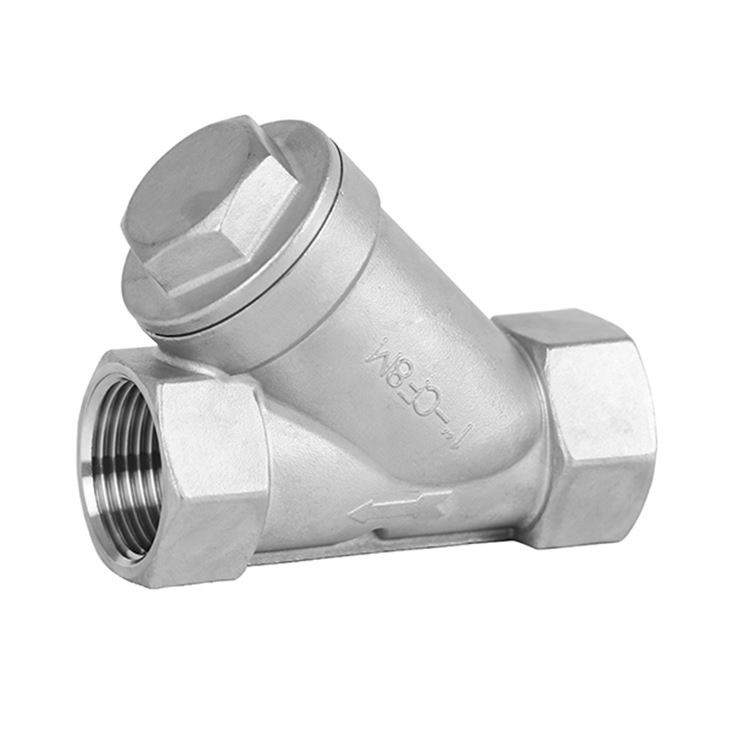

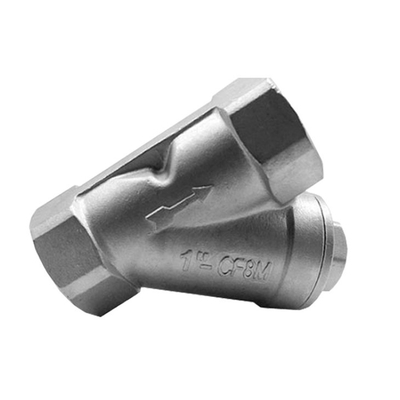

Stainless Steel Y Strainer A351 Gr.CF8M 1" PN10 FNPT Threaded

Stainless Steel Y Strainer A351 Gr.CF8M 1" PN10 FNPT Threaded

  • Stainless Steel Y Strainer A351 Gr.CF8M 1" PN10 FNPT Threaded
  • Stainless Steel Y Strainer A351 Gr.CF8M 1" PN10 FNPT Threaded
Stainless Steel Y Strainer A351 Gr.CF8M 1" PN10 FNPT Threaded
Product Details:
Place of Origin: China
Brand Name: TOBO
Certification: SGS, BV, ISO9001
Model Number: A351 Gr.CF8M
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As per your requirement
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Material: A351 Gr.CF8M Shape: Y Shape
Structure: Control Pressure: PN10
End Connection: Screwed End Application: General
Thread: FNPT Size: 1"
High Light:

A351 Stainless Steel Y Strainer

,

FNPT Threaded Stainless Steel Y Strainer

,

PN10 Stainless Steel Y Strainer

Stainless Steel A351 Gr.CF8M 1/2" 300# FNPT Threaded "Y" Strainer​



Quick Details



Product Name: Stainless Steel Y Strainer
Standard: ANSI B16.34, ASME, DIN, GB
Investment Casting: Dewaxied precision casting
Product Certification: PED97/23/EC Approved
Casting Approved: AD2000-W0
Thread Type: ASME B1.20.1, BS21.0, DIN2999/259, ISO228-1, JIS B 0203, ISO7/1
Inspection Testing: API598, EN12266



Application:


Applicable Temperature: ≤425 ºC

Main Materials: WCB/CF8/CF8M/CF3/CF3M

Applicable Medium: Water / Oil / Gas / Causticity Medium

Pressure Rating: PN10-PN100, 150LB-1500LB

Size Range: 1/4" ~ 4"(DN6-DN100)



Description

Product Name

Y type female thread strainer

Modle

GY11W-16P

Nominal diameter(DN)mm

1/2-4"

Working pressure

800WOG

Mesh

CF8M ,CF8,WCB

Design standard

DIN .APL.GB

Body

stainless steel

Gasket

PTFE/RPTFE

Applicable Media

Water,Oil,Gas and Corrosive Liquid

Temperature Applicable

(-30°C-280°C)

Material

SS316 .SS304 .

Threaded standard

NPT /BSPT /BSP /DIN

End connection

Threaded

Driven mode

Manual



Product Introduction



China Y Strainer manufacturer and supplier, we provide Y Strainer to overseas buyers at most competitive

price with good quality and on-time delivery.

The Y Strainer from Hebei Sinostar adopts stainless steel double layers mesh structure, which is strong and durable,

low flow resistance, easy to discharge, large amount of pollution and so on.



Stainless Steel Y Strainer A351 Gr.CF8M 1" PN10 FNPT Threaded 0



Item Designation Matrial
1 BODY CF8/CF8M
2 SCREEN SUS304
3 GASKET PTFE
4 BONNET CF8/CF8M
5 DISCHARGE PLUG CF8/CF8M



Dimension Table



Size &

Item

1/4" 3/8" 1/2" 3/4" 1" 11/4" 11/2" 2" 21/2" 3"
D 12 12 15 20 25 32 40 50 65 76
H2 42 42 42 51 65 66 75 86 112 123
L 65 65 65 80 90 105 120 138 183 198



Y Strainer Design



As it's name implies, a Y strainer is shaped like a “Y” and is used to filter, or strain, out particulates  from steam, gas or liquid. This mechanical straining process is made possible via a filter element comprised of mesh, perforated metal, or a wedge wire straining element. The most common kind of straining element is a wire mesh. Some also include “blow-off valves” that make the cleaning process easier in applications with more substantial dirt blowing. The strainer itself has a compact, Y shaped design. The Y shape has better flow characteristics

than for example a T shaped strainer, because the fluid flows through the filter with less change of direction.



Why Use a Y Strainer?



In general, Y strainers are critical anywhere clean fluids are required. While clean fluids can help maximize the reliability

and lifespan of any mechanical system, they're especially important with solenoid valves. This is because solenoid valves

are very sensitive to dirt and will only function properly with clean liquids or air. If any solids enter the stream, it can disrupt

and even damage the entire system. Therefore, a Y strainer is a great complimentary component. In addition to protecting

the performance of solenoid valves, they also help safeguard other types of mechanical equipment, including:



  • Pumps

  • Turbines

  • Spray nozzles

  • Heat exchangers

  • Condensers

  • Steam traps

  • Meters



A simple Y strainer can keep these components, which are some of the most valuable and expensive parts of the  pipeline, protected from the presences of pipe scale, rust, sediment or any other kind of extraneous debris.

Y strainers are available in a myriad of designs (and connection types) that can accommodate any industry or application.



Features:



Adopt stainless steel double layers mesh structure, strong and durable, low flow resistance, easy to discharge,  large amount of pollution and so on.
The body material is stainless steel and is mainly used in small diameter pipe equipment. Easy to install and disassemble,  reliable discharge performance It is mainly used in water, steam and other media, convenient to use and maintain. It is an indispensable device for the piping system of conveying medium, usually installed in the inlet end of pressure reducing valve,

relief valve and fixed water level valve.



Advantages Of Stainless Steel Y Strainer



1. The Y strainer is mainly used in small diameter pipe equipment.

2. Easy to install and disassemble, reliable discharge performance.

3. It is mainly used in water, steam and other media, convenient to use and maintain.

4. Y-strainer is an indispensable device for the piping system of conveying medium, usually installed in the inlet end of pressure reducing valve, relief valve and fixed water level valve.

5. Suitable for full range of liquids and gas, water, air and some corrosive liquid.



Packing Details:



We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.


Delivery Details: According to the order, 7~60days
