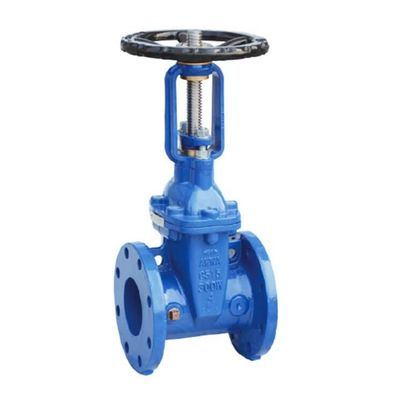

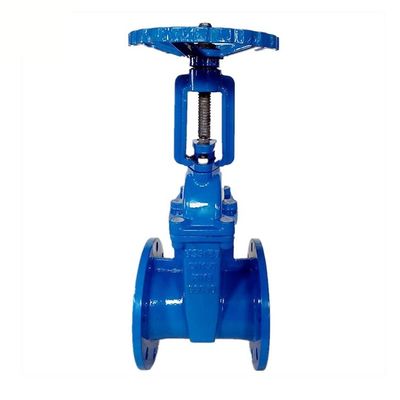

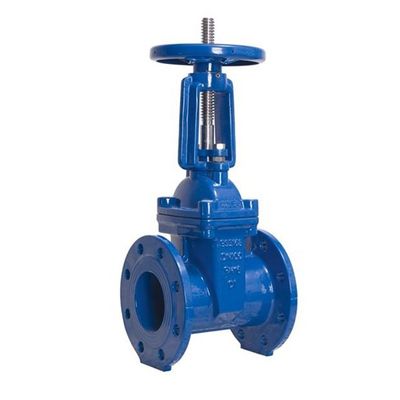

Astm A216 Wcb Class 150 Cast Steel Gate Valve Rf 1-24" Face To Face Din3202 F5

Astm A216 Wcb Class 150 Cast Steel Gate Valve Rf 1-24" Face To Face Din3202 F5

  • Astm A216 Wcb Class 150 Cast Steel Gate Valve Rf 1-24" Face To Face Din3202 F5
  • Astm A216 Wcb Class 150 Cast Steel Gate Valve Rf 1-24" Face To Face Din3202 F5
  • Astm A216 Wcb Class 150 Cast Steel Gate Valve Rf 1-24" Face To Face Din3202 F5
Astm A216 Wcb Class 150 Cast Steel Gate Valve Rf 1-24" Face To Face Din3202 F5
Product Details:
Place of Origin: China
Brand Name: TOBO
Certification: CE/ISO
Model Number: Gate Valve
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Inner package:plastic bag sealed package Outer package:carton package or wooden case package The lettering, nameplate, certificate for cryogenic valves are available We can customize the package for globe valve;
Delivery Time: 3-5 days
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000pcs/month
Contact Now
Detailed Product Description
Name: API Forged Steel Gate Valve 1 Type: Resilient Bolted Stem
Body: Cast Iron End Connection: Flange End
Applications: Air, Fuel Gas, Feedwater, Steam Face To Face: ASME B16.10
Temperature: High Temperature Size: DN100
High Light:

Wcb Class 150 Steel Gate Valve

,

Astm A216 Stainless Steel Gate Valve

,

Din3202 Stainless Steel Gate Valve





Specification
Design Standard: DIN3352
Face to Face: DIN3202 F5
Testing Conform to DIN3230
Flange Drilling : DIN2532,DIN2533



Astm A216 Wcb Class 150 Cast Steel Gate Valve Rf 1-24" Face To Face Din3202 F5 0

Body GS-C25 1.4308
Disc CG-C25 1.4308 1.4408 Monel
Stem 13Cr 1.4308 1.4408 Monel F304
Wedge Disc
Sealing Face
13Cr 13Cr STL 1.4308 STL 1.4408 STL Monel 1.4308 1.4308 STL
Seat Ring
Swaling Face
13Cr STL STL 1.4308 STL 1.4408 STL Monel 1.4308 STL STL
Body 1.4408 1.4308 1.4301
Disc
Stem 1.4408 1.4308 1.4301
Wedge Disc
Sealing Face
1.4408 1.4408 STL 1.4306 1.4306 STL 1.4301 1.4301 STL
Seat Ring
Swaling Face
1.4408 STL STL 1.4306 STL STL 1.4301 STL STL



Pressure
(MPa)
PN1.6MPa
Size Mm 50 65 80 100 125 150 200 250 300 350 400 450 500 600
L 250 270 280 300 325 350 400 450 500 550 600 650 700 800
H 417 452 530 607 720 790 885 1014 1190 1350 1460 1630 1800 2200
W 200 280 280 300 350 350 400 450 500 600 600 650 700 800
Weight(Kg) 16 25 30 55 75 95 150 245 353 400 750 958 1063 1390

Pressure
(MPa)
PN2.5MPa
Size Mm 50 65 80 100 125 150 200 250 300 350 400 450 500 600
L 250 270 280 300 325 350 400 450 500 550 600 650 700 800
H 417 452 530 607 720 790 885 1014 1190 1350 1460 1630 1800 2200
W 200 280 280 300 350 350 400 450 500 600 600 650 700 800
Weight(Kg) 16 31 43 58 82 103 180 265 385 547 835 1050 1130 1500





What is Gate Valve?



A gate valve can be defined as a type of valve that used a gate or wedge type disk and the disk moves perpendicular to flow to start or stop the fluid flow in piping.

A gate valve is the most common type of valve used in any process plant. It is a linear motion valve used to start or stop fluid flow. In service, these valves are either in a fully open or fully closed position.

When the gate valve is fully open, the disk of a gate valve is completely removed from the flow. Therefore virtually no resistance to flow. Due to this very little pressure drops when fluid passes through a gate valve.

To achieve proper sealing, when the valve is fully closed, 360° surface contact is required between disk and seats.

Gate valves should not be used for regulation or throttling of flow because accurate control is not possible.

The high velocity of the flow in the partially open valve may cause erosion of the disc and seating surfaces and also creates vibration and noise.



Valve Type

CS / SS GATE VALVE - FL / BW

Design Std

BS EN ISO 10434 [BS 1414] / API 600 / API 602 / API 603/ASME B16.34

Size Range

40 DN to 400 DN [1 1/2” to 16”]

Body

[CS - ASTM A 216 Gr. WCB] [SS - ASTM A 351 Gr.CF8 / CF8M]

Trim

AISI 410 / 304 / 316

Seat / Wedge

13% Cr. Steel / AISI 410 / 304 / 316

Design Features

Bolted Bonnet, OS & YT, HW & Gear operated

Prorating

ASME - Class 150 / 300 / 600

Face to Face

ASME B 16.10 / EN 558 -1 / API 6D

End Connection

Flanged

ASME B16.5, CLASS 150 / 300 / 600

Butt weld

ASME B16.25

Testing Std.

BS EN 12266 - 1 [BS 6755-1] / API 598

Optional

Lantern Ring / indicator & Locking Device/ Renewable Seat / Stellite Hard facing / Jacketed Provision / RTJ Flanges / By Pass Arrangement / Higher Sizes / Special MOC: Austenitic and Duplex Stainless Steels



PN

DN

Size(mm)

L

D

D1

D2

B

N-φ

H

1.6MPa

25

160

115

85

65

14

4-14

275

32

180

135

100

78

16

4-18

280

40

200

145

110

85

16

4-18

330

50

230

160

125

100

16

4-18

350

65

290

180

145

120

18

4-18

370

80

310

195

160

135

20

8-18

400

100

350

215

180

155

20

8-18

415

125

400

245

210

185

22

8-18

460

150

480

280

240

210

24

8-23

510

200

550

335

295

265

26

12-23

710

250

650

405

355

320

30

12-25

786

300

750

460

410

375

30

12-25

925



Types of Gate Valves



There are three ways to classify the gate valve.

  1. Types of Disk

    1. Solid taper wedge

    2. Flexible wedge

    3. Split wedge or Parallel disks Valve

  2. Types of Body Bonnet Joint

    1. Screwed Bonnet

    2. Bolted-Bonnet

    3. Welded-Bonnet

    4. Pressure-Seal Bonnet

  3. Types of Stem movement

    1. Rising Stem or OS & Y Type (Outside Stem and Screw Type)

    2. Non-rising Stem type

Features:



● Flat-bottomed seat traditional gate valves are usually deposited in the bottom groove of the valve due to external objects

such as stone, wood, cement, paper, debris, etc., after flushing the pipe with water. Cause cannot close tightly and form slack

phenomenon, soft-sealing gate valve using the same as the pipe at the bottom of the flat design, not easy to cause debris deposition,

the fluid flow unimpeded, the whole package glue valve plate is made of high quality rubber, within the whole outsourcing, domestic

first-class rubber vulcanization technology make the valve plate after vulcanization can ensure accurate geometry size, and rubber

and nodular cast iron gate connecting firm, not easy to fall off and elastic memory preferred.

● The corrosion resistant valve body is painted with powder and epoxy resin to prevent corrosion and rust of the valve body, and can

be used in sewage system.

● Not easily broken into traditional cast iron.



Astm A216 Wcb Class 150 Cast Steel Gate Valve Rf 1-24" Face To Face Din3202 F5 1
