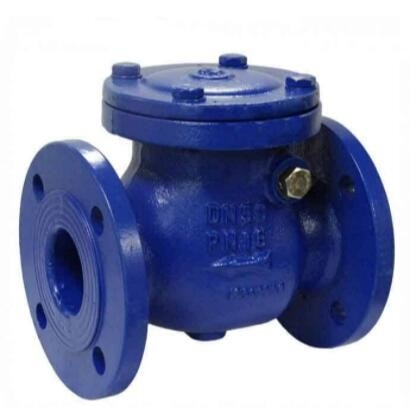

Swing Check Valve 6 Inch 1500lb Bolted Bonnet Flange Check Valve

SWING CHECK VALVE 6INCH 1500LB BOLTED BONNET FLANGE CHECK VALVE

Check valves are automatic valves that open with forward flow and close with reverse flow.

• Swing Type
• Working pressure: 200psi WOG
• Body: ASTM A351 Gr. CF8M
• Disc: ASTM A351 Gr. CF8M
• Packing: PTFE
• End Connections: Female NPT Threaded

Details:
Size: DN80
Pressure: PN25
Body/Bonnet: A216 WCB
Disc:A216 WCB+13Cr
Seat: A105+13Cr
Bolted Bonnet Design

The pressure of the fluid passing through a system opens the valve, while any reversal of flow will close the valve. Exact operation will vary depending on the type of Check valve mechanism. Most common types of Check valves are swing, lift (piston and ball), butterfly, stop and tilting-disk.


Specifications:



Standards:


Types of Check valves


Swing Check valve
A basic swing Check valve consists of a valve body, a bonnet, and a disk that is connected to a hinge. The disk swings away from the valve-seat to allow flow in the forward direction, and returns to valve-seat when upstream flow is stopped, to prevent backflow.

The disc in a swing type Check valve is unguided as it fully opens or closes. There are many disk and seat designs available, in order to meet the requirements of different applications. The valve allows full, unobstructed flow and automatically closes as pressure decreases. These valves are fully closed when flow reaches zero, in order to prevent backflow. Turbulence and pressure drop in the valve are very low.


Lift Check valve
The seat design of a lift-Check valve is similar to a Globe valve. The disc is usually in the form of a piston or a ball.

Lift Check valves are particularly suitable for high-pressure service where velocity of flow is high. In lift Check valves, the disc is precisely guided and fits perfectly into the dashpot. Lift Check valves are suitable for installation in horizontal or vertical pipe-lines with upward flow.

Flow to lift Check valves must always enter below the seat. As the flow enters, the piston or ball is raised within guides from the seat by the pressure of the upward flow. When the flow stops or reverses, the piston or ball is forced onto the seat of the valve by both the backflow and gravity.



Features:


Swing type
Bolted bonnet
Anti-rotation disc
Renewable seat ring
Non-penetrate disc shaft
Horizontal service
