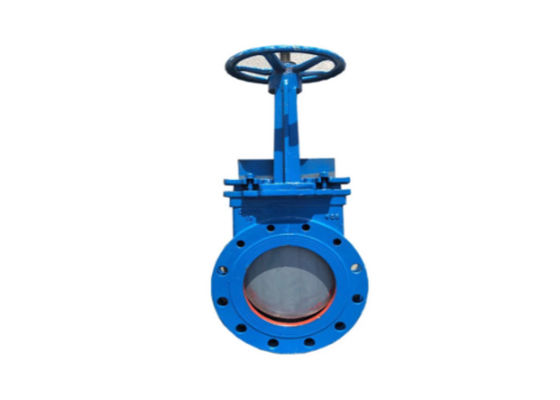

Non Rising Stem Ductile Iron Gate Valve / Mueller Resilient Wedge Gate Valve

Product Details:

Place of Origin:	CHINA
Brand Name:	TOBO
Certification:	ISO
Model Number:	/

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	39-40$
Packaging Details:	Valves are wrapped in plastic bubble sheet & in plywood boxes
Delivery Time:	15-20days
Payment Terms:	D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	208080pcs

Contact Now

Detailed Product Description

Name:	Wafer Knife Gate Valve	Size Range:	2inch To 24 Inch
Material:	GGG40/50; CF8; CF8M; 2205; 2507	Drive Mode:	Level
Presssure:	0.6MPa~2.5MPa	Temperature:	-38°C~1100°C
Sealing Material:	PTFE, Metal Seated	Flange Drilling:	ANSI B16.5, GB/T9113, JB/T79, HG, SH, JIS, DIN, NF, BS
High Light:	24 Inch Ductile Iron Gate Valve , Metal Seated Ductile Iron Gate Valve , Mueller Resilient Wedge Gate Valve

Non Rising Stem Ductile Iron Gate Valve / Mueller Resilient Wedge Gate Valve

Name: Non Rising Stem Ductile Iron Gate Valve / Mueller Resilient Wedge Gate Valve
Brand: TOBO
SKU: /
Price: 39 USD
Availability: InStock
Rating: 4.8 (158 reviews)

Detailed Product Description

Name:	Ductile Iron Gate Valve	Pressure:	PN10 / PN16
Temperature:	-20 ~ 120 C	Body:	Ductile Iron GGG40 / GGG 50
Other Name:	Mueller Resilient Wedge Gate Valve	Seat:	EPDM / NBR
High Light:	resilient seat gate valve , flanged gate valve

Non Rising Stem Ductile Iron Gate Valve / Mueller Resilient Wedge Gate Valve

General information
Rubber-coated shut-off wedge with sliding caps to reduce wear and tear and operation torques;
Maintenance free and corrosion resistant stem seal with O ring sealings;
Full passage, without contraction;
Bi-direction flow, tight in both directions;
Flange connection dimensions to EN 1092-2;
Body, cover and wedge made of ductile cast iron GGG40 according to DIN 1693;
Wedge fully vulcanized EPDM rubber;
Operating pressure: DN500 – DN600, PN10/PN16; DN700 – DN1200, PN10;
With self-locking gearbox, open and close limit stops and with position indicator;
Stem made of waste water resistant stainless steel grade 1.4401;
Replaceable stem nut made of zinc-free cast bronze;
Set for underground installation;

Ductile Iron Gate Valve Specifications :

NO	Part name	Material
1	Body	Ductile cast iron
2	Wedge	Ductile cast iron + EPDM
3	Stem nut	ZCuAl10Fe3 Gunmetal
4	Gasket	EPDM
5	Bonnet	Ductile cast iron
6	Gland gasket	ZCuAl10Fe3 Gunmetal
7	Stem	2Cr13 S.S.x 20Cr13
8	Gland	Ductile cast iron
9	Rubber wiper	EPDM/NBR
10	Hand wheel	Ductile cast iron

Ductile Iron Gate Valve APPLICABLE STANDARDS

⊙ American Standard
Design to ANSI/AWWA C509
Face to face dimension to ASME B16.10-2000(ISO 3 series)
Flange and drilling To SME/ANSI B16.42-1998
⊙ British Standard
Design to BS5163,BS5150
Face to face dimension to BS5163(ISO 3series,ISO19 series)
Flange and drilling To BS4504 part1(EN1092)
⊙ Germany Standard
Design to DIN3352
Face to face dimension to DIN3202(F4:ISO 14 series;F5: ISO 15 series)
Flange and drilling to BS EN1092

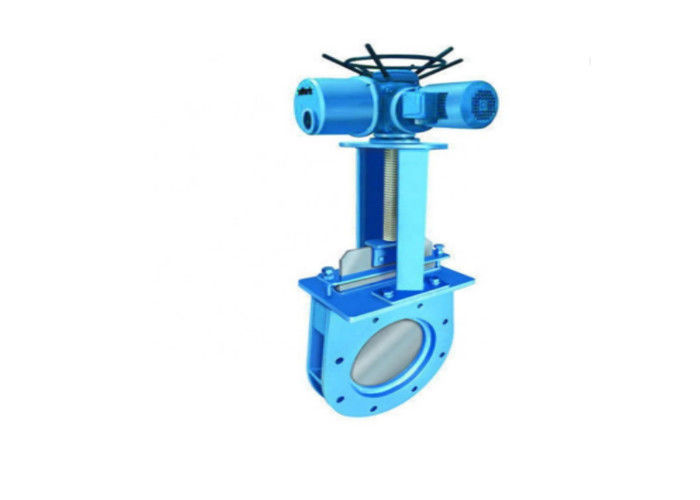

Non Rising Stem Ductile Iron Gate Valve / Mueller Resilient Wedge Gate Valve 0
