Micro Spring Lift Ball Check Valve Stainless Steel For Liquid Water JB/T8937

Micro Spring Lift Ball Check Valve Stainless Steel For Liquid Water JB/T8937

  • Micro Spring Lift Ball Check Valve Stainless Steel For Liquid Water JB/T8937
  • Micro Spring Lift Ball Check Valve Stainless Steel For Liquid Water JB/T8937
  • Micro Spring Lift Ball Check Valve Stainless Steel For Liquid Water JB/T8937
Micro Spring Lift Ball Check Valve Stainless Steel For Liquid Water JB/T8937
Product Details:
Place of Origin: China
Brand Name: TOBO
Certification: ISO 9001/ API 6D
Model Number: CF8M
Payment & Shipping Terms:
Minimum Order Quantity: 1Pcs
Price: Negotiation
Packaging Details: Usually packing by plywood case suit for sea delivery
Delivery Time: 10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 Pcs Per Month
Contact Now
Detailed Product Description
Product Name: Swing Check Valve Material: 316L
Application: Oil, Gas, Water, Steam Etc Advantage: Quiet
Temperature: -10~80 C Design: Wafer
Body: Stainless Steel Seat: Stainless Steel
High Light:

Micro Spring Lift Ball Check Valve

,

316L Stainless Steel Ball Check Valve

,

JB/T8937 Ball Check Valve

Micro Spring Lift Ball Check Valve Stainless Steel For Liquid Water JB/T8937

D
Detailed Product Description
Product Name: Slim Check Valve Application: Water , Oil, Gas, Etc.,
Size: DN15 ~ DN300 Pressure: PN16~PN40, 150 Lbs ~ 600lbs
Standard: API 6D/ ANSI 16.5 B/ JIS 20K/JIS 10K /DIN Temperature: -10~80 C
Body: Di /CS / WCB / SS Seat: DI / Stainless Steel/ 2Cr13
High Light:

vertical ball check valve

,

flanged ball check valve





Stainless Steel Disco Check Valve , Wafer Type , Spring Lift For Liquid Water



Application:

Valve is used for preventing the back-going of medium in pipelines and equipments, and the pressure of medium will bring the result of opening and closing automatically.

When the medium is back-going, valve disc will automaticaly closed to avoid accidents.



Standard:

Design: JB/T8937
  face to face: JB/T8937
  Flanged: JB/T74
  Test: JB/T9092-1999



Specification:

pressure PN(MPa)
1.6 2.5 4
Strength 2.4 3.8 6
seal 1.8 2.8 4.4
Body WCB(C) CF8(P) CF8M(R)
temperature ≤425 ≤100 ≤100
Medium water,steam,oil nitric acid acetum

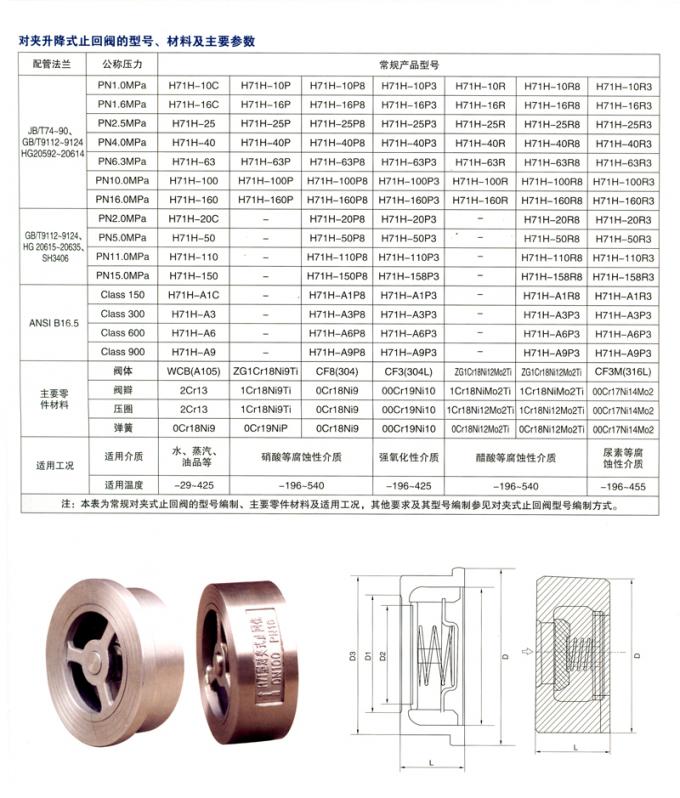

Deminsion:

DN(mm) L D
1.6 2.5 4
15 25 48 48 48
20 31.5 58 58 58
25 35.5 68 68 68
32 40 80 80 80
40 45 90 90 90
50 56 105 105 105
65 63 125 125 125
80 71 140 140 140
100 80 160 165 165
125 110 190 195 195
150 125 215 225 225
200 160 270 285 290
250 200 330 340 350
300 250 385 400 415



Micro Spring Lift Ball Check Valve Stainless Steel For Liquid Water JB/T8937   0

Micro Spring Lift Ball Check Valve Stainless Steel For Liquid Water JB/T8937   1

Micro Spring Lift Ball Check Valve Stainless Steel For Liquid Water JB/T8937   2



Micro Spring Lift Ball Check Valve Stainless Steel For Liquid Water JB/T8937   3



Micro Spring Lift Ball Check Valve Stainless Steel For Liquid Water JB/T8937   4







Micro Spring Lift Ball Check Valve Stainless Steel For Liquid Water JB/T8937   5









Specification
1 Face to face according to DIN3202-K3.
2 Flange drilling according to ANSI125/150;DIN2501PN10/PN16;AS2129 Table E;JIS10K ect.
3 Working Pressure: PN10;PN16
