Industrial Horizontal Ball Check Valve For Sludge Pump / Low Pressure Drop Check Valves

Industrial Horizontal Ball Check Valve For Sludge Pump / Low Pressure Drop Check Valves

  • Industrial Horizontal Ball Check Valve For Sludge Pump / Low Pressure Drop Check Valves
  • Industrial Horizontal Ball Check Valve For Sludge Pump / Low Pressure Drop Check Valves
  • Industrial Horizontal Ball Check Valve For Sludge Pump / Low Pressure Drop Check Valves
Industrial Horizontal Ball Check Valve For Sludge Pump / Low Pressure Drop Check Valves
Product Details:
Place of Origin: China
Brand Name: TOBO
Certification: ISO 9001/ API 6D
Model Number: CF8M
Payment & Shipping Terms:
Minimum Order Quantity: 1Pcs
Price: Negotiation
Packaging Details: Usually packing by plywood case suit for sea delivery
Delivery Time: 10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 Pcs Per Month
Contact Now
Detailed Product Description
Product Name: Swing Check Valve Material: 316L
Application: Oil, Gas, Water, Steam Etc Advantage: Quiet
Temperature: -10~80 C Design: Wafer
Body: Stainless Steel Seat: Stainless Steel
High Light:

316L Horizontal Ball Check Valve

,

Sludge Pump Ball Check Valve

,

DN300 Ball Check Valve

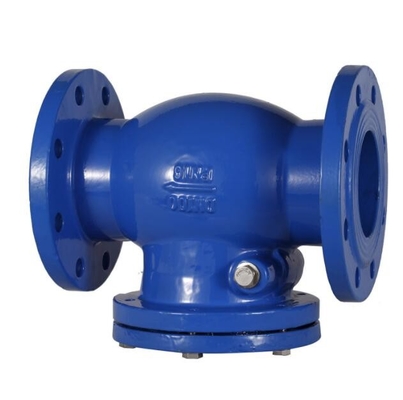

Industrial Horizontal Ball Check Valve For Sludge Pump / Low Pressure Drop Check Valves

Detailed Product Description
Product Name: Ball Check Valve Application: Sewage, Water Etc.,
Size: DN15 ~DN300 Pressure: PN2.5/6/10/16/125lbs/150lbs/JIS 5K/JIS10K
Standard: DIN/BS/AWWA/JIS Temperature: -20~120 C
Body: Cast Iron/ Ductile Iron Ball: Iron Coating EPDM/NBR
High Light:

stainless steel ball check valve

,

vertical ball check valve





Ductile Iron Sliding Ball Check Valve With Epoxy Powder Coating



Description:



Technical Parameters
Model PN(MPa) Casting test pressure(MPa) Seal test pressure (MPa) Materials of body, bonnet
HQ41X-10 1 1.5 1.1 iron or steel
HQ41X-16 1.6 2.4 1.76

Mail part & material
Body : Cast iron, ductile cast iron ,WCB
Bonnet : Cast iron, ductile cast iron, WCB
Ball : cast steel coated with neoprene
Medium : water and weak corrosive fluid



Applications:

Flanged Ball Check Valve uses the rubber covered roller as the disc, when, under the action of the

medium, can roll up and down along with the integral sliding path inside the valve so as to open or

close it.



And it features by good tightness, silent close and no production of water hammer.



The body is full waterflow path design, big flow, small resistance and the water head loss is smaller

that of the swing type by 50.



It is mountable vertically or horizontally and can be used for cold water, hot water, industrial and

living sludge pipe networks, especially suitable for the submersible sludge pump.



The medium temperature:0~80℃.



Dimensions
DN(mm) L D D1 D2 Z-φd H
50 180 160 125 100 4-18 185
65 200 180 145 120 4-18 210
80 260 195 160 135 4-18/8-18 245
100 300 215 180 155 8-18 280
125 350 245 210 185 8-18 335
150 400 280 240 210 8-23 400
200 500 335 295 265 8-23/12-23 495
250 600 390/405 350/355 320 12-23/12-25 600
300 700 440/460 400/410 375 12-23/12-25 715
350 800 500/520 460/470 435 16-23/16-25 820



Check Valve - Ball type (nonreturn valve) was the first valves at with a unique design. A very simple

but robust design with no critical mechanism involved.



All parts like hinge pin disc mechanism used in conventional valve are eliminated, and has put in a

reinforced rubber coated ball to arrest flow media in return condition.



This ball, moves totally out of the flow path when the pumping is on to give minimum head losses.



The spherical rubber coated ball seals perfectly on the rounded valve seat ensuring a totally leak proof

sealing.



This design offers other advantages like non clogging & self cleaning. In this virtually maintenance free

valves, if required, after prolonged usage, the on-line replacement of the ball is just a minute job.



Industrial Horizontal Ball Check Valve For Sludge Pump / Low Pressure Drop Check Valves 0

* Lower power consumption

* Larger solid handling capacity

* Self cleaning, Non-Clogging

* Perfect Sealing

* Low pressure drop





Industrial Horizontal Ball Check Valve For Sludge Pump / Low Pressure Drop Check Valves 1

Principle:

The heart of this valve is a reinforced rubber ball. The unique design of the valve allows free movement of the ball.

The ball moves to open position when the pump starts & allows free flow of liquid without any interference (See Fig.).

As the pump stops, the ball seats firmly against the metal seat due to its own weight & back pressure of

the liquid (Mouse over fig.). This results in DROPLESS sealing.



Industrial Horizontal Ball Check Valve For Sludge Pump / Low Pressure Drop Check Valves 2



Part List / Materials of Construction

Part Description Standard Special
1. Body Cast Iron St. Steel, Cast Steel
2. Cover Cast Iron St. Steel, Cast Steel
3. Ball Nitrile Reinforced EPDM, Neoprene
4. Cover Ring Nitrile Rubber Butyle, Viton
5. Ball Seat Ring L. T. Bronze St. Steel, Hard Rub.
6. Fasteners Carbon Steel St. Steel





Industrial Horizontal Ball Check Valve For Sludge Pump / Low Pressure Drop Check Valves 3









Specification
1 Face to face according to DIN3202-K3.
2 Flange drilling according to ANSI125/150;DIN2501PN10/PN16;AS2129 Table E;JIS10K ect.
3 Working Pressure: PN10;PN16
