TOBO STEEL GROUP CHINA
 |
| Place of Origin: | China |
| Brand Name: | TOBO |
| Certification: | ISO |
| Model Number: | / |
| Minimum Order Quantity: | 5Pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton, Ply-Wooden case or according to the clients request |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000Pcs per Month |

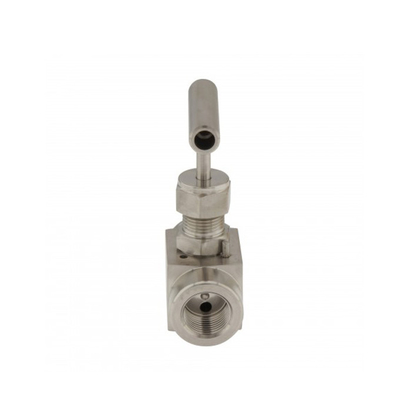

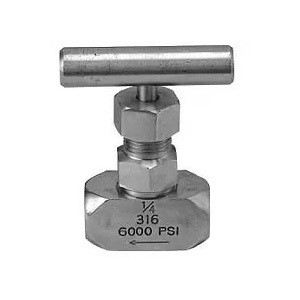

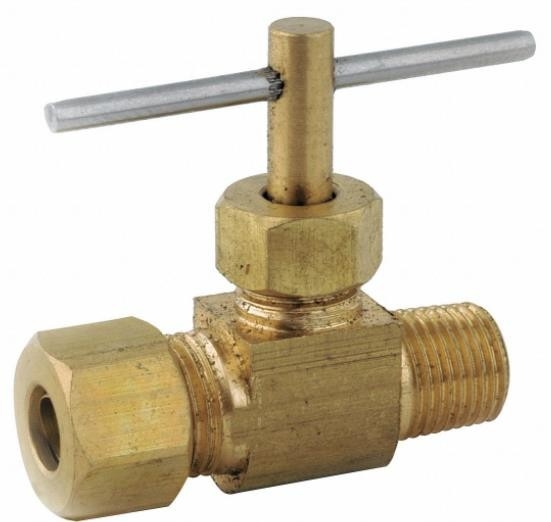

| Production Name: | Globe Style Needle Valve | Material: | SS316 |
|---|---|---|---|
| Class: | 2500 Psi | Types: | Threaded End |
| Ends: | Female X Male | Size: | 1/2'' |
| AVAILABLE SIZE:: | 1/4"-1" | Application: | Gas,Oil,Water And Other Corrosie Liquid |
| High Light: | Pressure Balanced Lubricated Plug Valve,SS316 Lubricated Plug Valve,2500psi Globe Style Needle Valve |
||
Lever Inverted Pressure Balanced Lubricated Plug Valve CF8-304-CF8M-316
| Name: | Plug Valve | Medium: | Acid, Alkali |
|---|---|---|---|
| Size: | DN15 ~ DN350 | Pressure: | PN10~PN160/ 150lbs~900lbs |
| Standard: | DIN/BS/AWWA/JIS | Temperature: | -20~120 C |
| Body: | Cast Steel/ Stainless Steel | Plug: | PTFE / PFA |
| High Light: |
flanged plug valve,gas plug valve |
||
Lever Inverted Pressure Balanced Lubricated Plug Valve CF8-304-CF8M-316
Sleeve type soft sealing plug (DIN) is applicable to the cutting and connection of pipelines medium that are used in various industries such as petroleum, chemical industry, pharmacy, chemical fertilizer, power industry etc under nominal pressure of PN1.6~16Mpa, and working temperature of -29~180℃.
Description:
Main parts & materials:
| No. | Part name | material |
| 1 | Body |
GS-C25 1.7363 1.4308,1.4408,1.4306,1.4301 |
| 2 | Sleeve | PTFE |
| 3 | Plug |
ASTM A182-Gr,F6a,ASTM A182-F22 ASTM A182-F304,F316,F321,F304L,F316L |
| 4 | Gasket | Flexible graphite + stainless steel, PTFE |
| 5 | Adjusting gasket |
ASTM A182-Gr,F6a,ASTM A182-F22 ASTM A182-F304,F316,F321,F304L,F316L |
| 6 | Cover |
GS-C25 1.7363 1.4308,1.4408,1.4306,1.4301 |
| 7 | Adjusting bolt | ASTM A193-B7, A320-B8, A193-B8M |
| 8 | Net | ASTM A194-2H, A194-8, A194-8M |
| 9 | Bolt | ASTM A193-B7, A320-B8, A193-B8M |
| 10 | Yoke | Q235,WCB |
| 11 | Worm |
Feature:
1. The product has reasonable structure, reliable sealing, excellent performance and beautiful
appearance.
2. Its sealing is realized by the sealing face around the sleeve. It has unique 360 degree metal
edge for protection and fixing of the sleeve.
3. There Is no cavity in the valve for accumulation of medium.
4. Metal edge provides the function of self-cleaning when the plug is rotated,
applicable to the operation condition that is glutinous and apt to smudge.
5. Its characteristic double-direction flow makes installation and sue more convenient.
6. The materials of the parts and sizes of flanges can be reasonably configured according
the actual operation condition of the requirements of the customers, so as to meet
the various needs of engineering.
Executive standard
| Structural formation | BC |
| Driving manner | worm & worm gear, pneumatic, electric-actuated ,Wrench wheel |
| Design standard | DIN |
| Face to face | DIN 3202F1 |
| Flange end | DIN 2543-2549 |
| Test & inspection | DIN 3230 |
The size of serial valve connecting flange can be designed according to customers requirement.
| Nominal pressure(MPa) | Shell test(MPa) | Sealing test(MPa) | Suitable temp | Suitable medium |
| 1.6 | 2.4 | 1.76 | -29~180℃ | Water, oil & gas |
| 2.5 | 3.75 | 2.75 | ||
| 4.0 | 6.0 | 4.40 | ||
| 6.4 | 9.6 | 7.04 | ||
| 10.0 | 15.0 | 11.0 | ||
| 16.0 | 24.0 | 17.6 |
Main technical data
Main external and connection dimension
| KQDX43-16 | ||||||||||||||||
| pressure | PN16 | |||||||||||||||
| size | mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 |
| L | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 730 | 850 | 980 | |
| H | 150 | 155 | 160 | 180 | 190 | 200 | 220 | 230 | 380 | 460 | 520 | 580 | 620 | 680 | 740 | |
| W | 300 | 300 | 300 | 350 | 400 | 500 | 500 | 550 | 300 | 300 | 320 | 320 | 350 | 380 | 380 | |
| Weight | 9 | 10 | 11 | 13 | 14 | 19 | 23 | 27 | 43 | 62 | 75 | 155 | 222 | 390 | 580 | |
| KQDX43-25 | ||||||||||||||||
| pressure | PN25 | |||||||||||||||
| size | mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 |
| L | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 730 | 850 | 980 | |
| H | 150 | 155 | 160 | 180 | 190 | 200 | 220 | 230 | 380 | 460 | 520 | 580 | 620 | 680 | 740 | |
| W | 300 | 300 | 300 | 350 | 400 | 500 | 500 | 550 | 300 | 300 | 320 | 320 | 350 | 380 | 380 | |
| Weight | 10 | 11 | 13 | 15 | 17 | 22 | 31 | 55 | 77 | 88 | 190 | 190 | 235 | 399 | 630 | |
| KQDX43-40 | ||||||||||||||||
| pressure | PN40 | |||||||||||||||
| size | mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 |
| L | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 730 | 850 | 980 | |
| H | 190 | 195 | 225 | 260 | 280 | 310 | 340 | 395 | 435 | 470 | 535 | 590 | 630 | 680 | 720 | |
| W | 120 | 140 | 140 | 180 | 200 | 220 | 260 | 280 | 300 | 340 | 400 | 450 | 450 | 500 | 500 | |
| Weight | 12 | 14 | 18 | 21 | 24 | 29 | 33 | 39 | 75 | 103 | 146 | 251 | 337 | 521 | 720 | |
| KQDX43-64 | ||||||||||||||||
| pressure | PN64 | |||||||||||||||
| size | mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 |
| L | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 730 | 850 | 980 | |
| H | 190 | 195 | 225 | 260 | 280 | 310 | 340 | 395 | 435 | 470 | 535 | 590 | 630 | 680 | 720 | |
| W | 120 | 140 | 140 | 180 | 200 | 220 | 260 | 280 | 300 | 340 | 400 | 450 | 450 | 500 | 500 | |
| Weight | 14 | 17 | 22 | 25 | 29 | 34 | 43 | 50 | 94 | 123 | 170 | 291 | 430 | 625 | 875 | |
| note: 100mm or above with worm gear |
|
|||||||||||||||
