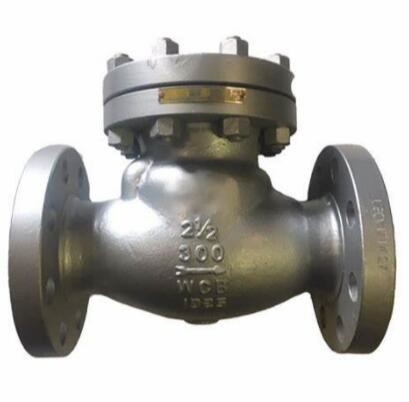

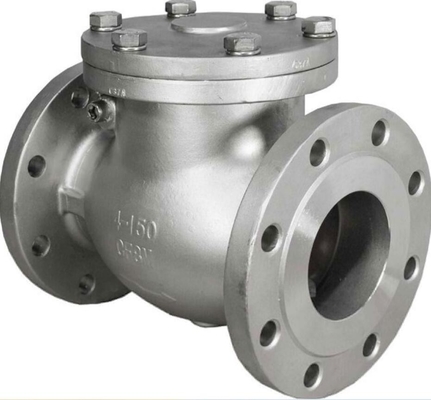

Swing Check Valve Automatically Flanged Swing Check Valve WCB GS-C25 PN16 One Way NRVs H44H

Swing Check Valve Automatically Flanged Swing Check Valve WCB GS-C25 PN16 One Way NRVs H44H

  • Swing Check Valve Automatically Flanged Swing Check Valve WCB GS-C25 PN16 One Way NRVs H44H
  • Swing Check Valve Automatically Flanged Swing Check Valve WCB GS-C25 PN16 One Way NRVs H44H
Swing Check Valve Automatically Flanged Swing Check Valve WCB GS-C25 PN16 One Way NRVs H44H
Product Details:
Place of Origin: China
Brand Name: TOBO
Certification: CE/ISO
Model Number: /
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: 1-100
Packaging Details: Inner package:plastic bag sealed package Outer package:carton package or wooden case package The lettering, nameplate, certificate for cryogenic valves are available We can customize the package for globe valve;
Delivery Time: 3-5 days
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000pcs/month
Contact Now
Detailed Product Description
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability: 100pcs One Day
MOQ: 1pc Key Word1: Check Valve
Nominal Pressure: Customize Pressure Delivery Time: 2-3days
Logo: Customize Logo Body Material: Carbon Steel WCB, GS-C25
High Light:

Automatically Flanged Swing Check Valve

,

Flanged Swing Check Valve WCB

,

One Way Flange Check Valve

Swing Check Valve Automatically Flanged Swing Check Valve WCB GS-C25 PN16 One Way NRVs H44H



Quick Details:

1. Type: Din Flanged Swing Check Valve
2. Bonnet Type:

Bolted Bonnet

3. Disc Type: Swing Disc
4. Size Range: Dn15 - Dn600
5. Pressure Ratings: Pn16
6. End Connections: Flanged
7. Materials: Cast Steel in GS-C25, WCB

8. Various trim materials available to suit service conditions
9. NACE MR 0175



Standards


Design & Manufacture DIN 3840
Face to Face Dimension DIN 3202
Flange Ends Dimension DIN 2543, DIN 2544, DIN 2545, DIN 2546, DIN 2548, BS EN 1092-1
Test & Inspection DIN 3230


Features:

1. Generally

Bolted Bonnet; Swing Disc; Metallic Seating Surfaces



2. Body and Bonnet Connection

Bolted bonnet



3. Cover Gasket Style

Stainless steel + flexible graphite wounded gasket

Metal gasket

Metal ring gasket



4. Seat

For carbon steel check valve, the seat is usually forged steel. The seat sealing surface may be spray-welded with hard alloy if specified by the customer. For Stainless steel check valve, integrai seat is usually adopted, or it can be machined integrally after hard alloy welded. The threaded or welded type seat is also optional for stain less steel check valve if being requested by the customer.





Descriptions:

1. Din Carbon Steel Swing Check Valve Parts and Material List:


Part Name Material
CS/ Trim 1 CS/ Trim 8 CS/ Trim 5
1 Body DIN 17245 GS-25 + CR13 DIN 17245 GS-C25 + STL DIN 17245 GS-C25 + STL
2 Disc DIN 17245 GS-C25 + CR13 DIN 17245 GS-C25 + CR13 DIN 17245 GS-C25 + STL
3 Arm DIN 17245 GS-C25 DIN 17245 GS-C25 DIN 17245 GS-C25
4 Nut ASTM A194 2H ASTM A194 2H ASTM A194 2H
5 Pin ASTMA182F6a ASTMA182 F6A ASTMA182F6a
6 Nut ASTM A194 2H ASTM A194 2H ASTM A194 2H
7 Bolt ASTM A194 B7 ASTM A194 B7 ASTM A194 B7
8 Gasket SS Spiral Wound W/^aphitc, or SS Spiral Wound W/PTFE, or Reinforced PTFE
9 Cover DIN 17245 GS-C25 DIN 17245 GS-C25 DIN 17245 GS-C25


3. Main Dimensions for Pn16 Swing Check Valve:





PN DN (mm) Dimensions(mm) Weight (kg)
L H
16 50 230 165 23
65 290 180 28
80 310 190 35
100 350 208 40
150 480 270 81
200 600 295 96
250 730 337 175
300 850 386 265
350 980 430 364
400 1100 475 495
500 1250 565 590




Swing Check Valve Automatically Flanged Swing Check Valve WCB GS-C25 PN16 One Way NRVs H44H 0

Flanged End Check Valve 150Lb~600Lb


Standard Material Specifications

NO. Part Name CS to ASTM AS to ASTM SS to ASTM
Type A105 Type F22 Type F304(L) Type F316(L)
1 Body A105 A182 F22 A182 F304(L) A182 F316(L)
2 Nameplate SS
3 Piston Disc A276 420 A276 304 A276 304(L) A276 316(L)
4 Bonnet A105 A182 F22 A182 F304(L) A182 F316(L)
5 Gasket Corrueated SS + graphite SS + PTFE
6 Bolt A193 B7 A193 B16 A193 B8 A193 B8(M)
Suitable Medium W.O.G.etc W.O.G.etc HNO3,CH3OOH etc
Suitable Temperature -29~425 -29~550 -29~180

Note: Other materials are available upon request.
Technical parameters :
NPS 1/2" 3/4" 1" 1-1/4" 1-1/2" 2"
L(RF)L1(BW) 150 108 117 127 140 165 203
300 152 178 203 216 229 267
600 165 190 216 229 241 292
H 150,300 61 61 79 95 103 118
600 61 79 95 103 118 135
Weights 150 RF 2.56 3.37 4.37 8.17 8.94 12.64
BW 1.70 1.90 2.10 5.12 5.50 7.89
300 RF 2.73 3.65 4.74 8.77 9.60 13.70
BW 1.90 2.10 3.00 5.12 6.60 7.85
600 RF 3.00 4.00 5.83 9.47 10.10 15.6
BW 2.00 3.12 4.25 7.25 8.56 13.60
