TOBO STEEL GROUP CHINA
 |
| Place of Origin: | China |
| Brand Name: | TOBO |
| Certification: | CE/ISO |
| Model Number: | / |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | 1-100 |
| Packaging Details: | Inner package:plastic bag sealed package Outer package:carton package or wooden case package The lettering, nameplate, certificate for cryogenic valves are available We can customize the package for globe valve; |
| Delivery Time: | 3-5 days |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000pcs/month |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Nominal Pressure: | Customize Pressure |
|---|---|---|---|
| Delivery Time: | 2-3days | Key Word1: | Flange Knife Gate Valve |
| MOQ: | 1pc | Logo: | Customize Logo |
| Supply Ability: | 100pcs One Day | Body Material: | SS316 Cast Steel |
| High Light: | Flanged Gate Valve 24 Inch,Flanged Stainless Steel Gate Valve,Knife Flanged Gate Valve |
||

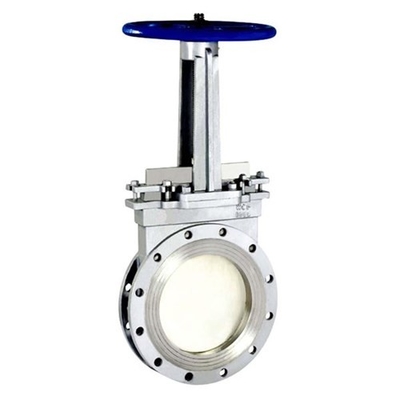

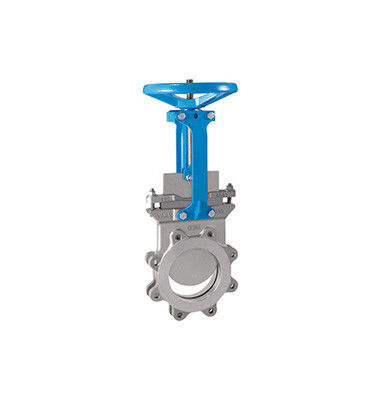

Flanged Gate Valve 24 Inch Gate Valve DN350 PN 10 14" Stainless Steel CF8 CF8M
|
Stainless steel flanged knife gate valve specification:
|
|||
|
Valve body
|
Stainless steel CF8, CF8M
|
||
|
Seat
|
PTFE, NBR, EPDM
|
||
|
Disc
|
Stainless steel flanged knife gate
|
||
|
Stem
|
Stainless steel flanged knife gate
|
||
|
Stainless steel flanged knife gate valve specification:
|
|||
|
1
|
Nominal pressure: 1.0MPa
|
||
|
2
|
Working medium: Cement slurry, sand pulp, fiber pulp and other media containing impurities in pipelines
|
||
|
3
|
Working temperature: ≤ 1000℃.
|
||
|
Stainless steel flanged knife gate valve features:
|
|||
|
1
|
Knife gate valve with lift type sealing surface of gate valve is adopted to strike off the adhesion on the surface and automatically clean the sundries.
|
||
|
2
|
Knife gate valve with stainless steel gate plate can prevent sealing leakage caused by corrosion;
|
||
|
3
|
Knife gate valve with hard alloy metal sealing surface can ensure the sealing and wear-proof performance and requirement;
|
||
|
Main parts and materials
|
||
|
NO.
|
Main parts
|
Materials
|
|
1
|
Valve body
|
Carbon steel/Stainless steel
|
|
2
|
Bonnet
|
Carbon steel/Stainless steel
|
|
3
|
Disc
|
Stainless steel
|
|
4
|
Stem
|
Stainless steel
|
|
5
|
Sealing surface
|
F4/Stainless steel/Hard alloy
|
|
Function and specification
|
|||||
|
Type
|
PN(MPa)
|
Testing pressure(MPa)
|
Suitable temperature(℃)
|
Suitable medium
|
|
|
Strength(water)
|
Enclose(water)
|
||||
|
PZ73W/H/Y-10C/P
|
1.0
|
1.5
|
1.1
|
≤120
|
Paper pulp, coal-slurry,sewage,dust mixture of water,ash residue.
|
|
PZ73W/H/Y-16C/P
|
1.6
|
2.4
|
1.8
|
||
|
Product Name
|
Material
|
|
Valve Body
|
Ductile iron, Carbon steel, Stainless steel
|
|
Knife
|
Stainless steel
|
|
Stem
|
Stainless steel
|
|
Handwheel
|
Cast iron
|
|
Sealing
|
NBR/EPDM/PTFE or Metal Seat
|
| Technical Date | Material Specification | ||
| Nominal Diameter | DN50-600mm | Valve Body | WCB/stainless steel |
| Nominal Pressure | PN10/PN16 |
Hand Bar |
Cast Iron or Ductile Iron or Stainless Steel |
| Operation Temperature | -40°C~225°C | ||
| Power | Manual | Seal Material | EPDM OR NBR |
| Suface Treatment | Painting |
Valve Stem |
Carbon Steel |
| Application |
Portable water, water distribution service & feed lines, sewage disposol, irrigation, fire protection pipe systerm, etc. |
||
