Name: Swing Check Valve Automatically Flanged WCB GS-C25 PN16 One Way NRVs H44H
Brand: TOBO
SKU: /
Price: 1 USD
Availability: InStock
Rating: 4.9 (176 reviews)

Home Products Flange Check Valve

Swing Check Valve Automatically Flanged WCB GS-C25 PN16 One Way NRVs H44H

Product Details:

Place of Origin:	China
Brand Name:	TOBO
Certification:	CE/ISO
Model Number:	/

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	1-100
Packaging Details:	Inner package:plastic bag sealed package Outer package:carton package or wooden case package The lettering, nameplate, certificate for cryogenic valves are available We can customize the package for globe valve;
Delivery Time:	3-5 days
Payment Terms:	D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000pcs/month

Contact Now

Detailed Product Description

Delivery Time:	2-3days	Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100pcs One Day	Nominal Pressure:	Customize Pressure
Key Word1:	Check Valve	MOQ:	1pc
Logo:	Customize Logo	Body Material:	Carbon Steel WCB, GS-C25
High Light:	Automatically Flange Check Valve , Swing Check Valve PN16 , WCB Carbon Steel Check Valve

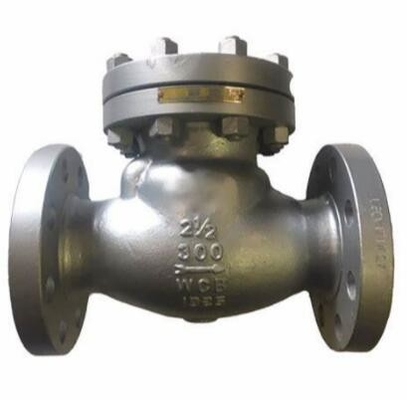

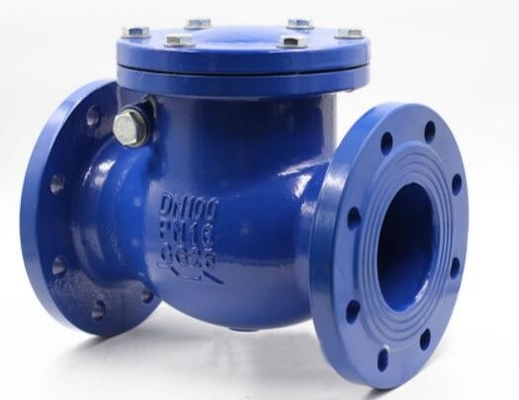

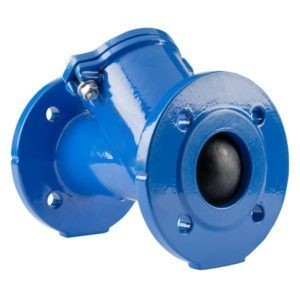

Swing Check Valve Automatically Flanged WCB GS-C25 PN16 One Way NRVs H44H

Quick Details:

1. Type: Din Flanged Swing Check Valve
2. Bonnet Type:

Bolted Bonnet

3. Disc Type: Swing Disc
4. Size Range: Dn15 - Dn600
5. Pressure Ratings: Pn16
6. End Connections: Flanged
7. Materials: Cast Steel in GS-C25, WCB

8. Various trim materials available to suit service conditions
9. NACE MR 0175

Standards

Design & Manufacture	DIN 3840
Face to Face Dimension	DIN 3202
Flange Ends Dimension	DIN 2543, DIN 2544, DIN 2545, DIN 2546, DIN 2548, BS EN 1092-1
Test & Inspection	DIN 3230

Features:

1. Generally

Bolted Bonnet; Swing Disc; Metallic Seating Surfaces

2. Body and Bonnet Connection

Bolted bonnet

3. Cover Gasket Style

Stainless steel + flexible graphite wounded gasket

Metal gasket

Metal ring gasket

4. Seat

For carbon steel check valve, the seat is usually forged steel. The seat sealing surface may be spray-welded with hard alloy if specified by the customer. For Stainless steel check valve, integrai seat is usually adopted, or it can be machined integrally after hard alloy welded. The threaded or welded type seat is also optional for stain less steel check valve if being requested by the customer.

Descriptions:

1. Din Carbon Steel Swing Check Valve Parts and Material List:

Part Name		Material
Part Name		CS/ Trim 1	CS/ Trim 8	CS/ Trim 5
1	Body	DIN 17245 GS-25 + CR13	DIN 17245 GS-C25 + STL	DIN 17245 GS-C25 + STL
2	Disc	DIN 17245 GS-C25 + CR13	DIN 17245 GS-C25 + CR13	DIN 17245 GS-C25 + STL
3	Arm	DIN 17245 GS-C25	DIN 17245 GS-C25	DIN 17245 GS-C25
4	Nut	ASTM A194 2H	ASTM A194 2H	ASTM A194 2H
5	Pin	ASTMA182F6a	ASTMA182 F6A	ASTMA182F6a
6	Nut	ASTM A194 2H	ASTM A194 2H	ASTM A194 2H
7	Bolt	ASTM A194 B7	ASTM A194 B7	ASTM A194 B7
8	Gasket	SS Spiral Wound W/^aphitc, or SS Spiral Wound W/PTFE, or Reinforced PTFE
9	Cover	DIN 17245 GS-C25	DIN 17245 GS-C25	DIN 17245 GS-C25

3. Main Dimensions for Pn16 Swing Check Valve:

PN	DN (mm)	Dimensions(mm)		Weight (kg)
PN	DN (mm)	L	H	Weight (kg)
16	50	230	165	23
	65	290	180	28
	80	310	190	35
	100	350	208	40
	150	480	270	81
	200	600	295	96
	250	730	337	175
	300	850	386	265
	350	980	430	364
	400	1100	475	495
	500	1250	565	590

Swing Check Valve Automatically Flanged WCB GS-C25 PN16 One Way NRVs H44H 0

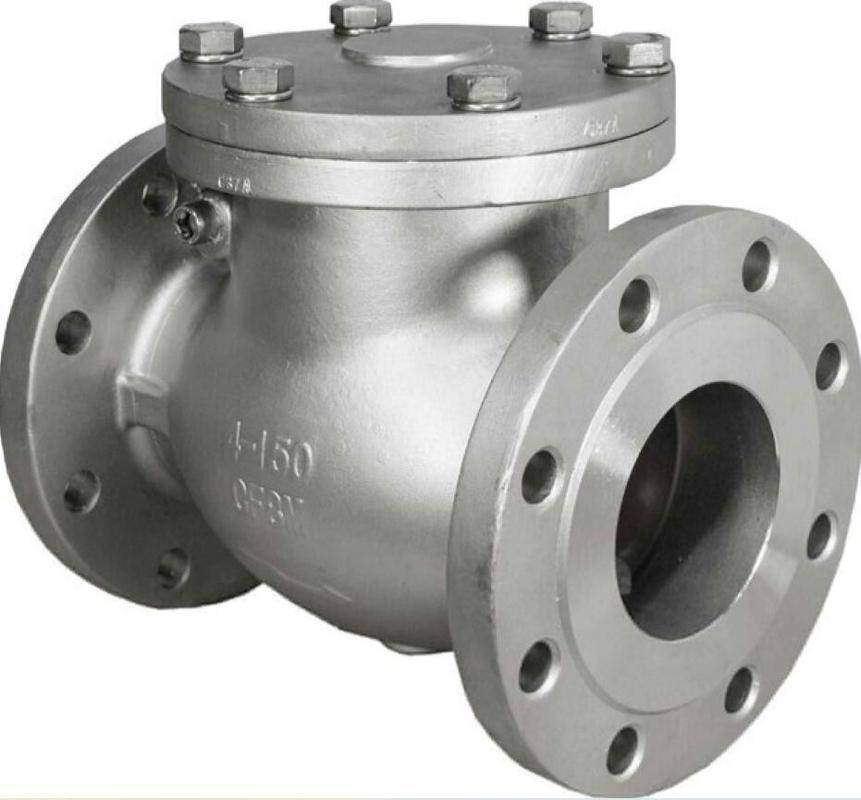

Flanged End Check Valve 150Lb~600Lb

Standard Material Specifications

NO.	Part Name	CS to ASTM	AS to ASTM	SS to ASTM
NO.	Part Name	Type A105	Type F22	Type F304(L)	Type F316(L)
1	Body	A105	A182 F22	A182 F304(L)	A182 F316(L)
2	Nameplate	SS
3	Piston Disc	A276 420	A276 304	A276 304(L)	A276 316(L)
4	Bonnet	A105	A182 F22	A182 F304(L)	A182 F316(L)
5	Gasket	Corrueated SS + graphite		SS + PTFE
6	Bolt	A193 B7	A193 B16	A193 B8	A193 B8(M)
Suitable Medium		W.O.G.etc	W.O.G.etc	HNO3,CH3OOH etc
Suitable Temperature		-29~425	-29~550	-29~180

Note: Other materials are available upon request.

Technical parameters :

NPS			1/2"	3/4"	1"	1-1/4"	1-1/2"	2"
L(RF)L1(BW)	150		108	117	127	140	165	203
	300		152	178	203	216	229	267
	600		165	190	216	229	241	292
H	150,300		61	61	79	95	103	118
H	600		61	79	95	103	118	135
Weights	150	RF	2.56	3.37	4.37	8.17	8.94	12.64
	150	BW	1.70	1.90	2.10	5.12	5.50	7.89
	300	RF	2.73	3.65	4.74	8.77	9.60	13.70
	300	BW	1.90	2.10	3.00	5.12	6.60	7.85
	600	RF	3.00	4.00	5.83	9.47	10.10	15.6
	600	BW	2.00	3.12	4.25	7.25	8.56	13.60
