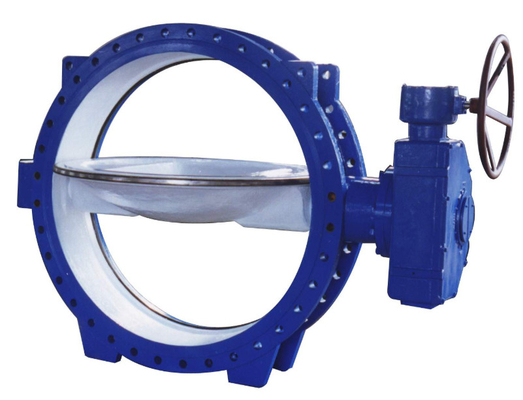

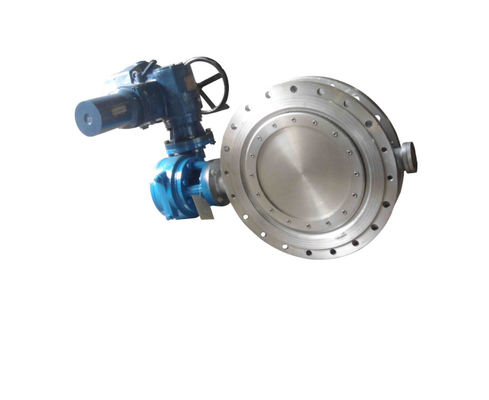

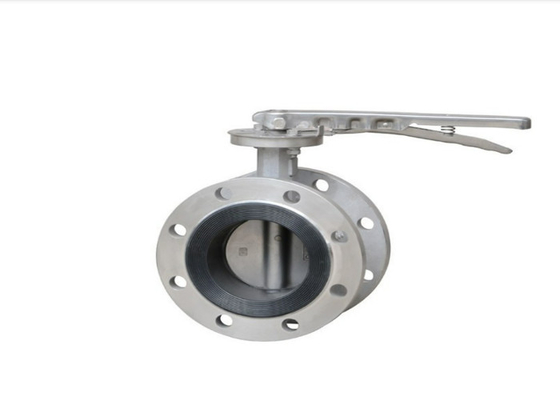

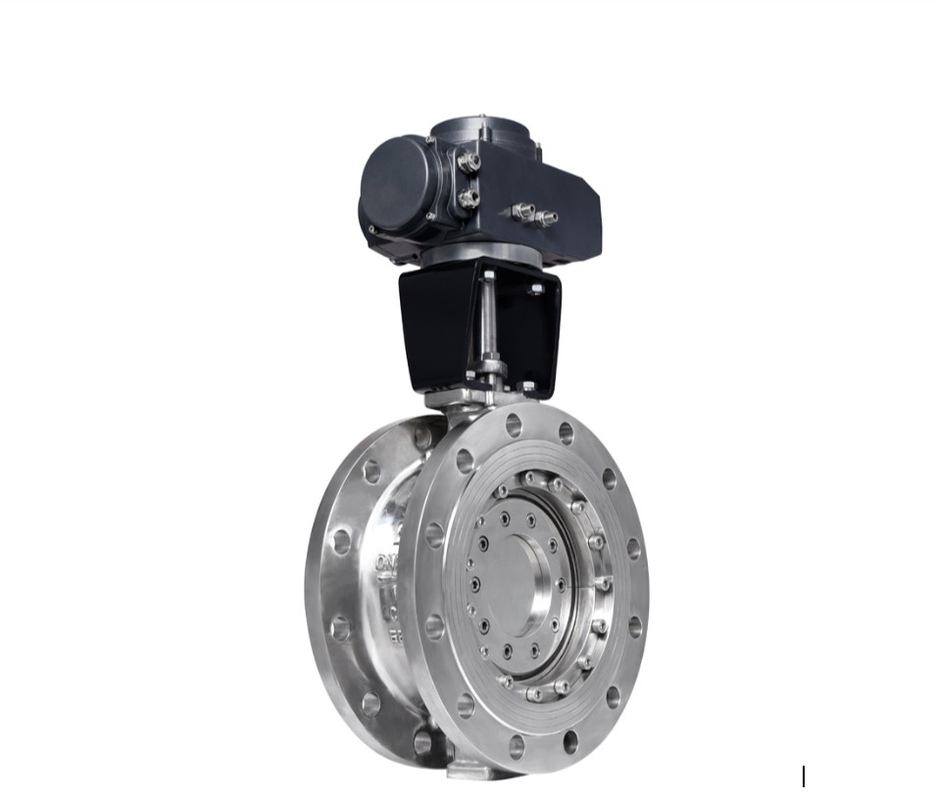

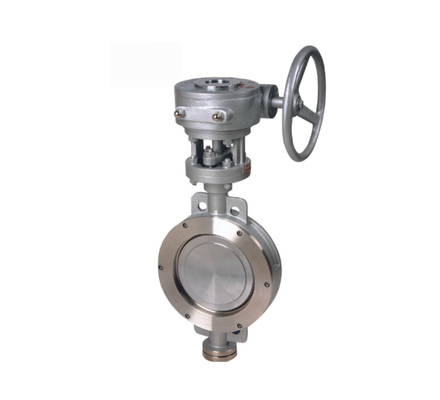

Wafer Butterfly Valve Double Eccentric Cast Steel Stainless Steel PTFE Seal Seat Wafer Butterfly Valve

Wafer Butterfly Valve Double Eccentric Cast Steel Stainless Steel PTFE Seal Seat Wafer Butterfly Valve

Wafer Butterfly Valve Double Eccentric Cast Steel Stainless Steel PTFE Seal Seat Wafer Butterfly Valve

Wafer Butterfly Valve Double Eccentric Cast Steel Stainless Steel PTFE Seal Seat Wafer Butterfly Valve

Wafer Butterfly Valve Double Eccentric Cast Steel Stainless Steel PTFE Seal Seat Wafer Butterfly Valve

Product Details:

Place of Origin:	CHINA
Brand Name:	TOBO
Certification:	CE/ISO
Model Number:	/

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	negotiable
Packaging Details:	Valves are wrapped in plastic bubble sheet & in plywood boxes
Delivery Time:	25workdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	1000000 Piece/Pieces per Month

Contact Now

Detailed Product Description

Body Material:	WCB, CF8, CF8M, CF3, CF3M, Etc.	Connection Type:	Wafer, Lug, Etc.
Design Standard:	API609, MSS SP-67, Etc.	Disc Material:	WCB, CF8, CF8M, CF3, CF3M, Etc.
Face To Face:	API609, DIN3202, Etc.	Flange Standard:	ANSI B16.5, DIN2543-2548, Etc.
Operation:	Manual, Pneumatic, Electric, Etc.	Pressure:	150-600LB
Sealing:	Soft Seal, Metal Seal	Seat Material:	PTFE, RPTFE, PPL, Etc.
Size:	2-24 Inch	Stem Material:	2Cr13, SS304, SS316, Etc.
Temperature:	≤425℃	Test Standard:	API598, MSS SP-71, Etc.
Valve Type:	Wafer Butterfly Valve
High Light:	Cast Steel Wafer Butterfly Valve , PTFE Seal Seat Wafer Butterfly Valve , Double Eccentric Flange Type Butterfly Valve

Wafer Butterfly Valve Double Eccentric Cast Steel Stainless Steel PTFE Seal Seat Wafer Butterfly Valve

Fingure: B5000F
Size : 2"-36"
Design Standard : API 609-83
Face to Face : ANSI B16.10
Flange Drilling : ANSI B16.5
Application
characteristic is :due to use three eccentric configuration, hermetic capability reliably,
which ensure disc never touch sealing seat when it start, solve the problem of
hermetical seat burden unequally,prolong service life, and ensure reliable hermetic
advantage capability with of high temperature resistant, wearable,antisepsis etc.

Specification

Structre type:double flanged three eccenticity

Design standard:API609-83

flange connection dimension:ANSI B 16.5

Flange drilling:ISO5211.

Structure length:ANSI B 16.10-1992

Pressure test:API 598-82

Materials
Wafer Butterfly Valve Double Eccentric Cast Steel Stainless Steel PTFE Seal Seat Wafer Butterfly Valve 0

Body	WCB,CF8M
Dise	WCB,CF8M
Stem	416 〿〿Cr13〿Cr18Ni9Ti
Seal ring	316,Fluorine plastic
Packing	Flesxible graphite,fluorine plastic

Dimensions

API 150LB Series
DN	L	H	H2	D	D1	D2	M	n-φd1
50	108	110	345	152	120.5	92	M18	4-19
80	114	125	380	190	152.5	127	M18	4-19
100	127	145	415	229	190.5	157	M18	8-19
125	140	165	455	254	216	186	M20	8-22
150	140	175	545	279	241.5	216	M20	8-22
200	150	210	645	343	298.5	270	M20	8-22
250	160	250	695	406	362	324	M24	12-25
300	178	285	830	483	432	381	M24	12-25
350	190	320	900	533	476	413	M27	16-29
400	216	355	980	597	540	470	M27	16-29
450	222	380	1030	635	578	533	M30	16-32
500	229	415	1110	699	635	584	M30	20-32
600	267	475	1305	813	749.5	692	M33	20-35
750	292	580	1525	985	914	857	M33	28-35
800	318	630	1585	1060	978	914	M39	28-41
900	330	680	1765	1168	1085	1022	M39	32-41

API 300LB Series
DN	L	H	H2	D	D1	D2	M	n-φd1
50	108	110	345	165	127	92	M18	8-19
80	114	125	380	210	168	127	M20	8-22
100	127	145	415	254	200	157	M20	8-22
125	140	165	455	279	235	186	M20	8-22
150	140	175	545	318	270	216	M20	12-22
200	150	210	645	381	330	270	M24	12-26
250	160	250	695	445	387	324	M27	16-29
300	178	285	830	521	451	381	M30	16-32
350	190	320	900	584	514	413	M30	20-32
400	216	355	980	648	571	470	M33	20-35
450	222	380	1030	711	628	533	M33	24-35
500	229	415	1110	775	686	584	M33	24-35
600	267	475	1305	914	813	692	M39	24-41
750	292	580	1525	1092	997	857	M45	28-49
900	330	680	1765	1270	1168	1022	M50	32-53

Wafer Butterfly Valve Double Eccentric Cast Steel Stainless Steel PTFE Seal Seat Wafer Butterfly Valve 1
