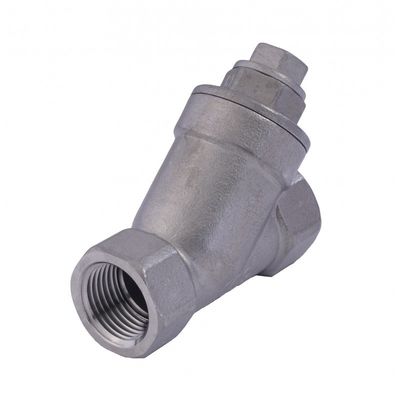

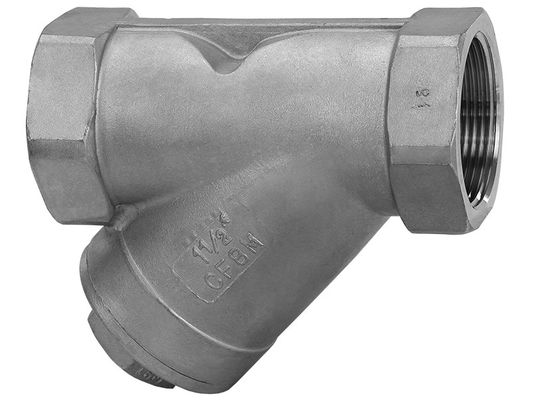

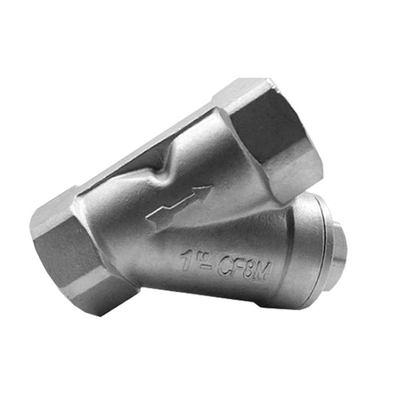

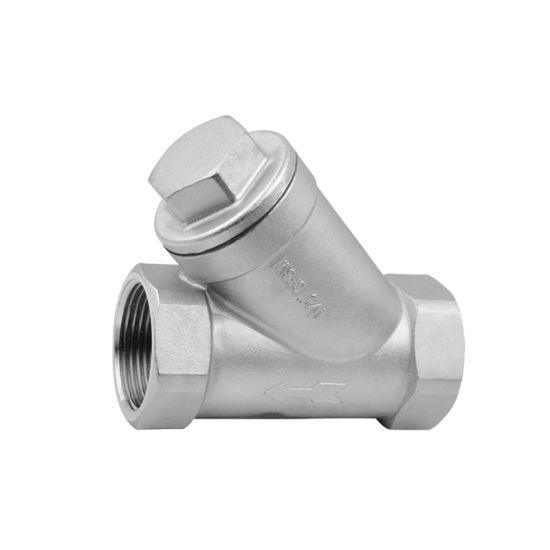

TOBO 800PSI Stainless Steel SS 304 NPT BSP Female Threaded End Y Type Strainer

TOBO 800PSI Stainless Steel SS 304 NPT BSP Female Threaded End Y Type Strainer

  • TOBO 800PSI Stainless Steel SS 304 NPT BSP Female Threaded End Y Type Strainer
  • TOBO 800PSI Stainless Steel SS 304 NPT BSP Female Threaded End Y Type Strainer
  • TOBO 800PSI Stainless Steel SS 304 NPT BSP Female Threaded End Y Type Strainer
  • TOBO 800PSI Stainless Steel SS 304 NPT BSP Female Threaded End Y Type Strainer
  • TOBO 800PSI Stainless Steel SS 304 NPT BSP Female Threaded End Y Type Strainer
TOBO 800PSI Stainless Steel SS 304 NPT BSP Female Threaded End Y Type Strainer
Product Details:
Place of Origin: CHINA
Brand Name: TOBO
Certification: ISO
Model Number: /
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: negotiable
Packaging Details: wooden case
Delivery Time: 25workdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Material: Stainless Steel Type: Y Strainer
Product Name: Y-Type Check Valve Standard Or Nonstandard: Standard
Media: Water,oil,Gas
High Light:

800PSI Y Type Strainer

,

Female Threaded End Y Type Strainer

,

304 Stainless Steel Y Strainer

800PSI Stainless Steel SS 304 NPT BSP Female Threaded end Y Type Strainer

Stainless Steel Y type Threaded Strainer

1. Size: 1/4''--3''(DN6--DN80)

2. Materials: CF8M (SS316), CF8 (SS304) CF3M (SS316L), CF3 (SS304L),WCB,DIN 1.4408/1.4308/1.0619 Available
3. Threaded: BSP, NPT, PT, DIN259/2999
4. Filter screen: 20-160 meshes
5. Working Pressure: 800PSI
6. Suitable Temp.: -29ºC~150ºC~350ºC
7. Suitable Medium: Water, Natural Gas, Oil, etc.

Features:
1. Investment casting body
2. PTFE seal.
3. SS304/316 screen
4. Maximum working pressure 800 psi for W.O.G.
5. 100% leakage tested at 100 psi air under water
Description:
Y- Strainer
Size:
1/2"
Material:
Stainless steel 304
Thread:
BS21 (BSPT&BSPP), ANSI/ASME B1.20.1 (NPT), DIN2999(R/RP), JIS B 0203/2(PT), KS B0221/2(PT), ISO228-1, ISO7-1,etc..
Connection:
Female Thread
Rating:
800PSI
Fabrication:
Silica Sol Precision Casting Technology



Main application:The products are widely used in oil,gas,chemical,electric power metallurgy,lifting,water supply,auto ship manufacturing oil-water road heating system control ,food,pharmaceutical,daily chemical industry ,municipal construction,mechanical equipment,etc.We keep on the concept of credit management, and try our best to givebest serviceto our customers!



Ptoduct name
1 /2 -4 Inch Stainless Steel 800PSI Y Type Female Filter Strainer
Material
ss201 ss304(CF8,1.4301) ss316 (CF8M,1.4408)
Size 1/2‘’-4‘’
Brand Name WOD SJFM OEM
Temperature Range -40---210 Degree C
Connection F/F Thread
Thread BSPP NPT BSPT DIN2999 DIN259 ISO228
Sealing PTFE RPTFE PPL
Certification CE ISO
Standard ASMEB16.34 GB/T12237
Capacity to produce 5000PCS/Week
Terms of payment T/T L/C D/A D/P VISA
Delivery time Depend on quantity,usually 30-45 days after we received the deposit



Main Features

1. Precision machining of balls and threads reduces operating torque.
2. Valve body seal can select multiple sealing materials and provide reliable bubble - level seal.
3. The valve body is manufactured by melting mould and solid solution annealing to ensure high quality and withstand greater strength (high temperature and high pressure).

TOBO 800PSI Stainless Steel SS 304 NPT BSP Female Threaded End Y Type Strainer 0
