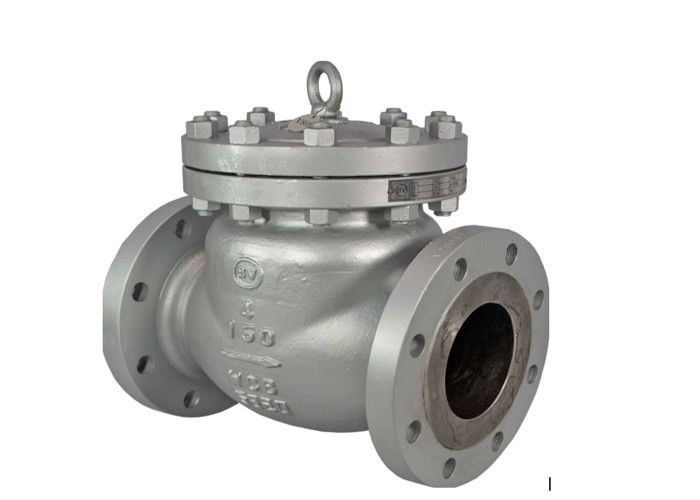

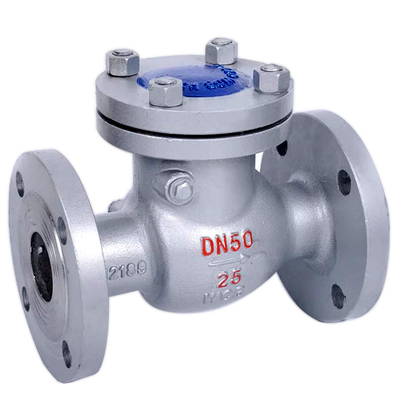

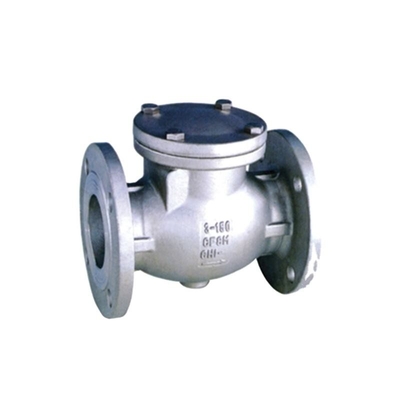

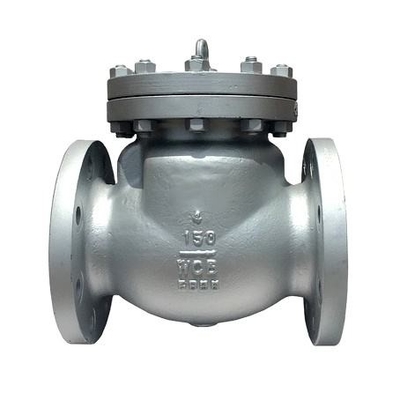

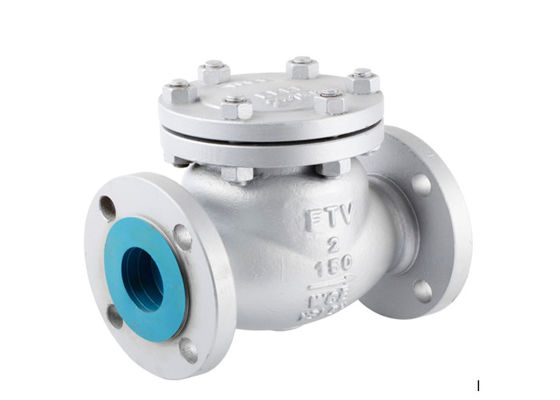

H44H Cast Steel Swing Check Valve Steam High Temperature One Way Flange Check Valve

H44H Cast Steel Swing Check Valve Steam High Temperature One way Flange Check Valve

What is a Check Valve?

Swing check valve is also called one-way valve or check valve, its function is to prevent the medium in the pipeline from flowing back. The valve that opens or closes on its own by the flow and force of the medium to prevent the medium from flowing back is called a check valve. Check valves belong to the category of automatic valves, which are mainly used in pipelines where the medium flows in one direction, and only allow the medium to flow in one direction to prevent accidents. This type of valve should generally be installed horizontally in the pipeline.

Quick Details

Stainless Steel Check Valve Standards

Face to face dimensions as ANSI B16.10

End flange dimension as ANSI B16.5

Pressure-temperature ratings as ANSI B16.34

Pressure test as API 598

Applicable Medium: water ,gas,oil,and other causticity medium.

Stainless Steel Check Valve Application:

Valve is used for preventing the back-going of medium in pipelines and equipments, and the pressure of medium will bring the result of opening and closing automatically.

When the medium is back-going, valve disc will automaticaly closed to avoid accidents.

Stainless Steel Check Valve Test Pressure

Types of Valves

The type of disk will decide the type of valve. Most common types of Check valves are

• Swing Type.

  • Top Hinged

  • Tilting disk

• Lift Type

  • Piston Type

  • Ball type

• Dual Plate Type

• Stop Check Valve

Swing Check Valve

The disc in a swing type valve is unguided as it fully opens or closes. This Valve operates when there is flow in the line and get fully closed when there is no flow. Turbulence and pressure drop in the valve is very low.

Disk and seat designs can be of metal to metal or metal to composite.

The angle between the seat and the vertical plane is known as the seating angle and varies from 0 to 45 degrees.

Usually, the seat angles are in the range of 5 to 7 degrees. Larger seat angles reduce the disc travel, resulting in quick closing, thus minimizing the possibility of water hammer. A vertical seat has a 0-degree angle.

The swing type valve allows full, unobstructed flow and automatically closes as pressure decreases. Usually installed in combination with gate valves because they provide relatively free flow combinations.

A basic swing type valve consists of a valve body, a bonnet, and a disk that is connected to a hinge.

Parts of Non-Return Valve

It is consists of body, cover, disk, hinge pin, and seat ring. In the image below you can see the parts of the valve.

Packing Details:

We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.


Delivery Details: According to the order, 7~60days
