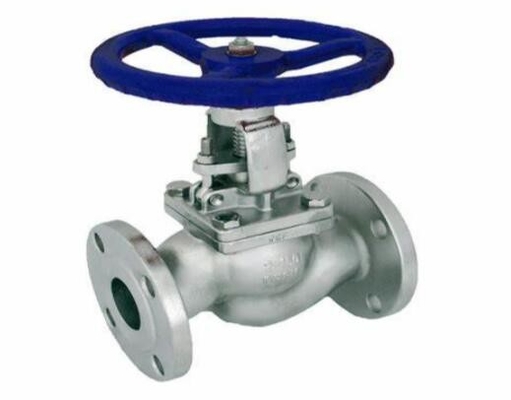

Steam Flange Stainless Steel 1/2 Ansi Globe Stop Valve

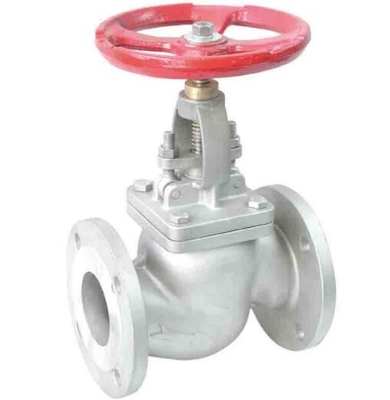

Steam Flange Stainless Steel 1/2 Ansi Globe Stop Valve

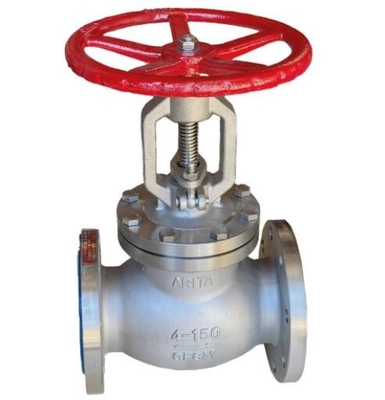

  • Steam Flange Stainless Steel 1/2 Ansi Globe Stop Valve

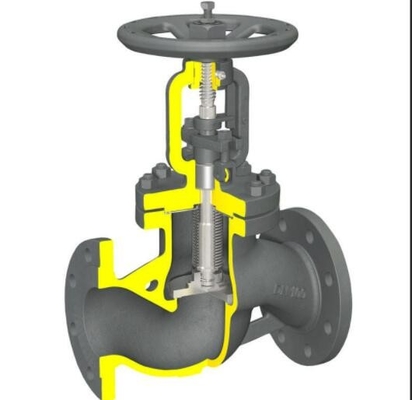

  • Steam Flange Stainless Steel 1/2 Ansi Globe Stop Valve

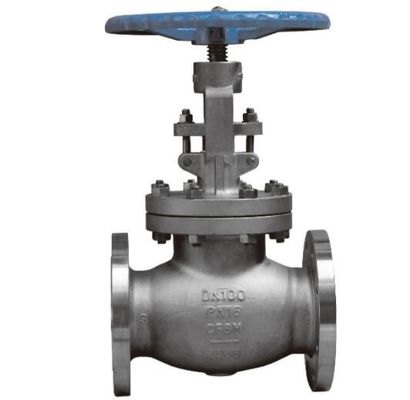

  • Steam Flange Stainless Steel 1/2 Ansi Globe Stop Valve
  • Steam Flange Stainless Steel 1/2 Ansi Globe Stop Valve
  • Steam Flange Stainless Steel 1/2 Ansi Globe Stop Valve
Steam Flange Stainless Steel 1/2 Ansi Globe Stop Valve
Product Details:
Place of Origin: CHINA
Brand Name: TOBO
Certification: ISO
Model Number: /
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: negotiable
Packaging Details: Valves are wrapped in plastic bubble sheet & in plywood boxes
Delivery Time: 15workdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Actuator Type: Manual Body Type: Split Body
Connection Type: Threaded Disc Material: Stainless Steel
End Connection: Flanged Flow Direction: Bidirectional
Handle Type: Lever Material: Stainless Steel
Pressure Rating: 1000 PSI Seal Material: PTFE
Seat Material: Stainless Steel Size: 1/2
Stem Material: Stainless Steel Temperature Rating: 200°F
Valve Type: Globe Valve
High Light:

Split Stainless Steel Globe Valve

,

Ansi Globe Stop Valve

,

Steam Flange Globe Stop Valve

Steam flange stainless steel 1/2 ansi globe stop valve

Globe valves

Stardard Connections:Flanged Ends
ASME Class: 150# ~ 1500#
JIS Class: 10K ~ 63K
DIN Class: PN10 ~ PN160
Size:1/2" ~ 12"



Material

A351-CF8

A351-CF8M

A351-CF3M

Other Materials upon Customer's Request



DN 15 20 25 32 40 50 65 80 100 125 150 200
L 130 150 160 180 200 230 290 310 350 400 480 600
H ( closed) 189 189 189 220 220 295 295 368 368 523 523 576
H ( opened ) 195 195 195 230 230 311,5 311,5 393 393 563 563 668
Ø V 120 120 120 160 160 195 195 280 280 350 350 400
Weight (Kg) 4,4 5,2 5,72 11,27 12,23 15,48 28 36 50 73,6 95 175



A Globe valves is a linear motion valve and are primarily designed to stop, start and regulate flow. The disk of a Globe valve can be totally removed from the flowpath or it can completely close the flowpath.

Conventional Globe valves may be used for isolation and throttling services. Although these valves exhibit slightly higher pressure drops than straight=through valves (e.g., gate, plug, ball, etc.), they may be used where the pressure drop through the valve is not a controlling factor.

Because the entire system pressure exerted on the disc is transferred to the valve stem, the practical size limit for these valves is NPS 12 (DN 300). Globe valves larger than NPS 12 (DN 300) are an exception rather than the rule. Larger valves would require that enormous forces be exerted on the stem to open or close the valve under pressure. Globe valves in sizes up to NPS 48 (DN 1200) have been manufactured and used.

Globe valves are extensively employed to control flow. The range of flow control, pressure drop, and duty must be considered in the design of the valve to avert premature failure and to assure satisfactory service. Valves subjected to high-differential pressure-throttling service require specially designed valve trim.

Generally the maximum differential pressure across the valve disc should not exceed 20 percent of the maximum upstream pressure or 200 psi (1380 kPa), whichever is less. Valves with special trim may be designed for applications exceeding these differential pressure limits.

Body designs of Globe valves

There are three primary body designs for Globe valves, namely..



Tee Pattern or Z-body



Steam Flange Stainless Steel 1/2 Ansi Globe Stop Valve 0



Angle Pattern



Steam Flange Stainless Steel 1/2 Ansi Globe Stop Valve 1

Wye Pattern or Y-body body



Steam Flange Stainless Steel 1/2 Ansi Globe Stop Valve 2



Disk and Seat and Stem of Globe valves

Disk.. The most common disk designs for Globe valves are.. ball disk, composition disk and the plug disk. Ball disk design is used primarily in low pressure and low temperature systems. It is capable of throttling flow, but in principle it is applied to stop and start flow.

Composition disk design uses a hard, non-metallic insert ring on the disk, which ensures a tighter closure.

Plug disk design provides better throttling than ball or composition designs. They are available in many different designs and they are all long and tapered.



Seat.. Globe valve seats are either integrated or screwed in to the valve body. Many Globe valves have backseats inside the Bonnet. Back seats provides a seal between the stem and Bonnet and prevents system pressure from building against the valve pakking, when the valve is fully open. Back seats are often applied in Globe valves.



Stem.. Globe valves uses two methods for connecting the disk and the stem.. the T-slot and the disk nut construction. In the T-slot design, the disk slides over the stem, while in the disk nut design, the disk is screwed into the stem.

Steam Flange Stainless Steel 1/2 Ansi Globe Stop Valve 3

Steam Flange Stainless Steel 1/2 Ansi Globe Stop Valve 4

Steam Flange Stainless Steel 1/2 Ansi Globe Stop Valve 5Steam Flange Stainless Steel 1/2 Ansi Globe Stop Valve 6

Contact Details
TOBO STEEL GROUP CHINA

Contact Person: TOBO

Tel: 021-31262012

Send your inquiry directly to us
