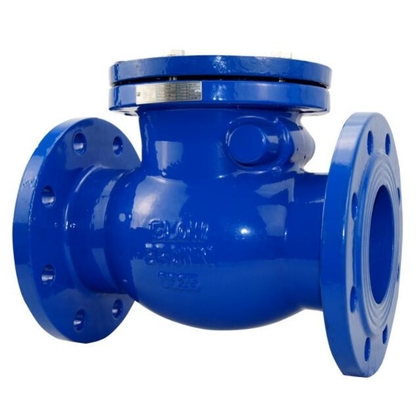

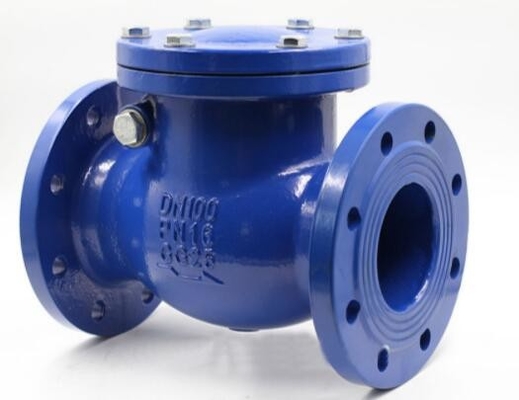

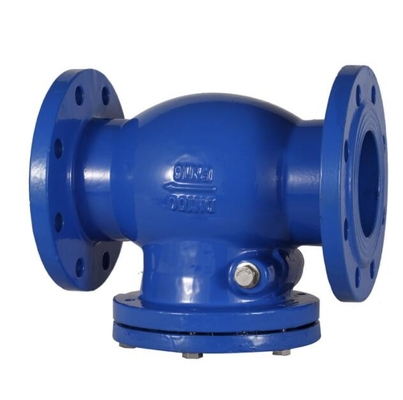

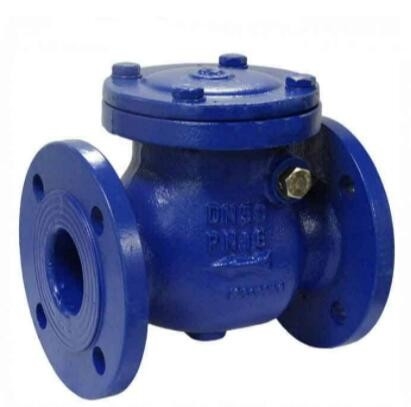

Factory DN100 4 Inch PN10 Cast Iron Flange Swing Check Valve Manufacturer With Competitive Price

Factory DN100 4 Inch PN10 Cast Iron Flange Swing Check Valve Manufacturer With Competitive Price

  • Factory DN100 4 Inch PN10 Cast Iron Flange Swing Check Valve Manufacturer With Competitive Price
  • Factory DN100 4 Inch PN10 Cast Iron Flange Swing Check Valve Manufacturer With Competitive Price
  • Factory DN100 4 Inch PN10 Cast Iron Flange Swing Check Valve Manufacturer With Competitive Price
  • Factory DN100 4 Inch PN10 Cast Iron Flange Swing Check Valve Manufacturer With Competitive Price
  • Factory DN100 4 Inch PN10 Cast Iron Flange Swing Check Valve Manufacturer With Competitive Price
Factory DN100 4 Inch PN10 Cast Iron Flange Swing Check Valve Manufacturer With Competitive Price
Product Details:
Place of Origin: CHINA
Brand Name: TOBO
Certification: CE/ISO
Model Number: /
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: negotiable
Packaging Details: Wooden case
Delivery Time: 25workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Valve Application: Petroleum, Chemical, Power, Gas, Etc. Valve Certification: ISO, CE, API, Etc.
Valve Coating: Fusion Bonded Epoxy Coating, Etc. Valve Connection: Flange, Thread, Socket, Butt-Weld, Etc.
Valve Design: API 6D, API 594, API 6A, Etc. Valve End: RF, FF, RTJ, BW, Etc.
Valve Feature: Fire Safe Design, Anti-Static Design, Etc. Valve Material: Carbon Steel, Stainless Steel, Alloy Steel, Etc.
Valve Operation: Manual, Gear, Electric, Pneumatic, Hydraulic, Etc. Valve Pressure: 150LB-2500LB
Valve Size: 1/2”-48” Valve Standard: ANSI, API, DIN, JIS, BS, Etc.
Valve Temperature: -196℃-600℃ Valve Type: Flange Check Valve
Operation: Manual/Automatic Design Standard: ISO, CE, API, Etc.
Temperature: -196℃-600℃
High Light:

Cast Iron Flanged Swing Check Valve

,

4 Inch Flange Swing Check Valve

,

Petroleum Flange Check Valve

DN100 4 inch PN10 Cast iron flange swing check valve manufacturer with competitive price

1.Description of Product

Size : DN50--300mm
Pressure : PN10-64, 125-900LB
Medium : Water, Air, Gas, etc
Temperature : -29~+450 C
Material: Cast iron, Carbon steel, Stainless steel

Design:ASME B16.34; DIN 3356; BS1873

Inspection&Testing: API 598/API 6D; DIN 3230; BS5146

Face to Face:ASME B16.10; DIN 3202; BS2080;

2.Application of product

Our goods are widely used on fire fighting, water, marine and oil&gas.


The pressure of the fluid passing through a system opens the valve, while any reversal of flow will close the valve. Exact operation will vary depending on the type of Check valve mechanism. Most common types of Check valves are swing, lift (piston and ball), butterfly, stop and tilting-disk.


Specifications:



Nominal pressue (MPa) 1.0 1.6
Nominal diameter(mm) 50-600 50-600
Test pressure Shell 1.5 2.4
(MPa) Seal 1.1 1.76
Applicable temperature 150
Applicable medium Fresh water, Sewage, Sea water, Air, Vapor, Food, Medicine, Oils, Acids,
Alkalis, etc.
Operating mode manual, worm gear, pneumatic, electric, etc.


Standards:


Design & Manufacture Flange Connection Face to Face Dimension Test & Inspection
DIN3202 DIN2533&EN1092 DIN3202 F6



Types of Check valves


Swing Check valve
A basic swing Check valve consists of a valve body, a bonnet, and a disk that is connected to a hinge. The disk swings away from the valve-seat to allow flow in the forward direction, and returns to valve-seat when upstream flow is stopped, to prevent backflow.

The disc in a swing type Check valve is unguided as it fully opens or closes. There are many disk and seat designs available, in order to meet the requirements of different applications. The valve allows full, unobstructed flow and automatically closes as pressure decreases. These valves are fully closed when flow reaches zero, in order to prevent backflow. Turbulence and pressure drop in the valve are very low.

Factory DN100 4 Inch PN10 Cast Iron Flange Swing Check Valve Manufacturer With Competitive Price 0
Lift Check valve
The seat design of a lift-Check valve is similar to a Globe valve. The disc is usually in the form of a piston or a ball.

Lift Check valves are particularly suitable for high-pressure service where velocity of flow is high. In lift Check valves, the disc is precisely guided and fits perfectly into the dashpot. Lift Check valves are suitable for installation in horizontal or vertical pipe-lines with upward flow.

Flow to lift Check valves must always enter below the seat. As the flow enters, the piston or ball is raised within guides from the seat by the pressure of the upward flow. When the flow stops or reverses, the piston or ball is forced onto the seat of the valve by both the backflow and gravity.

Factory DN100 4 Inch PN10 Cast Iron Flange Swing Check Valve Manufacturer With Competitive Price 1

Features:

1. Small in size, light in weight, compact in structure,easy in maintenance.
2. Two torsion springs are used excreting on each of the pair valve plates,which close the plates quickly
And automatically.
3. The quick-close action prevents the medium from flowing back and eliminates water hammer effect.
4. Short body structure length and good rigidity.
5. This valve is tightly sealed, without leakage under the pressure water test.
6. Safe and reliable in operation,high interference-resistance.

Factory DN100 4 Inch PN10 Cast Iron Flange Swing Check Valve Manufacturer With Competitive Price 2Factory DN100 4 Inch PN10 Cast Iron Flange Swing Check Valve Manufacturer With Competitive Price 3Factory DN100 4 Inch PN10 Cast Iron Flange Swing Check Valve Manufacturer With Competitive Price 4Factory DN100 4 Inch PN10 Cast Iron Flange Swing Check Valve Manufacturer With Competitive Price 5
