Place of Origin: | CHINA |
Brand Name: | TOBO |
Certification: | CE/ISO |
Model Number: | / |
Minimum Order Quantity: | 1PCS |
---|---|
Price: | negotiable |
Packaging Details: | Valves are wrapped in plastic bubble sheet & in plywood boxes |
Delivery Time: | 15workdays |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Supply Ability: | 10000pcs/month |
Material: | Stainless Steel | Valve Type: | Gate Valve |
---|---|---|---|
Media: | Water,Oil,Gas | Power: | Pneumatic |
Port Size: | DN50-DN600 | Structure: | Gate |
Standard Or Nonstandard: | Standard | Body Material: | Stainless Steel 316 |
Type: | Gate Valve | Color: | Customer's Request |
High Light: | High Pressure Stainless Steel Cast Valve,SS304 Gate Valve,Cast Iron Cast Valve 100mm |

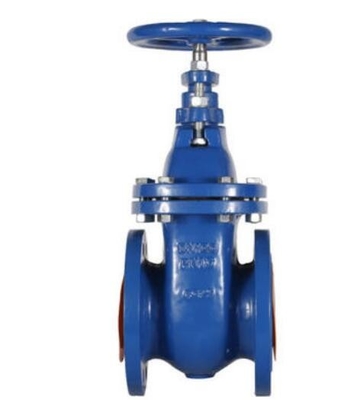

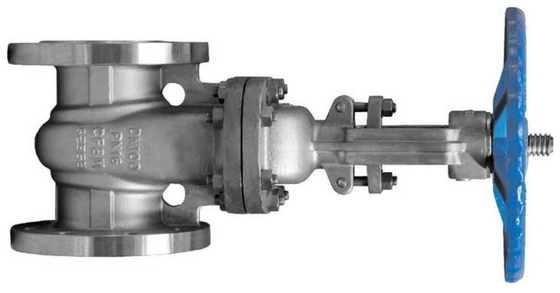

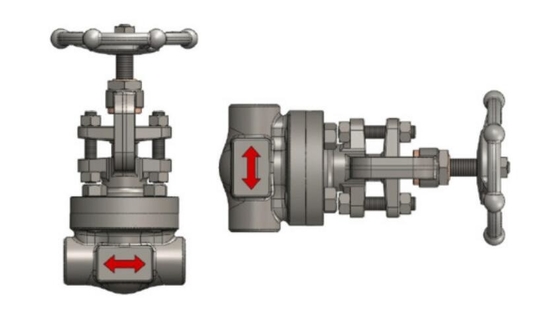

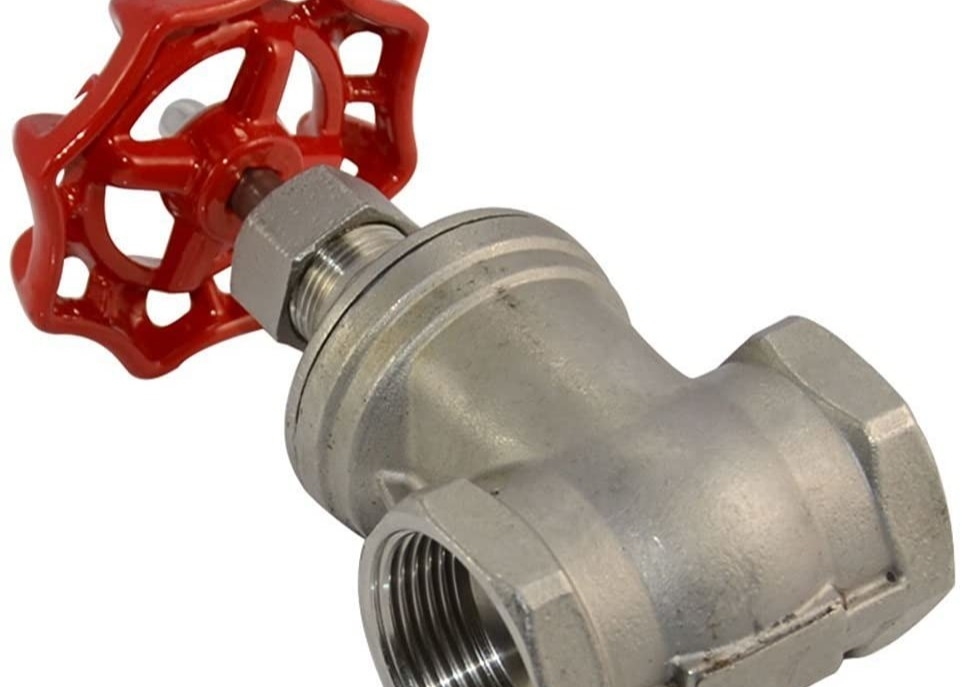

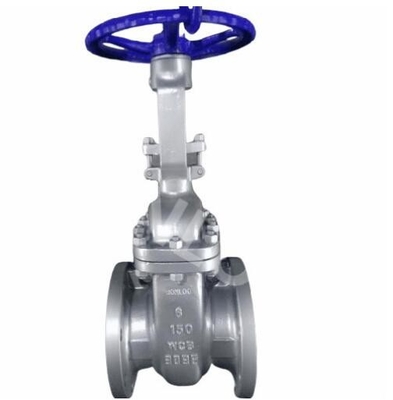

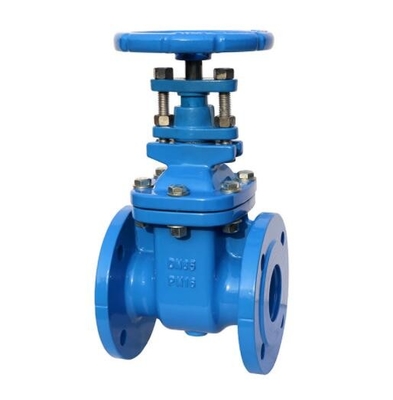

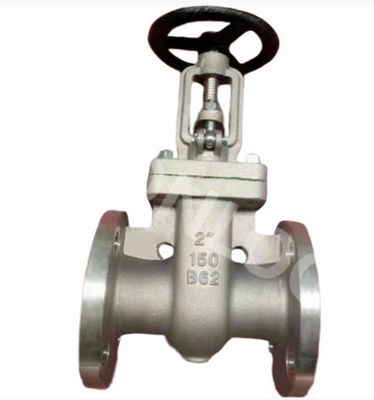

SS304 316 Stainless Steel DN250 100mm Gate Cast Valve with High Pressure
Plug valves:
Plug valve is a Quarter-turn rotary motion Valve that uses a tapered or cylindrical plug to stop or start the flow. The disk is in plug shape, which has a passage to pass the flow.
In the open position, this bored passage is in line with the flow. When the plug is turned 90° from the open position, the solid part of the plug blocks the flow.
It is used in place of a gate valve where the quick operation is required. It can be used in high-pressure temperature services.
Item | Plug Valve | Handle Type | Direct Nut Operated |
Valve Design | 2 Way / 3 Way | Seal Material | / |
Body Material | Cast Iron | Overall Height | / |
Connection Type | Flanged | Overall Length | / |
Pipe Size | / | Number of Bolts | 8 |
Max. Pressure | 175 PSI | Standards | ASTM A126 |
Temp. Range | -30 Dearees F to 150 Degrees F | Square Operating Nut Size | 2" |
Plug Valve Type and Use:
1. Lubricated Plug Valve
As the name suggests, a lubricated valve uses a lubricant usually made up of a base oil and viscosity improver (like amorphous or fumed silica) that is injected under pressure between the plug face and body seat to reduce friction and seal ports. Valve manufacturers generally recommend lubricant suitable for the process fluid, and the valves often must be resealed after only a few cycles, and in some cases, after every cycle. Considered a high maintenance plug valve, they are often used in applications that have infrequent operations. Lubricated plug valves perform well in processes that utilize fluids which carry mildly abrasive particles such as dirty upstream applications, gas pipeline systems that need bypass valves, and as blow-down valves on valve stations and kicker valves.
2. Non-Lubricated Plug Valve
This plug valve utilizes a tapered or cone-shape that acts as a wedge and presses a polymeric sleeve against the body cavity. The use of the sleeve reduces friction between the plug mechanism and body. Non-lubricated plug valves are often used instead of lubricated ones in applications where maintenance needs to be kept to a minimum, such special services in sulphur, hydrogen fluoride, or where liquids could be trapped or solidify and potentially jam the valve. However, non-lubricated plug valves are limited by temperature and chemical compatibility of the non-metallic materials they are made of.
The three main types of non-lubricated plug valves are:
3. Eccentric Plug Valve
The design of this plug valve uses a half plug that is advantageous for applications needing a higher seating force with minimal friction from open to closed position. The torque seated valves also feature improved shut off capabilities. Eccentric plug valves are used for a wide range of flow control and isolation applications including clean and dirty water, sewage, sludge and slurries, air, and other services.
4. Expanding Plug Valve
This complex plug valve uses multiple components that allow the valve to mechanically expand and give it a true double block and bleed function in one valve. The plug valve uses a mechanism that rotates between the open and closed position and protects both seals from the flow path. During rotation there is no contact between body and seals, and slips expand onto the body seat when the valve is closed to avoid causing any wear or abrasion to the seals. They are often used to prevent product contamination in applications that do not require a double isolation.
In conclusion, plug valves have a number of useful applications, and new technology and designs are sure to give them an even wider variety of applications within many processes. And if you need more information on different types of valves, check out this piece on check valves or the rest of the site.
