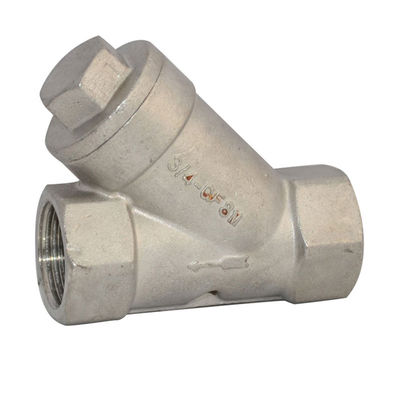

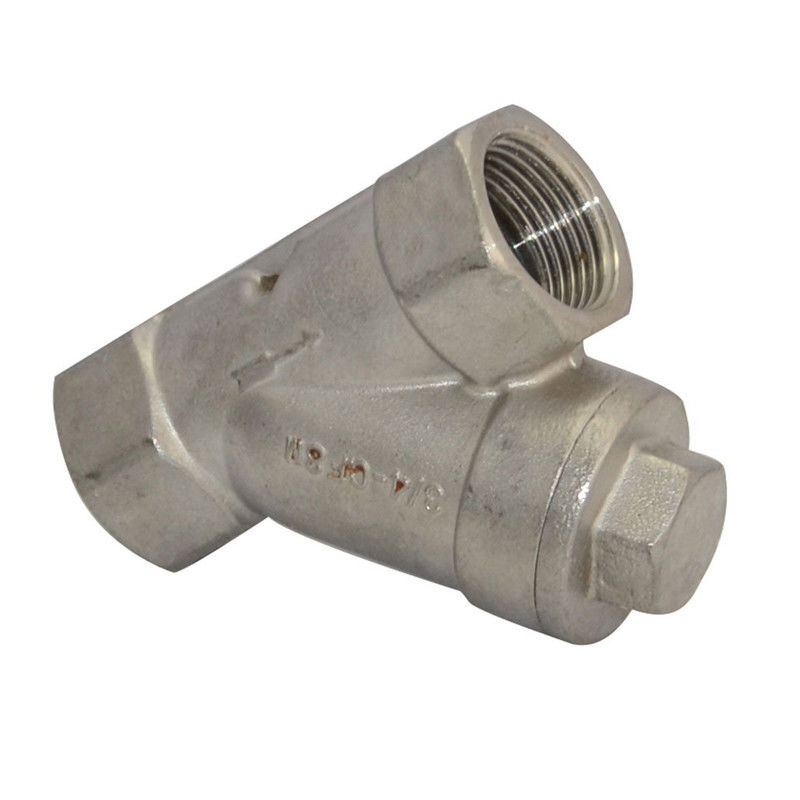

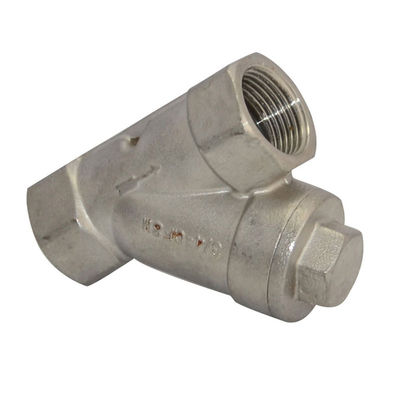

1'' 150# Mesh SS316 Double Screen Y Type Strainer For Water

1'' 150# Mesh SS316 Double Screen Y Type Strainer For Water

  • 1'' 150# Mesh SS316 Double Screen Y Type Strainer For Water
  • 1'' 150# Mesh SS316 Double Screen Y Type Strainer For Water
1'' 150# Mesh SS316 Double Screen Y Type Strainer For Water
Product Details:
Place of Origin: China
Brand Name: TOBO
Certification: SGS, BV, ISO9001
Model Number: SS316
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As per your requirement
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Material: SS316 Product Name: Y Type Strainer
Head Code: Full Port / Reduce Port Pressure: Medium Pressure
End Connection: Threaded/SW/Flanged Application: General
Thread: BSP/NPT Size: 1"
High Light:

SS316 Y Type Strainer


SGS Y Type Strainer


ISO9001 SS Y Strainer

Pump Filter Water Oil Gas Thread Stainless Steel 304 3/4'' Y strainer

Function Description:


Strainers are used to clear away impurities and to protect the valve and related equipment.



Applicable Temperature: ≤425 ºC

Main Materials: WCB/CF8/CF8M/CF3/CF3M

Applicable Medium: Water / Oil / Gas / Causticity Medium

Pressure Rating: PN10-PN100, 150LB-1500LB

Size Range: 1/4" ~ 4"(DN6-DN100)



Product Name

Y type female thread strainer



Nominal diameter(DN)mm


Working pressure




Design standard



stainless steel



Applicable Media

Water,Oil,Gas and Corrosive Liquid

Temperature Applicable



SS316 . SS304 .

Threaded standard


End connection


Driven mode


Y Strainer Design
As it's name implies, a Y strainer is shaped like a “Y” and is used to filter, or strain, out particulates  from steam, gas or liquid. This mechanical straining process is made possible via a filter element comprised of mesh, perforated metal, or a wedge wire straining element. The most common kind of straining element is a wire mesh. Some also include “blow-off valves” that make the cleaning process easier in applications with more substantial dirt blowing. The strainer itself has a compact, Y shaped design. The Y shape has better flow characteristics than for example a T shaped strainer, because the fluid flows through the filter with less change of direction.
Why Use a Y Strainer?
In general, Y strainers are critical anywhere clean fluids are required. While clean fluids can help maximize the reliability and lifespan of any mechanical system, they're especially important with solenoid valves. This is because solenoid valves are very sensitive to dirt and will only function properly with clean liquids or air. If any solids enter the stream, it can disrupt and even damage the entire system. Therefore, a Y strainer is a great complimentary component. In addition to protecting the performance of solenoid valves, they also help safeguard other types of mechanical equipment, including:

  • Pumps

  • Turbines

  • Spray nozzles

  • Heat exchangers

  • Condensers

  • Steam traps

  • Meters

A simple Y strainer can keep these components, which are some of the most valuable and expensive parts of the pipeline, protected from the presences of pipe scale, rust, sediment or any other kind of extraneous debris.
Y strainers are available in a myriad of designs (and connection types) that can accommodate any industry or application.

PRACTICALITY:Adopt stainless steel double layers mesh structure, strong and durable, low flow resistance, easy to discharge, large amount of pollution and so on

UNIQUE DESIGN:The body material is stainless steel and is mainly used in small diameter pipe equipment

EASY TO INSTALL:Easy to install and disassemble, reliable discharge performance

MATERIAL:It is mainly used in water, steam and other media, convenient to use and maintain

GREAT CHIOCE:It is an indispensable device for the piping system of conveying medium, usually installed in the inlet end of pressure reducing valve, relief valve and fixed water level valve

Packing Details:
We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details: According to the order, 7~60days
