TOBO STEEL GROUP CHINA
 |
| Place of Origin: | China |
| Brand Name: | TOBO |
| Certification: | CE, ISO |
| Model Number: | / |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | 1-100USD |
| Packaging Details: | Inner package:plastic bag sealed package Outer package: |
| Delivery Time: | 3-8days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000PCS/DAY |
| Valve Type: | Stainless Steel Globe Valve | Size: | DN25~DN300 |
|---|---|---|---|
| Nominal Pressure: | 1.6MPa,2.5MPa,4MPa, 6.4MPa | Suitable Medium: | Water,steam,oil,etc |
| Suitable Temparature: | ≤150℃ | Testing: | Conform To GB/T 26480 |
| Face-to-face: | Conform To GB/T 12221 | Valve Stem: | 304 |
| High Light: | 1.6MPa Stainless Steel Globe Valve,Stainless Steel Globe Valve DN25,DN25 Stop Globe Valve |
||

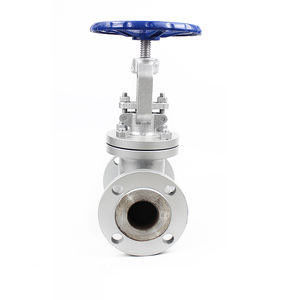

1 Inch Shut Off Stop Globe Valve Stainless Steel 304 For Water Steam Oil
| Valve Type:stainless steel globe valve |
| Connection Type: flange |
| Size:DN25~DN300 |
| Nominal Pressure:1.6MPa,2.5MPa,4MPa,6.4MPa |
|
Material: Valve Body/Bonnet:CF8; Valve Stem:304; Screw Nut:aluminum bronze; |
| Suitable Medium:water,steam,oil,etc |
| Suitable Temparature:≤150℃ |
| Design and Manufacture:Conform to GB/T 12235 |
| Face-to-face:conform to GB/T 12221 |
| Flange connection:conform to JB/T 179.1 |
| Testing:Conform to GB/T 26480 |
| PN | DN | Size(mm) | ||||||
| L | D | D1 | D2 | B | N-φ | H | ||
| 1.6MPa | 25 | 160 | 115 | 85 | 65 | 14 | 4-14 | 275 |
| 32 | 180 | 135 | 100 | 78 | 16 | 4-18 | 280 | |
| 40 | 200 | 145 | 110 | 85 | 16 | 4-18 | 330 | |
| 50 | 230 | 160 | 125 | 100 | 16 | 4-18 | 350 | |
| 65 | 290 | 180 | 145 | 120 | 18 | 4-18 | 370 | |
| 80 | 310 | 195 | 160 | 135 | 20 | 8-18 | 400 | |
| 100 | 350 | 215 | 180 | 155 | 20 | 8-18 | 415 | |
| 125 | 400 | 245 | 210 | 185 | 22 | 8-18 | 460 | |
| 150 | 480 | 280 | 240 | 210 | 24 | 8-23 | 510 | |
| 200 | 550 | 335 | 295 | 265 | 26 | 12-23 | 710 | |
| 250 | 650 | 405 | 355 | 320 | 30 | 12-25 | 786 | |
| 300 | 750 | 460 | 410 | 375 | 30 | 12-25 | 925 | |
Why choose us?
1. Direct Factory: We have our own R&D dept with self-developed mould and our own production line.
2. Full-range Product: Our product suitable for various fields and we can provide diversified choices according to different working conditions.
3. Guaranteed Quality: High quality standards, one purchase with lifetime service, quality assurance is unequivocal.
4. Service Team: Professional service team with timely reply and detailed answer.
5. Rich Experience: Specialized in Automatic Control Valve Production & Sales for 12 years and cooperating with hundreds of large companies.
FAQ:
Q: Can we visit your factory before placing orders?
A: Yes, sure. Welcome to visit our factory at any time.
Q: How long is your delivery time?
| Parts Name | Material | |||
| CS/Trim 1 | CS/Trim 8 | CS/Trim 5 | ||
| 1 | Body | WCB+13CR | WCB+STL | WCB+STL |
| 2 | Disc | WCB+13CR | WCB+13CR | WCB+STL |
| 3 | Stem | ASTM A182 F6a | ||
| 4 | Nut | A194 2H | ||
| 5 | Bolt | A193 B7 | ||
| 6 | Gasket | SS Spiral Wound W/graphite, or SS Spiral Wound W/ PTFE, or Reinforced PTFE | ||
| 7 | Bonnet | A216-WCB | A216-WCB | A216-WCB |
| 8 | Packing | Braided Graphite or Reformed Graphite Ring or PTFE | ||
| 9 | Gland | ASTM A182 F6a | ||
| 10 | Gland Flange | A216-WCB | ||
| 11 | Stem Nut | Copper Alloy or A439 D2 | ||
| 12 | Hand Wheel | Ductile Iron or Carbon Steel | ||
