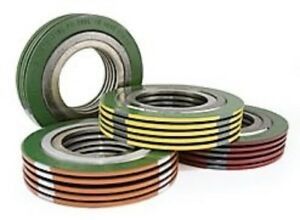

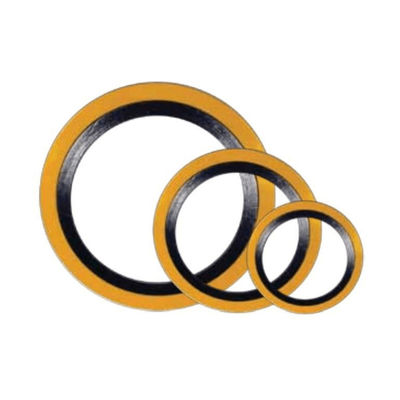

RF 4.5mm Spiral Wound Gasket Graphite Filler DN200 SS316L CL150 B16.20

RF 4.5mm Spiral Wound Gasket Graphite Filler DN200 SS316L CL150 B16.20

  • RF 4.5mm Spiral Wound Gasket Graphite Filler DN200 SS316L CL150 B16.20
  • RF 4.5mm Spiral Wound Gasket Graphite Filler DN200 SS316L CL150 B16.20
RF 4.5mm Spiral Wound Gasket Graphite Filler DN200 SS316L CL150 B16.20
Product Details:
Place of Origin: China
Brand Name: TOBO
Certification: SGS
Model Number: Sprial Wound Gasket
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As per your requirement
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Product Name: Flange Gasket Spiral Wound Connection: Flange
Material: SS316L Standard: ASME B16.20
Type: Graphite Filler Inner & Outer Ring Color: Black, Green, Yellow
Application: Computers,Wall And Roof,Pumps Size: DN200
High Light:

DN200 Spiral Wound Gasket

,

4.5mm Spiral Wound Gasket

,

Spiral Wound Gasket Graphite Filler

DN200 SS316L CL150 B16.20 RF 4.5mm Graphite Filler Gasket Spiral Wound​

What is Spiral Wound Gasket?

Why did we call it SWG? SWG is a short form of Spiral Wound Gasket.
These gaskets are fabricated from thin metal strip sandwiched between layers of non-metallic filler. SWG has
alternative spiral layers of thin metal sheet and filler material as shown in the image. Here in the cross-section,
the blue layers are of metal, and the black layers are of filler material. As these layers are wounded in continuous spiral forms,
these types of gaskets are known as spiral wound gasket.

Thickness
The standard manufacturing thickness for spiral wound gaskets are: 3.2 mm; 4.5 mm; 6.5 mm
(measured across metallic strip not including the filler, which protrudes slightly beyond the metal).
Manufacturing tolerances
The tolerance of the gasket diameters (d1, d2, d3, d4, s, s1) are stipulated by ASME B 16.20 and
DIN 2632-2638 standards. The gaskets designed for non-standard flanges meet the recommendations by the ASME B 16.20.
Dimensions
The dimensions of the standard SWG meet the ASME, BS and EN (DIN) standards.


NPS)Classes
150, 300
Class 150Class 300Class 150Class 300
InchmmInside DiameterOutside Diameter
1⁄231.819.119.147.854.1
3⁄439.625.425.457.266.8
147.831.831.866.873.2
1 1⁄460.547.847.876.282.6
1 1⁄269.954.154.185.995.3
285.969.969.9104.9111.3
2 1⁄298.682.682.6124130.3
3120.7101.6101.6136.7149.4
4149.4127127174.8181.1
5177.8155.7155.7196.9215.9
6209.6182.6182.6222.3251
8263.7233.4233.4279.4308.1
10317.5287.3287.3339.9362
12374.7339.9339.9409.7422.4
14406.4371.6371.6450.9485.9
16463.6422.4422.4514.4539.8
18527.1474.7474.7549.4596.9
20577.9525.5525.5606.6654.1
24685.8628.7628.7717.6774.7


Strength of Spiral Wound Gasket

Spiral Wound Gasket is the ideal gasket in the semi-metallic category. A narrow strip of V-shape metal hoop is spirally wound
under tension with a filler cushion between the lamination of the metal and is spot-welded at both ends.
This unique construction of a spring-like metal and soft filler provides gasket excel-lent characteristics.

Resistance to high temperature and high pressures.

Excellent sealability is maintained with comparatively small gasket area.
Great resilience which allows the gasket to adjust automatically to change in operating conditions, such as pressure and

These gaskets are extremely popular due to the wide variety of available styles and sizes.
SWG can be fabricated of any metal which is available in thin strip and which can be welded; therefore, they can be used
against virtually any corrosive medium.
They can be used over the complete temperature range from cryogenic to approximately 1093ºC. This type of gasket can
be used in all pressures from vacuum to the standard 2500 pressure class flange ratings.
Relatively low-density Spiral wound gaskets are used in vacuum service whereas extremely high-density Spiral wound gaskets
are used in high-pressure service. The density of gasket is nothing but a number of layers of filler and metal strip in the given
width of the gasket.

Tolerance in the Dimension of the Spiral Gasket

  • Thickness tolerance is ±0.13 mm measured across the metallic portion of the gasket, not including the filler, which may protrude slightly beyond the metal.

  • Outside diameter tolerance for NPS 1⁄2 through NPS 8 is ±0.8 mm; for NPS 10 through NPS 24, +1.5 mm, −0.8 mm.

  • Inside diameter tolerance for NPS 1⁄2 through NPS 8 is ±0.4 mm; for NPS 10 through NPS 24, ±0.8 mm.

  • The centering ring outside diameter tolerance is ±0.8 mm.
