TOBO STEEL GROUP CHINA
 |
| Place of Origin: | China |
| Brand Name: | TOBO |
| Certification: | CE/ISO |
| Model Number: | / |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | 1-100 |
| Packaging Details: | Inner package:plastic bag sealed package Outer package:carton package or wooden case package The lettering, nameplate, certificate for cryogenic valves are available We can customize the package for globe valve; |
| Delivery Time: | 3-5 days |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000pcs/month |
| Key Word1: | Knife Gate Valve | Design: | Cast / Forged |
|---|---|---|---|
| Sealing: | EPDM / NBR / PTFE / Viton / Stainless / Stelliete | Used For: | Tap-Water / Drink Water / Sea Water / Oil / Gas |
| Nominal Pressure: | Customize Pressure | Delivery Time: | 2-3days |
| Origin: | China | Body Material: | SS316 Cast Steel |
| High Light: | 150LB Wafer Gate Valve,Wafer Knife Gate Valve,Lug Knife Gate Valve |
||

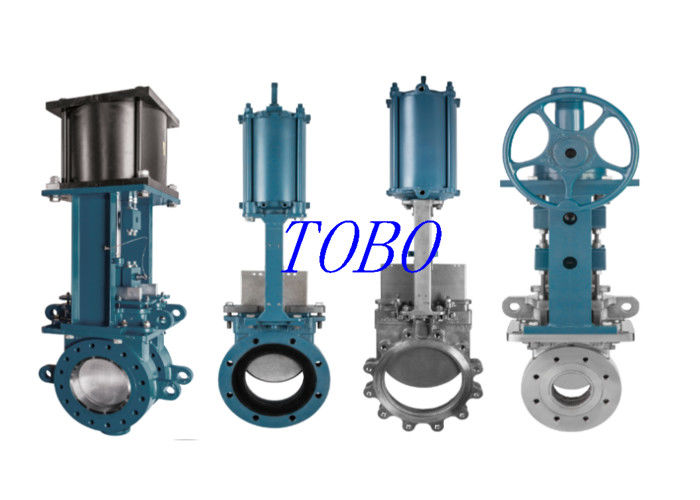

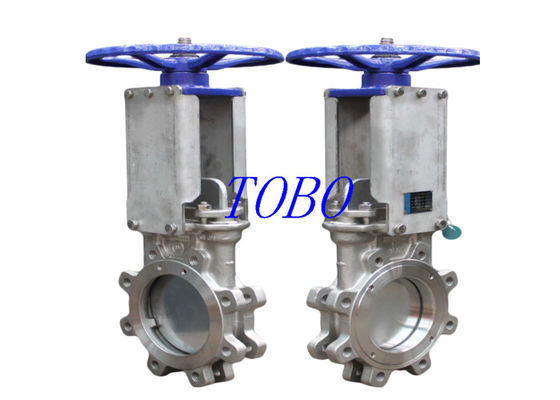

150lb/300lb/600lb Cast Iron Wafer Lug Knife Gate Valve With Metal Seat
Performance range
| PN | 1.0 | 1.6 | MPa |
| Strength test | 1.5 | 2.4 | |
| Sealing test | 1.1 | 1.76 | |
| Suitable temperature | PTFE≤200; Carbon steel≤425; Stainless steel≤600; Chrome-molybdenum-vanadium steel≥600 | ºC | |
| Media used | Syrup, paper pulp, sewage, coal paste, lime-ash water etc. | ||
| Title of part | Material |
| Body/bonnet | Carbon steel,Stainless steel |
| Gate | Carbon steel, Stainless steel |
| Stem | Stainless steel |
| Sealing face | Rubber. PTFE. Stainless steel. Carbide alloy |
| DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 800 | 900 |
| D0 | 180 | 180 | 220 | 220 | 230 | 280 | 360 | 360 | 400 | 400 | 40 | 530 | 530 | 600 | 600 | 680 | 680 |
| L | 48 | 48 | 50 | 50 | 57 | 57 | 70 | 70 | 76 | 76 | 89 | 89 | 114 | 114 | 127 | 127 | 154 |
| Hmax | 285 | 298 | 315 | 365 | 400 | 475 | 540 | 630 | 780 | 885 | 990 | 1100 | 1200 | 1450 | 1700 | 2000 | 2300 |
Specification:
| Technical Date | Material Specification | ||
| Nominal Diameter | DN40-DN600 | Valve Body | Ductile/cast iron |
| Nominal Pressure | PN10/PN16 |
Valve Disc |
Carst steel or Ductile Iron or Stainless Steel |
| Operation Temperature | -40°C~120°C | ||
| Flange Driling Standard | DIN2532-2533/BS EN 1092 | Seal Material | EPDM OR NBR |
| Suface Treatment | Painting |
Valve Spring |
Stainless Steel |
| Application |
Portable water, water distribution service & feed lines, sewage disposol, irrigation, fire protection pipe systerm, etc. |
||
|
Product Name
|
Material
|
|
Valve Body
|
Ductile iron, Carbon steel, Stainless steel
|
|
Knife
|
Stainless steel
|
|
Stem
|
Stainless steel
|
|
Handwheel
|
Cast iron
|
|
Sealing
|
NBR/EPDM/PTFE or Metal Seat
|
Specification of knife gate valve:
| Technical Date | |||||||||
| Nominal Diameter | DN50-800mm | ||||||||
| Nominal Pressure | PN10/PN16 | ||||||||
| Operation Temperature | -40°C~225°C | ||||||||
| Power | Electric | ||||||||
| Medium | paper pulp, sewage, Coal Slurry, Ash | ||||||||
| Material |
|
||||||||
