TOBO STEEL GROUP CHINA
 |
| Place of Origin: | China |
| Brand Name: | TOBO |
| Certification: | CE/ISO |
| Model Number: | Gate Valve |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | 1-100 |
| Packaging Details: | Inner package:plastic bag sealed package Outer package:carton package or wooden case package The lettering, nameplate, certificate for cryogenic valves are available We can customize the package for globe valve; |
| Delivery Time: | 3-5 days |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000pcs/month |
| Name: | Resilient Seated Gate Valve | Type: | Handwheel Operated Resilient Seated |
|---|---|---|---|
| Body: | Ductile Iron | End Connection: | Flange End |
| Applications: | Air, Fuel Gas, Feedwater, Steam | Pressure: | 24 Bar |
| Temperature: | High Temperature | Size: | 10" |
| High Light: | AS2129 Ductile Iron Gate Valve,10" Ductile Iron Gate Valve,Resilient Seated Gate Valve |
||

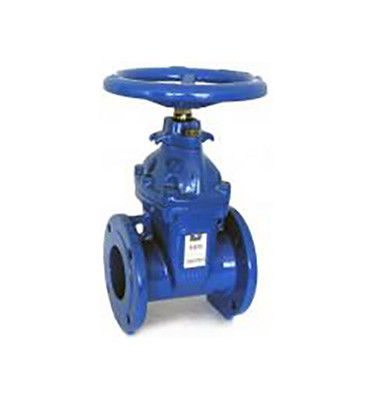

AS2129 Table D Ductile Iron Gate Valve , Resilient Seated Gate Valve
What is Gate Valve?
A gate valve can be defined as a type of valve that used a gate or wedge type disk and the disk moves perpendicular to flow to start or stop the fluid flow in piping.
A gate valve is the most common type of valve used in any process plant. It is a linear motion valve used to start or stop fluid flow. In service, these valves are either in a fully open or fully closed position.
When the gate valve is fully open, the disk of a gate valve is completely removed from the flow. Therefore virtually no resistance to flow. Due to this very little pressure drops when fluid passes through a gate valve.
To achieve proper sealing, when the valve is fully closed, 360° surface contact is required between disk and seats.
Gate valves should not be used for regulation or throttling of flow because accurate control is not possible.
The high velocity of the flow in the partially open valve may cause erosion of the disc and seating surfaces
and also creates vibration and noise.

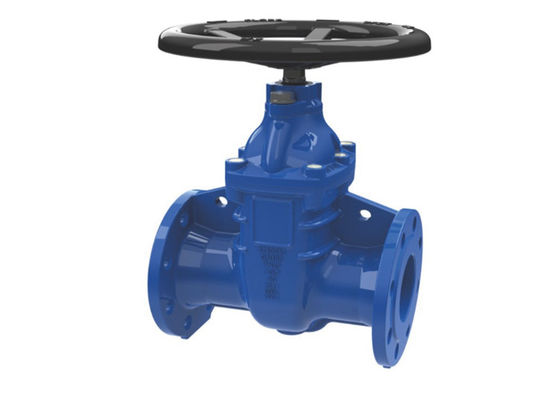

Resilient Seated Gate valve, Handwheel operated, ductile iron body (FBE coated internally/externally),
flanged ends to AS4087 B5 (AS2129 Table D) class 16- approved to AS2638.2
Sizes 2″ → 16″ (DN50→ DN400)
* Options: Key adaptor, Gearbox, ISO mounting flange for actuation
|
Valve Type |
CS / SS GATE VALVE - FL / BW |
|
|
Design Std |
BS EN ISO 10434 [BS 1414] / API 600 / API 602 / API 603/ASME B16.34 |
|
|
Size Range |
40 DN to 400 DN [1 1/2” to 16”] |
|
|
Body |
[CS - ASTM A 216 Gr. WCB] [SS - ASTM A 351 Gr.CF8 / CF8M] |
|
|
Trim |
AISI 410 / 304 / 316 |
|
|
Seat / Wedge |
13% Cr. Steel / AISI 410 / 304 / 316 |
|
|
Design Features |
Bolted Bonnet, OS & YT, HW & Gear operated |
|
|
Prorating |
ASME - Class 150 / 300 / 600 |
|
|
Face to Face |
ASME B 16.10 / EN 558 -1 / API 6D |
|
|
End Connection |
Flanged |
ASME B16.5, CLASS 150 / 300 / 600 |
|
Butt weld |
ASME B16.25 |
|
|
Testing Std. |
BS EN 12266 - 1 [BS 6755-1] / API 598 |
|
|
Optional |
Lantern Ring / indicator & Locking Device/ Renewable Seat / Stellite Hard facing / Jacketed Provision / RTJ Flanges / By Pass Arrangement / Higher Sizes / Special MOC: Austenitic and Duplex Stainless Steels |
|
Types of Gate Valves
There are three ways to classify the gate valve.
Types of Disk
Solid taper wedge
Flexible wedge
Split wedge or Parallel disks Valve
Types of Body Bonnet Joint
Screwed Bonnet
Bolted-Bonnet
Welded-Bonnet
Pressure-Seal Bonnet
Types of Stem movement
Rising Stem or OS & Y Type (Outside Stem and Screw Type)
Non-rising Stem type
Gate Valve Applications
Gate valves are used in almost all fluid services such as air, fuel gas, feedwater, steam, lube oil, hydrocarbon, and all most any services.
Some special gate valve is used in slurry and powder product also such as knife gate valve
Advantages of Gate Valve
Gate valve provides good
Pressure drop during operation is very less.
Most of the gate valve can be used as bi-directional
They are suitable for high pressure and temperature application and required less maintenance
Use:
For water, sewage and neutral liquid applications Valve designed for use up to 70°C Where applicable;
AS 4020 compliance, max temp = 40°C Note: Always observe pipe material recommended operating temperatures
Materials:
Gland flange, Ductile iron, 500-7 to AS 1831 body and bonnet
Coating Fusion bonded epoxy resin - Internally and externally to AS 4158
Stem Stainless steel 431
Stem sealing NBR wiper ring, 2 NBR O-rings
Wedge Ductile iron, 500-7 to AS 1831, core fully vulcanised with EPDM rubber, with integral wedge nut of
dezincification resistant brass, CZ 132 to AS 2345
Bushing Polyamide
Thrust collar and Dezincification resistant brass, stem seal box CZ 132 to AS 2345
Bonnet bolts DN50 - DN250 Stainless steel 304, sealed with hot melt DN300 - DN400 Grade 12.9, sealed with hot melt
Gland flange Stainless steel 316 bolts
Bonnet gasket EPDM rubber
Handwheel Ductile iron to AS 1831
Tests:
Hydraulic test to AS 2638.2: Seat: 16 bar Body: 24 bar Operating torque test
Optional extras:
Stem cap Flange gasket kits ISO flanging for actuation Gearbox User specified flange drilling
