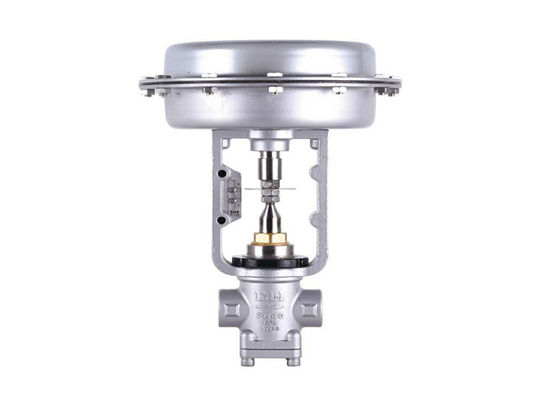

WCB Carbon Steel Pneumatic Control Valve API6D O Type Shut Off Ball Valve

WCB Carbon Steel Pneumatic Control Valve API6D O Type Shut Off Ball Valve

  • WCB Carbon Steel Pneumatic Control Valve API6D O Type Shut Off Ball Valve
  • WCB Carbon Steel Pneumatic Control Valve API6D O Type Shut Off Ball Valve
WCB Carbon Steel Pneumatic Control Valve API6D O Type Shut Off Ball Valve
Product Details:
Place of Origin: CHINA
Brand Name: TOBO
Certification: ISO
Model Number: /
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 51USD
Packaging Details: Usually bubble pack for each valve within carton box or plywood case, or special packaging upon customer requirements.
Delivery Time: 10-15DAYS
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram, Western Union
Supply Ability: 3000PCS/WEEK
Contact Now
Detailed Product Description
Name: Switch Ball Valve Port Size: 6 Inch
Power: Pneumatic Medium: Water,oil,gas
Est. Time(days): 15 Body Material: WCB,304,316,316L,2520,2507
Design Standard: API 608/API6D Pressure Range: PN1.6 ~ 16MPa; CLASS 150 ~900LB
Applicable Temperature: -40~+650℃ Single Package Size: 50X35X35 Cm
High Light:

WCB Pneumatic Control Valve

,

API6D Pneumatic Control Valve

,

WCB Shut Off Ball Valve

WCB Carbon Steel 304 316 316L Pneumatic O-type Shut-off Ball Valve Switch Ball Valve





Electric actuator is used for controlling valves of 0°-270° rotation and other similar products, such as butterfly valve, ball valve, damper, flapper valves, plug valves, louver valve and so on.

It is widely used in petroleum, chemical, water treatment, shipping, paper making, power plants, heating, light industry and other industries. It can be driven by 380V/220V/110V AC power or 24V/110V DC power. Control signal can be 4-20mA current signal or 0-10V voltage signal.

It can move the valve to desired position, and achieves automatic control. The maximum output torque is up to 2000N·m. (CE certificate approved)



Pneumatic ball valve is used to cut off or connect the medium in pipeline, suitable for two cutting or adjusting occasions.Can be used for water, steam, oil, nitric acid, acetic acid, oxidation medium, urea and other media.Widely used in paper making, petroleum, chemical industry, metallurgy, electric power, water treatment, environmental protection, petroleum, light industry and other industries in automatic control.



Standard specification:

Design standards GB/T12237, API 6D, API 608
Structure length GB/T12221, ASME B16.10
Flange connection HG, GB, JB, ASME B16.5
Pressure temperature GB/T9131, ASME B16.34
Inspection test GB/T13927, API 598
Quality certification ISO 9001, CE, TS
Structure and materials:
Body type Two - stage, integral, three - stage
Body material WCB,304,316,316L,2520,2507
Spool form O type
Spool material 2Cr13,304, 316, 316L and others
Seat material PTFE, PPL, metal
Packing material PTFE, flexible graphite
Channel form Two - way, three - way, four - way
Size range DN15 ~800mm; NPS 1/2 ~ 32"
Pressure range PN1.6 ~ 16MPa; CLASS 150 ~900LB
Applicable temperature -40~+650℃
Connection form Flange, clamp, thread, welding
Applicable medium Water, oil, gas and other media
Control mode Pneumatic piston actuator
Pneumatic Actuator:

Rack & pinion design.

Compact and light weight.

ISO 5211 mounting pattern.

Adjustable stops for both open and closed positions.

Accessory mounting dimensions to NAMUR specifications.

Machined gear teeth provide longest life and smoother operation.

High cycle life with low friction bearings on all moving and sliding surfaces.

Safety contained springs prevent hazards of inadvertent ejection during maintenance.

Modular design utilizing same body and end caps for both double-acting and spring-return versions.

Corrosion resistant with hard anodized body, PTFE coated end caps, and stainless steel fasteners.

Specifications:

Pressure Range: Max. Working pressure 10bar

Air pressure: 2.5bar~8bar

Adjustment Range: 90°± 5°

Ambient temperature: -20 ~ +90°C

Type: Double acting, Single acting (spring return)

Optional accessories: Solenoid valve, limite switch, electric position, air regulator

Lubrication: All the moving parts are coated with lubricants, extending their service life

Life Time: One million time



WCB Carbon Steel Pneumatic Control Valve API6D O Type Shut Off Ball Valve 0



WCB Carbon Steel Pneumatic Control Valve API6D O Type Shut Off Ball Valve 1WCB Carbon Steel Pneumatic Control Valve API6D O Type Shut Off Ball Valve 2
