Name: 2" 300PSI Flanged Ductile Iron Pipe Fittings Stainless Steel Grooved Pipe Coupling
Brand: TOBO
SKU: /
Price: 51 USD
Availability: InStock
Rating: 4.7 (148 reviews)

Home Products Ductile Iron Fitting

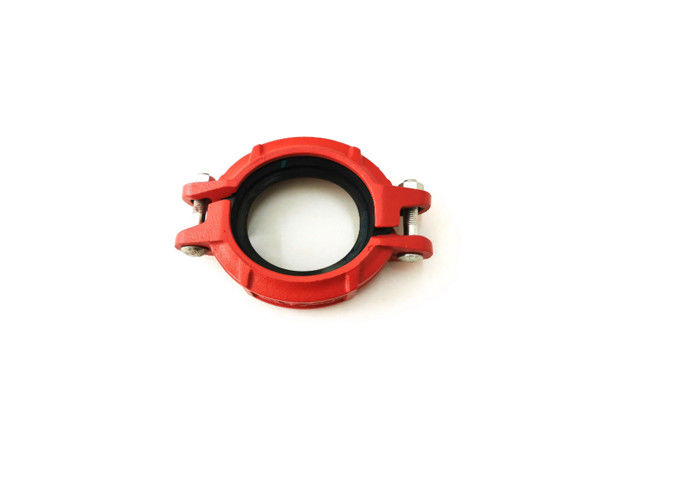

2" 300PSI Flanged Ductile Iron Pipe Fittings Stainless Steel Grooved Pipe Coupling

Product Details:

Place of Origin:	CHINA
Brand Name:	TOBO
Certification:	ISO
Model Number:	/

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	51USD
Packaging Details:	Usually bubble pack for each valve within carton box or plywood case, or special packaging upon customer requirements.
Delivery Time:	10-15DAYS
Payment Terms:	D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

Detailed Product Description

Place Of Origin:	Shanghai China	Connection:	Grooved
Packing:	Wooden Case / Carton Box	Size:	1/8
Pressure::	300PSI	Thread:	BSPP BSPT NPT
Surface:	Red	Model Number:	321/321A/321E/321H
Color:	Orange/Customized Color	Standard::	ISO 9001:2008
High Light:	Flanged Ductile Iron Pipe Fittings , Grooved Pipe Coupling , 300PSI Groove Coupling Pipe Fitting

Wholesale Stainless Steel Ductile Iron Flange Grooved Pipe Fittings Flange

standard of ASME B16.10M-2000.Schedule 10-40 pipe.
please see the item of OUTSIDE DIAMETER for inference if you adopt other standard.
You are welcome to contact our Export BussinessDivision.

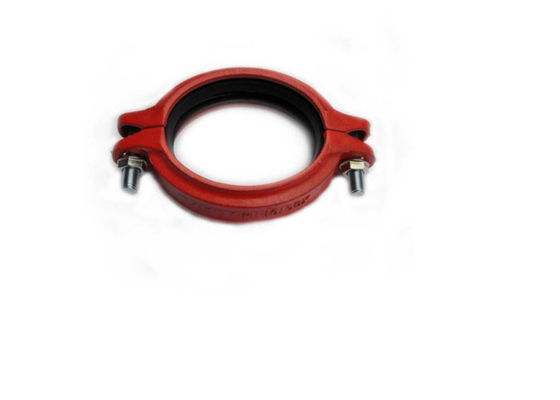

1 1/2''INCH 48.3MM Rigid Coupling

This couplings available where moderate pressures are expected or weight considerations are a factor.
This style couplings are designed with cross-ribbed construction to provide strong component for pressure piping systems and usually used in fire protection,feed water,oil or gas and ect.

GROOVED FITTINGS DETAILS
Item	Flexible coupling with red color
Surface	orange color painted
Material	Ductile Iron
Standard	ANSI,DIN,BS
Connection	Grooved
Size	1",1-1/4",1-1/2",2",2-1/2",3",4",5",6",8",10",12",14" ,16"
Diameter	DN25,DN32,DN40,DN50,DN65,DN80,DN100,DN125,DN150,DN200,DN250,DN300
Model	rigid coupling
Related products	90 degree Elbows, 45 degree Elbows, 22.5 degree Elbows, 11.25 degree Elbows, Tees, Reducing Tees, Crosses, Reducing Crosses, Mechanical Tees, Flanges,etc.
Certificate	BSI, ISO9001,FM
Applications	Suitable for Pipe lines connect of water, air, gas, oil and so on.
	Fire Fighting
Package	1. Cartons without pallets.	2. Cartons with pallets.
	Or as buyer’s requirements.
Delivery detail	According to the quantities and specifications of each order.Normal 1 x 20GP delivery time is from 30 to 45 days after receiving the deposit.

Material	Malleable iron/Carbon steel
Standard	Thread: ISO 7/1
	Dimension: ISO 49, DIN 2950,EN10242
Chemical property	(C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property	Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Type	Beaded with ribs or banded with ribs
	Beaded without ribs or banded wihtout ribs
	Round/square
Surface	Galvanized/ no galvanized/sandblasted
Color	Different custom
Model	Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection	Male, Female,SOCKET
Shape	Equal, Reducing
Certificate	BSI,ANAB,ISO9001,CE
Application	Home Decoration bracket bookshelf
	Buyer’s drawings or designs are available
Package	Cartons without pallet
	Cartons with pallet
	Double woven bags
	Or as buyer’s requirements
Delivery details	According to the quantities and specifications of each order
	Normal delivery time is from 30 to 45 days after receiving the deposit
