TOBO STEEL GROUP CHINA
 |
| Place of Origin: | China |
| Brand Name: | TOBO |
| Certification: | CE/ISO |
| Model Number: | Gate Valve |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | Inner package:plastic bag sealed package Outer package:carton package or wooden case package The lettering, nameplate, certificate for cryogenic valves are available We can customize the package for globe valve; |
| Delivery Time: | 3-5 days |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000pcs/month |
| Name: | Gate Valve | Material: | Brass |
|---|---|---|---|
| Body: | Brass | End Connection: | FNPT |
| Applications: | Air, Fuel Gas, Feedwater, Steam | Pressure: | PN10 |
| Temperature: | High Pressure Temperature | Size: | DN25 |
| High Light: | DN25 Stainless Steel Gate Valve,PN10 Stainless Steel Gate Valve,NPT End Female Gate Valve |
||

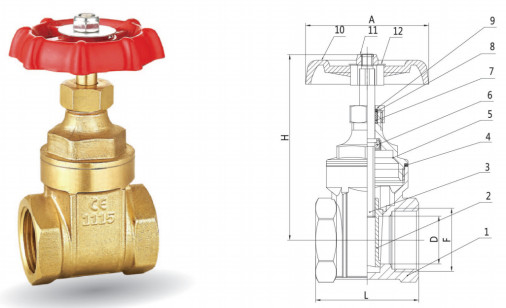

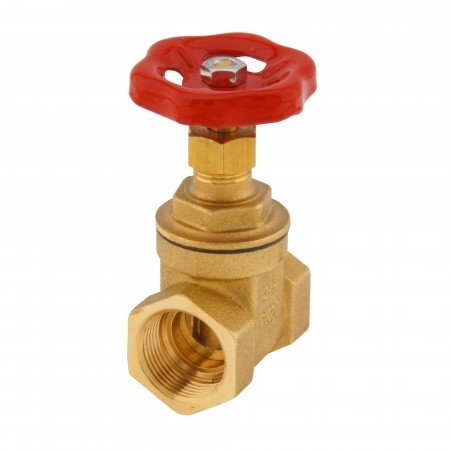

DN25 PN10 NPT End Female Gate Valve Brass Small Flow Resistance
Quick Details
| Material | Brass |
| Brand | TOBO |
| Exterior Finish | Stainless Steel |
| Inlet Connection Type | National Pipe Tapered |
| Outlet Connection Type | FNPT |
Gate valve: refers to the valve that the closing part (gate) moves along the vertical direction of the channel axis.
It is mainly used for cutting medium on the pipeline. That is, fully open or fully closed. In general, gate valves cannot be
used for regulating flow rate. It can be used for low temperature low pressure or high temperature high pressure, and can
be used according to the different material of the valve. However, gate valves are generally not used for conveying mud
and other media in the pipeline.
|
Valve Type |
CS / SS GATE VALVE - FL / BW |
|
|
Design Std |
BS EN ISO 10434 [BS 1414] / API 600 / API 602 / API 603/ASME B16.34 |
|
|
Size Range |
40 DN to 400 DN [1 1/2” to 16”] |
|
|
Body |
[CS - ASTM A 216 Gr. WCB] [SS - ASTM A 351 Gr.CF8 / CF8M] |
|
|
Trim |
AISI 410 / 304 / 316 |
|
|
Seat / Wedge |
13% Cr. Steel / AISI 410 / 304 / 316 |
|
|
Design Features |
Bolted Bonnet, OS & YT, HW & Gear operated |
|
|
Prorating |
ASME - Class 150 / 300 / 600 |
|
|
Face to Face |
ASME B 16.10 / EN 558 -1 / API 6D |
|
|
End Connection |
Flanged |
ASME B16.5, CLASS 150 / 300 / 600 |
|
Butt weld |
ASME B16.25 |
|
|
Testing Std. |
BS EN 12266 - 1 [BS 6755-1] / API 598 |
|
|
Optional |
Lantern Ring / indicator & Locking Device/ Renewable Seat / Stellite Hard facing / Jacketed Provision / RTJ Flanges / By Pass Arrangement / Higher Sizes / Special MOC: Austenitic and Duplex Stainless Steels |
|
Types of Gate Valves
There are three ways to classify the gate valve.
Types of Disk
Solid taper wedge
Flexible wedge
Split wedge or Parallel disks Valve
Types of Body Bonnet Joint
Screwed Bonnet
Bolted-Bonnet
Welded-Bonnet
Pressure-Seal Bonnet
Types of Stem movement
Rising Stem or OS & Y Type (Outside Stem and Screw Type)
Non-rising Stem type
Gate Valve Applications
Gate valves are used in almost all fluid services such as air, fuel gas, feedwater, steam, lube oil, hydrocarbon, and all most any services.
Some special gate valve is used in slurry and powder product also such as knife gate valve
Advantages of Gate Valve
Gate valve provides good
Pressure drop during operation is very less.
Most of the gate valve can be used as bi-directional
They are suitable for high pressure and temperature application and required less maintenance
