F182 316/304 Inner Ring Type B/Rir Filler Graphite Flat Metal Spiral Wound Gasket Class 150 For Oil And Gas Pipeline Sea

Product Details:

Place of Origin:	China
Brand Name:	TOBO
Certification:	ISO
Model Number:	SS316L, 304

Payment & Shipping Terms:

Minimum Order Quantity:	10 PCS
Packaging Details:	Plywood wooden cases
Delivery Time:	7work days
Payment Terms:	D/P, T/T, Western Union
Supply Ability:	30000PCS

Contact Now

Detailed Product Description

Flange Standard:	ANSI B16.5 ANSI B16.47 A/B	Service:	For Oil And Gas Pipeline Sealing
Pressure:	150lb 300lb 600lb 900lb 1500lb 2500lb	Gasket Standard:	B16.20
Specification:	1/2"-64"	HS Code:	8484100000
High Light:	316 Inner Ring Flange Gasket , Class 150 Graphite Flange Gasket , Gas Pipeline Graphite Flange Gasket

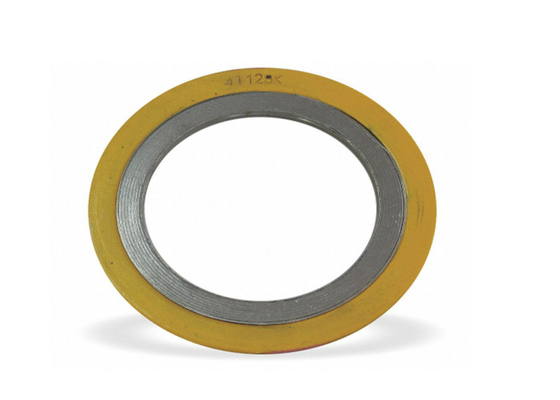

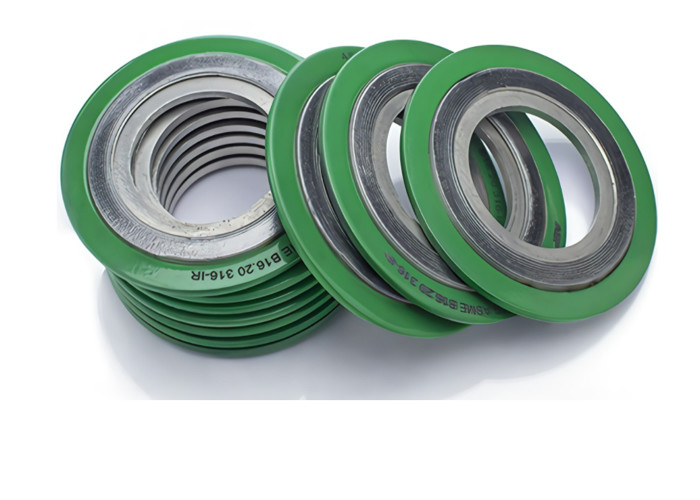

316/304 Inner Ring Type B/Rir Filler Graphite Flat Metal Spiral Wound Gasket

FILLED MATERIAL AND MAIN PROPERTIES

Filler	Temperature(ºC )	Max Pressure	Media	Compression(% )	Rebound(% )	Relaxation(%)
F.G.	-220--550	250 BAR	corrosive	18--30	≥17	≤18
ASB	-150--450	100 BAR	vulgaris air tightness	18--30	≥19	≤28
PTFE	-200-- 250	100 BAR	corrosive	18--30	≥15	≤13
NAF	-100--350	100 BAR	vulgaris air tightness	18--30	≥19	≤28
MICA	-150--800	100 BAR	H-TEMP	18--30	≥19	/
CER	-200--1090	100 BAR	Ultra-TEMP	18--40	≥19	/

MATERIALS FOR OD AND ID,MAIN PROPERTIES

Materials	Mark	Hardness(HB)	Temperature(°C)
Carbon steel	CS	120	-40~+540
SUS 304	304	130~180	-195~+550
SUS 316L	316L	130~180	-100~+550
SUS 321	321	130~190	-195~+760
HASTELLOR-B2	HASTB	215	-185~+1090
INCONEL-600	INC600	150	-100~+1090
MONEL-400	MON	150	-130~+820
Ti	T2	215	-195~+1090

Basic Type
ASME B16.20 Metal Sealing Spiral Wound Gasket

Basic construction type, inner and outer diameters are reinforced with several piles of metal without filler to give greater stability and better compression characteristics. - Suitable for tongue and groove, male and female or grooved to flat face flange assemblies.

Inner Ring Type
ASME B16.20 Metal Sealing Spiral Wound Gasket

Solid inner metal ring acts as a compression stopper. To prevent accumulation of solids, reduce turbulent flow of process fluids and minimize erosion, damages of gasket between flange bore and the inside diameter, the annular space is filled up by solid inner metal ring. - Suitable for male and female pipe flanges.

Outer Ring Type
ASME B16.20 Metal Sealing Spiral Wound Gasket

Solid outer ring accurately locates the gasket on the flange face to give the additional radial strength to prevent the gasket blowout and acts as a compression limiter. In case of installing the outer ring, it is very easy to install the gasket to flange face because the end of outer ring will touch at bolts - Suitable for use with flat face and raised face flanges. For class 900 and above an internal ring is recommended.

Inner & Outer Rings Type
ASME B16.20 Metal Sealing Spiral Wound Gasket

A inner ring and outer ring type gasket will give an additional compression limiting stopper for gasket inner and outer side. It will prevent the corrosions on flange face at annular space. - Suitable for use with flat face and raised face flanges and specified for high pressure / temperature service - Class 900 and above or where corrosive or toxic media are present.

Name: F182 316/304 Inner Ring Type B/Rir Filler Graphite Flat Metal Spiral Wound Gasket Class 150 For Oil And Gas Pipeline Sea
Brand: TOBO
SKU: SS316L, 304
Price: 1 USD
Availability: InStock
Rating: 5 (176 reviews)

Product Description

1.Name:20in 150# SUS304 Metal Graphite Spiral Wound Gasket ASME B16.20

2. Type

Type	Thickness(mm)
Basic form	3.2	4.5
With inner ring		4.5
With outer ring		4.5
With inner and outer ring		4.5

3. Structure type:

Filler	Hoop	Inner ring	Outer ring
Asbestos	SUS 304	Carbon steel	Carbon steel
Graphite	SUS 316	SUS 304	SUS 304
PTFE	SUS 316L	SUS 316	SUS 316
		SUS 316L	SUS 316L

Flange type and Spiral Wound Gasket form

Flange type	Spiral Wound Gasket form
Flat face flange(F.F)	Gasket with an outer ring
Flat face flange(F.F)	Gasket with an inner and outer ring
Raised face flange(R.F)	Gasket with an outer ring
Raised face flange(R.F)	Gasket with an inner and outer ring
