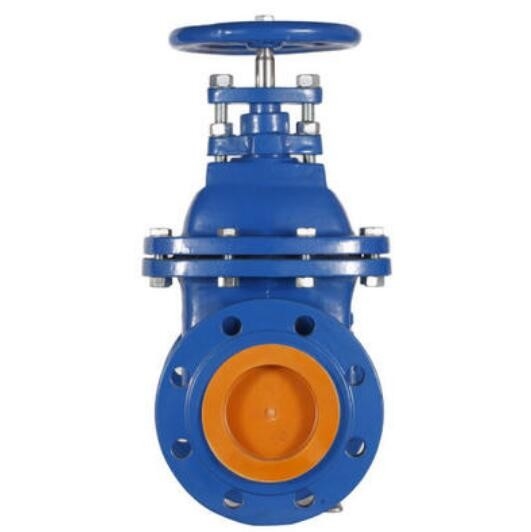

Class 600~2500 Pressure Seal Gate Valve Cast Iron Water Lug Flange

Class 600~2500 Pressure Seal Gate Valve Cast Iron Water Lug Flange

  • Class 600~2500 Pressure Seal Gate Valve Cast Iron Water Lug Flange
Class 600~2500 Pressure Seal Gate Valve Cast Iron Water Lug Flange
Product Details:
Place of Origin: China
Brand Name: TOBO
Certification: CE/ISO
Model Number: Gate Valve
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Inner package:plastic bag sealed package Outer package:carton package or wooden case package The lettering, nameplate, certificate for cryogenic valves are available We can customize the package for globe valve;
Delivery Time: 3-5 days
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000pcs/month
Contact Now
Detailed Product Description
Name: Steel Gate Valve Type: Resilient Bolted Stem
Body: Cast Iron End Connection: Flange End
Applications: Air, Fuel Gas, Feedwater, Steam Face To Face: ASME B16.10
Temperature: High Temperature Size: DN100
High Light:

Class 600 Stainless Steel Gate Valve

,

ASME Stainless Steel Gate Valve

,

Stainless Steel Gate Valve DN100

Class 600~2500 Pressure Seal Gate Valve Cast Iron Water Lug Flange Price List

OS&Y, Rising stem, Flexible wedge
Pressure seat Bonnet, Threaded or welded seat ring
ASTM A216 WCB,A217 WC6,A351CF8,A351CF8M,
A351 CF3,A351 CF3M,A351 CN7M

Standards compliance
Design and Manufacture: AMSI B16.34,API600 API6D,BS1414
Face to face(end to end):ANSI B16.10,API6D
Flanged connection : ANSI B16.5
Butt welded end: ANSI B16.25
Test and inspection:API598,API6D

A. Back up ring: Absorbs thrust applied by internal pressure
B. Thrust ring: Protects the soft metallic gasket from deformation
C. Gasket: Unique angular design provides superior sealing

Materials List
NO. Part name Material
23 Grease nipple Brass
22 Grub screw Carbon steel
21 Hand wheel nut Carbon steel
20 Hand wheel Malleable iron/cast steel/ductile iron/fabricated steel
19 Yoke nut Carbon steel/SS
18 Eye bolt and nut A 193 B7/A194 2H~A193 B8/A194 8
17 Pin Carbon steel/stainless steel
16 Stem Nut A 439-D2/cu-alloy
15 Gland flange Carbon steel/equivalent to body material
14 Gland Stain less steel
13 Gland bush See body material
12 Back seat
11 Stem
10 Seat ring
09 Wedge



NO. Part name WCB LCB WC6 WC9
08 Bolt and nut A193 Gr B7/A194 Gr 2H A320 Gr L7/A194 Gr 4 A193 Gr B16/A194 Gr 4/7 A193 Gr B16/A194 Gr 4/7
07 Gland packing Graphite Graphite Graphite Graphite
06 Gasket Soft iron Soft iron SS304 SS304
05 Thrust ring A105 A182 F304 A182 F11 A182 F22
04 Back up ring A105 A182 F304 A182 F11 A182 F22
03 Yoke A216 Gr WCB A352 Gr LCB A271 Gr WC6 A271 Gr WC9
02 Bonnet A216 Gr WCB A352 Gr LCB A271 Gr WC6 A271 Gr WC9
01 Body A216 Gr WCB A352 Gr LCB A271 Gr WC6 A271 Gr WC9



NO. Part name C5 C12 CF8 CF8M
08 Bolt and nut A193 Gr B7/A194 Gr 2H A193 Gr B16/A194 Gr 4/7 A193 B8/A194 8 A193 B8M/A194 8M
07 Gland packing Graphite Graphite Graphite Graphite
06 Gasket SS304 SS304 SS304 SS316
05 Thrust ring A182 F22 A182 F22 A182 F304 A182 F316
04 Back up ring A182 F22 A182 F22 A182 F304 A182 F316
03 Yoke A217 Gr C5 A217 Gr C12 A351 Gr CF8 A351 Gr CF8M
02 Bonnet A217 Gr C5 A217 Gr C12 A351 Gr CF8 A351 Gr CF8M
01 Body A217 Gr C5 A217 Gr C12 A351 Gr CF8 A351 Gr CF8M

CLASS 600~2500 PRESSURE-SEAL GATE VALVE

Dimensions
Class 600
Size inch 2 2-1/2 3 4 5 6 8 10 12 14 16 18 20 24
L-L1 mm 292 330 356 432 508 559 660 787 838 889 991 1092 1194 1397
L-SP mm 178 216 254 305 381 457 584 711 813 889 991 1092 1194 1397
H mm 525 610 650 775 825 1050 1200 1450 1600 1800 2050 2245 2400 2670
K mm 250 250 300 350 400 500 600 600 400~ 450~ 450~ 500~ 500~ 550~
Wt kg 35 55 62 105 160 205 400 690 815 1125 1650 2025 2325 3980
Class 900
Size inch 2 2-1/2 3 4 5 6 8 10 12 14 16 18 20
L-L1 mm 368 419 381 457 559 610 737 838 965 1029 1130 1219 1321
L-SP mm 216 254 305 356 432 508 660 787 914 991 1092 1219 1321
H mm 550 645 670 790 855 1075 1225 1500 1635 1830 2145 2300 2485
K mm 300 300 300 400 450 300~ 350~ 400~ 400~ 450~ 500~ 500~ 550~
Wt kg 75 90 96 136 225 275 490 825 1150 1500 2100 2750 3400
Class 1500
Size inch 2 2-1/2 3 4 5 6 8 10 12
L-L1 mm 368 419 470 546 673 705 832 991 1130
L-SP mm 216 254 305 406 483 559 711 864 991
H mm 570 670 725 850 890 1125 1235 1520 1650
K mm 300 300 300~ 300~ 300~ 350~ 350~ 400~ 400~
Wt kg 95 110 125 205 256 330 655 1200 2010
Class 2500
Size inch 2 2-1/2 3 4 5 6
L-L1 mm 451 508 578 673 794 914
L-SP mm 279 330 368 457 533 610
H mm 600 695 740 890 970 1135
K mm 400 450 300~ 350~ 350~ 350~
Wt kg 110 130 140 225 295 1480

Gear operation suggested. Dimensions on request.
Abbreviation: SP-short pattern





What is Gate Valve?



A gate valve can be defined as a type of valve that used a gate or wedge type disk and the disk moves perpendicular to flow to start or stop the fluid flow in piping.

A gate valve is the most common type of valve used in any process plant. It is a linear motion valve used to start or stop fluid flow. In service, these valves are either in a fully open or fully closed position.

When the gate valve is fully open, the disk of a gate valve is completely removed from the flow. Therefore virtually no resistance to flow. Due to this very little pressure drops when fluid passes through a gate valve.

To achieve proper sealing, when the valve is fully closed, 360° surface contact is required between disk and seats.

Gate valves should not be used for regulation or throttling of flow because accurate control is not possible.

The high velocity of the flow in the partially open valve may cause erosion of the disc and seating surfaces and also creates vibration and noise.



Valve Type

CS / SS GATE VALVE - FL / BW

Design Std

BS EN ISO 10434 [BS 1414] / API 600 / API 602 / API 603/ASME B16.34

Size Range

40 DN to 400 DN [1 1/2” to 16”]

Body

[CS - ASTM A 216 Gr. WCB] [SS - ASTM A 351 Gr.CF8 / CF8M]

Trim

AISI 410 / 304 / 316

Seat / Wedge

13% Cr. Steel / AISI 410 / 304 / 316

Design Features

Bolted Bonnet, OS & YT, HW & Gear operated

Prorating

ASME - Class 150 / 300 / 600

Face to Face

ASME B 16.10 / EN 558 -1 / API 6D

End Connection

Flanged

ASME B16.5, CLASS 150 / 300 / 600

Butt weld

ASME B16.25

Testing Std.

BS EN 12266 - 1 [BS 6755-1] / API 598

Optional

Lantern Ring / indicator & Locking Device/ Renewable Seat / Stellite Hard facing / Jacketed Provision / RTJ Flanges / By Pass Arrangement / Higher Sizes / Special MOC: Austenitic and Duplex Stainless Steels



PN

DN

Size(mm)

L

D

D1

D2

B

N-φ

H

1.6MPa

25

160

115

85

65

14

4-14

275

32

180

135

100

78

16

4-18

280

40

200

145

110

85

16

4-18

330

50

230

160

125

100

16

4-18

350

65

290

180

145

120

18

4-18

370

80

310

195

160

135

20

8-18

400

100

350

215

180

155

20

8-18

415

125

400

245

210

185

22

8-18

460

150

480

280

240

210

24

8-23

510

200

550

335

295

265

26

12-23

710

250

650

405

355

320

30

12-25

786

300

750

460

410

375

30

12-25

925



Types of Gate Valves



There are three ways to classify the gate valve.

  1. Types of Disk

    1. Solid taper wedge

    2. Flexible wedge

    3. Split wedge or Parallel disks Valve

  2. Types of Body Bonnet Joint

    1. Screwed Bonnet

    2. Bolted-Bonnet

    3. Welded-Bonnet

    4. Pressure-Seal Bonnet

  3. Types of Stem movement

    1. Rising Stem or OS & Y Type (Outside Stem and Screw Type)

    2. Non-rising Stem type

Features:



● Flat-bottomed seat traditional gate valves are usually deposited in the bottom groove of the valve due to external objects

such as stone, wood, cement, paper, debris, etc., after flushing the pipe with water. Cause cannot close tightly and form slack

phenomenon, soft-sealing gate valve using the same as the pipe at the bottom of the flat design, not easy to cause debris deposition,

the fluid flow unimpeded, the whole package glue valve plate is made of high quality rubber, within the whole outsourcing, domestic

first-class rubber vulcanization technology make the valve plate after vulcanization can ensure accurate geometry size, and rubber

and nodular cast iron gate connecting firm, not easy to fall off and elastic memory preferred.

● The corrosion resistant valve body is painted with powder and epoxy resin to prevent corrosion and rust of the valve body, and can

be used in sewage system.

● Not easily broken into traditional cast iron.



Class 600~2500 Pressure Seal Gate Valve Cast Iron Water Lug Flange 0
