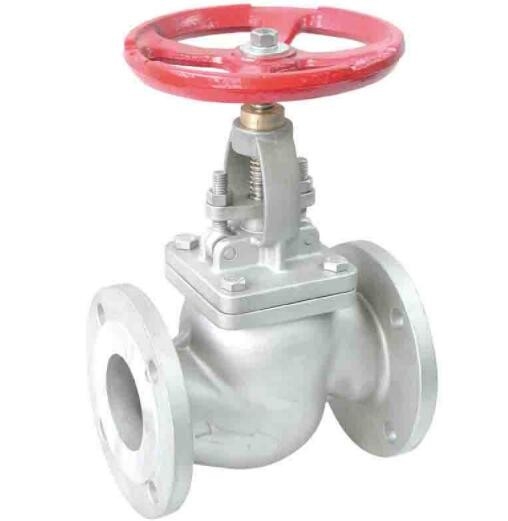

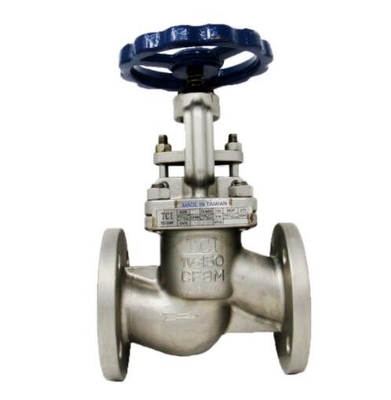

ANSI B16.10 A351 CF8 Flexible Wedge Rising Stem Stainless Steel Globe Valve

ANSI B16.10 A351 CF8 Flexible Wedge Rising Stem Stainless Steel Globe Valve

  • ANSI B16.10 A351 CF8 Flexible Wedge Rising Stem Stainless Steel Globe Valve
  • ANSI B16.10 A351 CF8 Flexible Wedge Rising Stem Stainless Steel Globe Valve
ANSI B16.10 A351 CF8 Flexible Wedge Rising Stem Stainless Steel Globe Valve
Product Details:
Place of Origin: China
Brand Name: TOBO
Certification: API ISO TS CE
Model Number: A351 CF8
Payment & Shipping Terms:
Minimum Order Quantity: 5Pcs
Price: Negotiation
Packaging Details: Carton, Ply-Wooden case or according to the clients request
Delivery Time: 10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000Pcs per Month
Contact Now
Detailed Product Description
Name: Stainless Steel Flange End Globe Valve Material: A351 CF8
Ends: Flange Application: Gas,Oil,Water
Size: DN200 Advantage: Shorter Stroke
Tempreture: High Tempreture Stem Thread Position: Outside Screw Stem Globe Valve
High Light:

ANSI B16.10 Steel Globe Valve

,

Flexible Wedge Rising Globe Valve

,

A351 CF8 Steel Globe Valve

A351 CF8 DN300 PN16 OS&YCAST STEAM VALVE FLANGED CAST STEEL FLANGED GLOBE VALVE

Globe valves

Size: DN15-300mm
Pressure: Pressure: PN 10/16/25, ANSI150/300lb
Actuator: Manual
Type: Bolted Bonnet, OS&Y, straight/Y type/right angle
Standard: DIN, BS, API
Face to Face Dimension: DIN3202 or ANSI B16.10,
Flanged Dimension: DIN2501, ANSI B16.5
Industrial applications: Petroleum, Chemical, Paper Making, Fertilizer, Coal Mining, water treatment and etc.

  • Rising Stem
  • OS&Y, Flexible Wedge
  • Body: ASTM A351 Gr. CF8M
  • Disc: ASTM A351 Gr. CF8M
  • Stem: SS316
  • Packing: PTFE
  • Face to Face: ANSI B16.10
  • Flange Dimensions: ANSI B16.5 150
  • Test Standard: API 598
  • NACE MR-0175 Full Compliance



Actuation handwheel
Connection for mounting between ANSI 150 and DIN PN 10/16 pipe flanges.
DN: 15, 20, 25, 32, 40, 50, 65, 80, 100, 125, 150, 200
PN: 16
Seal Material SS AISI 420
Tmax -10°C/+300°C
Valve Type

Globe valve, rising stem


ANSI B16.10 A351 CF8 Flexible Wedge Rising Stem Stainless Steel Globe Valve 0

ANSI B16.10 A351 CF8 Flexible Wedge Rising Stem Stainless Steel Globe Valve 1

Carbon Steel ANSI 300 Flanged Globe Valve with metal seat. Designed and manufactured to BS 1873, Face to Face to ASME B16.10 with flanges to ASME B16.5, Tested by EN 12266-1. Stainless Steel reinforced graphite gasket and flexible graphite packing. 13CR reinforced seats and disc for greater durability and wear. Great for steam and high temperature applications. Globe Valves are also regularly used over gate valves or other manual control valves where the user wants to achieve a greater degree of flow control. As the shaft comes down it has a 'globe shape' on the bottom of it which slowly cuts down the flow before shutting off on the seat. All globe valves come with cast heat numbers to give quality assurance for testing and mil certificates.

Body designs of Globe valves

There are three primary body designs for Globe valves, namely..

Tee Pattern or Z-body

ANSI B16.10 A351 CF8 Flexible Wedge Rising Stem Stainless Steel Globe Valve 2

Angle Pattern

ANSI B16.10 A351 CF8 Flexible Wedge Rising Stem Stainless Steel Globe Valve 3
Wye Pattern or Y-body body

ANSI B16.10 A351 CF8 Flexible Wedge Rising Stem Stainless Steel Globe Valve 4



Disk and Seat and Stem of Globe valves

Disk.. The most common disk designs for Globe valves are.. ball disk, composition disk and the plug disk. Ball disk design is used primarily in low pressure and low temperature systems. It is capable of throttling flow, but in principle it is applied to stop and start flow.
Composition disk design uses a hard, non-metallic insert ring on the disk, which ensures a tighter closure.
Plug disk design provides better throttling than ball or composition designs. They are available in many different designs and they are all long and tapered.

Seat.. Globe valve seats are either integrated or screwed in to the valve body. Many Globe valves have backseats inside the Bonnet. Back seats provides a seal between the stem and Bonnet and prevents system pressure from building against the valve pakking, when the valve is fully open. Back seats are often applied in Globe valves.

Stem.. Globe valves uses two methods for connecting the disk and the stem.. the T-slot and the disk nut construction. In the T-slot design, the disk slides over the stem, while in the disk nut design, the disk is screwed into the stem.

ANSI B16.10 A351 CF8 Flexible Wedge Rising Stem Stainless Steel Globe Valve 5

ANSI B16.10 A351 CF8 Flexible Wedge Rising Stem Stainless Steel Globe Valve 6

ANSI B16.10 A351 CF8 Flexible Wedge Rising Stem Stainless Steel Globe Valve 7
