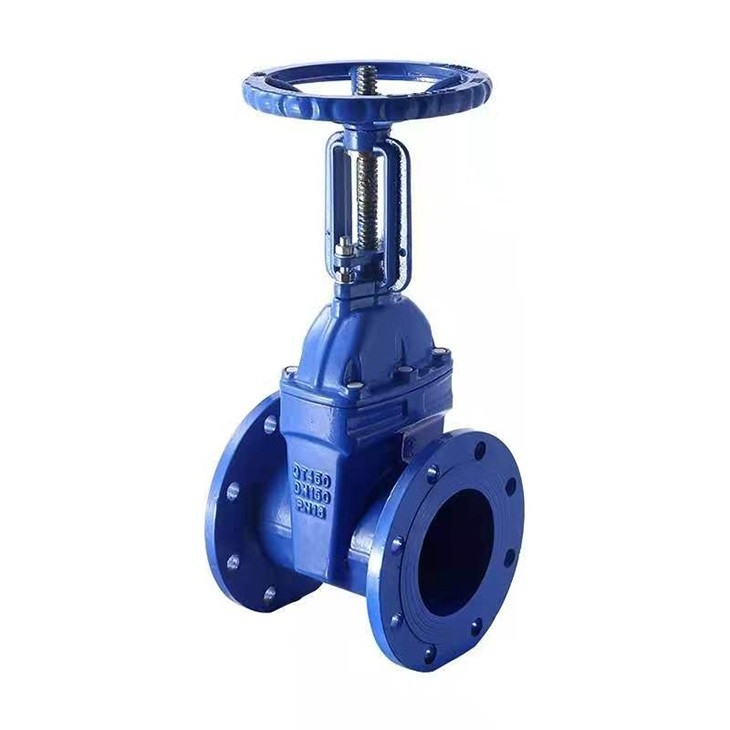

Cast Iron Water Lug Flange Class 150lb~600lb Cryogenic Gate Valve

Cast Iron Water Lug Flange Class 150lb~600lb Cryogenic Gate Valve

  • Cast Iron Water Lug Flange Class 150lb~600lb Cryogenic Gate Valve
Cast Iron Water Lug Flange Class 150lb~600lb Cryogenic Gate Valve
Product Details:
Place of Origin: China
Brand Name: TOBO
Certification: CE/ISO
Model Number: Gate Valve
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Inner package:plastic bag sealed package Outer package:carton package or wooden case package The lettering, nameplate, certificate for cryogenic valves are available We can customize the package for globe valve;
Delivery Time: 3-5 days
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000pcs/month
Contact Now
Detailed Product Description
Name: Steel Gate Valve Type: Resilient Bolted Stem
Body: Cast Iron End Connection: Flange End
Applications: Air, Fuel Gas, Feedwater, Steam Face To Face: ASME B16.10
Temperature: High Temperature Size: DN100
High Light:

Water Lug Flange Cryogenic Gate Valve

,

600lb Cryogenic Gate Valve

,

Cast Iron Cryogenic Gate Valve

Cast Iron Water Lug Flange CLASS 150LB~600LB CRYOGENIC GATE VALVE

API Cryogenic Gate Valve



CLASS 150LB~600LB CRYOGENIC GATE VALVE

BOLTED LENGTHEN BONNET,Threaded or welded seat ring

Full bore,OS&Y,Rising stem,Flexible wedge

Pressure relief hole on seat

Stainless trim

ASTM A352 LCB,LC1,LC2,LC3,LC4

A351 CF8,A351 CF8M

Standards compliance

Design and Manufacture: API 600,API 6D,BS1414

Face to face (end to end): ANSI B16.10,API 6D

Flanged connection: 2~~24~to ANSI B16.5

Butt welded end: ANSI B16.25

Test and inspection: API 598,API 6D

Material specification

NO.
Part
A352 LCB
A352 LC1
A352 LC2
A352 LC3
A352 LC4
A352 CF8
01
Body
A352 LCB
A352 LC1
A352 LC2
A352 LC3
A352 LC4
A352 CF8
02
Seat ring
A182 F304+STL
A182 F304+STL
A182 F304+STL
A182 F304+STL
A182 F304+STL
A182 F304+STL
03
Wedge
A352 LCB+STL
A352 LC1+STL
A352 LC2+STL
A352 LC3+STL
A352 LC4+STL
A352 CF8+STL
04
Stem
A182 F6a
A182 F304
05
Gasket
Spiral wound/Soft Iron/PTFE
06
Bolt
A320 L7
A193 B8
07
Nut
A193 2H
A194 8
08
Back seat
A182 F6a
A182 F304+STL
09
Yoke
A352 LCB
A352 LC1
A352 LC2
A352 LC3
A352 LC4
A352 CF8
10
Gland Bocking
Graphite
11
Gland
A182 F6a
A182 F6a
A182 F6a
A182 F6a
A182 F6a
A182 F6a
12
Gland Flange
A352 LCB
A352 LC1
A352 LC2
A352 LC3
A352 LC4
A352 CF8
13
Stem nut
Cu-Aolly,A439 D-2
14
Yoke nut
A194 2H
15
Handwheel
Malleable Iron/cast steel/Ducile/Fabricated
16
Handwheel nut
A194 2H



17
Nameplate
Stainless steel
18
Pin
A182 F6a
Working temperature
-46 font
-60 font
-73 font
-101 font
-115 font
-196 font

CLASS 150LB~600LB CRYOGENIC GATE VALVE

Class
Dimensions
150LB
Size
inch
2
2-1/2
3
4
6
8
10
12
14
16
18
20
24
26
28
30
32
34
36
L-RF
mm
178
191
203
229
267
292
330
356
381
406
432
457
508
559
610
610
710
762
71
L1-BW
mm
216
241
283
305
403
419
457
502
572
610
660
711
813
864
914
914
965
1016
1016
L2-RTJ
mm
191
203
216
241
279
305
343
368
394
419
445
470
521
559
610
610
710
762
711
H
mm
540
610
690
780
980
1180
1390
1620
1810
1970
2410
2410
3210
3600
3880
4000
4320
4310
5100
K
mm
200
200
250
600
350
350
400
450
500
500
600
750
750
915
915
915
1000
1000
1000
Wt
RF
kg
23
33
40
54
91
132
240
360
45
589
630
780
1240
1920
2432
2980
3161
3450
3980
BW
kg
19
29
37
48
85
126
210
340
465
509
580
740
1130
1720
1810
2670
2870
3250
3370
RTJ
kg
24
35
43
57
94
135
205
389
500
593
645
790
1260
1950
2470
3000
3200
3487
4000
300LB
Size
inch
2
2-1/2
3
4
6
8
10
12
14
16
18
20
24
26
28
30
32
34
36
L-RF
mm
216
241
283
305
403
419
457
502
762
838
914
991
1143
1245
1346
1397
1524
1626
1727
L1-BW
mm
L2-RTJ
mm
232
257
298
321
419
435
473
518
778
854
930
1010
1165
1270
1372
1422
1553
1654
1756
H
mm
540
630
690
780
980
1080
1390
1020
1810
1970
2410
2820
3200
3700
4320
4510
4600
4400
5100
K
mm
200
200
250
300
350
350
400
450
500
500
600
750
750
915
915
915
1000
1000
1000
Wt
RF
kg
27
49
53
80
152
245
380
610
758
1100
1240
1700
2380
2930
3475
4310
5100
4930
5240
RTJ
kg
BW
kg
24
41
45
64
120
194
310
560
710
980
1000
1550
2120
2680
3100
4100
4610
4810
5000
600LB
Size
inch
2
2-1/2
3
4
6
8
10
12
14
16
18
20
24
26
28
30
32
34
36
L-RF
mm
292
330
356
432
559
660
787
838
889
991
1092
1194
1397
1448
1549
1651
1778
1930
2083
L1-BW
mm
L2-RTJ
mm
295
333
359
435
562
664
791
841
892
994
1095
1200
1407
1461
1562
1664
1794
1946
2099
H
mm
560
680
710
870
1020
1210
1420
1680
1910
2030
2530
3100
3420
3700
3980
4200
4520
4530
5320
K
mm
200
250
300
350
450
500
600
750
850
850
960
960
1000
1000
1250
1250
1500
1650
1800
Wt
RF
kg
39
60
78
132
372
464
730
970
1360
1695
2109
2610
3910
4450
5050
5340
6920
7520
8910
RTJ
kg
BW
kg
36
54
61
110
320
434
690
930
1280
1510
1930
2210
3540
4000
4510
4830
6400
7000
8000

Cast Iron Water Lug Flange Class 150lb~600lb Cryogenic Gate Valve 0



What is Gate Valve?



A gate valve can be defined as a type of valve that used a gate or wedge type disk and the disk moves perpendicular to flow to start or stop the fluid flow in piping.

A gate valve is the most common type of valve used in any process plant. It is a linear motion valve used to start or stop fluid flow. In service, these valves are either in a fully open or fully closed position.

When the gate valve is fully open, the disk of a gate valve is completely removed from the flow. Therefore virtually no resistance to flow. Due to this very little pressure drops when fluid passes through a gate valve.

To achieve proper sealing, when the valve is fully closed, 360° surface contact is required between disk and seats.

Gate valves should not be used for regulation or throttling of flow because accurate control is not possible.

The high velocity of the flow in the partially open valve may cause erosion of the disc and seating surfaces and also creates vibration and noise.



Valve Type

CS / SS GATE VALVE - FL / BW

Design Std

BS EN ISO 10434 [BS 1414] / API 600 / API 602 / API 603/ASME B16.34

Size Range

40 DN to 400 DN [1 1/2” to 16”]

Body

[CS - ASTM A 216 Gr. WCB] [SS - ASTM A 351 Gr.CF8 / CF8M]

Trim

AISI 410 / 304 / 316

Seat / Wedge

13% Cr. Steel / AISI 410 / 304 / 316

Design Features

Bolted Bonnet, OS & YT, HW & Gear operated

Prorating

ASME - Class 150 / 300 / 600

Face to Face

ASME B 16.10 / EN 558 -1 / API 6D

End Connection

Flanged

ASME B16.5, CLASS 150 / 300 / 600

Butt weld

ASME B16.25

Testing Std.

BS EN 12266 - 1 [BS 6755-1] / API 598

Optional

Lantern Ring / indicator & Locking Device/ Renewable Seat / Stellite Hard facing / Jacketed Provision / RTJ Flanges / By Pass Arrangement / Higher Sizes / Special MOC: Austenitic and Duplex Stainless Steels



PN

DN

Size(mm)

L

D

D1

D2

B

N-φ

H

1.6MPa

25

160

115

85

65

14

4-14

275

32

180

135

100

78

16

4-18

280

40

200

145

110

85

16

4-18

330

50

230

160

125

100

16

4-18

350

65

290

180

145

120

18

4-18

370

80

310

195

160

135

20

8-18

400

100

350

215

180

155

20

8-18

415

125

400

245

210

185

22

8-18

460

150

480

280

240

210

24

8-23

510

200

550

335

295

265

26

12-23

710

250

650

405

355

320

30

12-25

786

300

750

460

410

375

30

12-25

925



Types of Gate Valves



There are three ways to classify the gate valve.

  1. Types of Disk

    1. Solid taper wedge

    2. Flexible wedge

    3. Split wedge or Parallel disks Valve

  2. Types of Body Bonnet Joint

    1. Screwed Bonnet

    2. Bolted-Bonnet

    3. Welded-Bonnet

    4. Pressure-Seal Bonnet

  3. Types of Stem movement

    1. Rising Stem or OS & Y Type (Outside Stem and Screw Type)

    2. Non-rising Stem type

Features:



● Flat-bottomed seat traditional gate valves are usually deposited in the bottom groove of the valve due to external objects

such as stone, wood, cement, paper, debris, etc., after flushing the pipe with water. Cause cannot close tightly and form slack

phenomenon, soft-sealing gate valve using the same as the pipe at the bottom of the flat design, not easy to cause debris deposition,

the fluid flow unimpeded, the whole package glue valve plate is made of high quality rubber, within the whole outsourcing, domestic

first-class rubber vulcanization technology make the valve plate after vulcanization can ensure accurate geometry size, and rubber

and nodular cast iron gate connecting firm, not easy to fall off and elastic memory preferred.

● The corrosion resistant valve body is painted with powder and epoxy resin to prevent corrosion and rust of the valve body, and can

be used in sewage system.

● Not easily broken into traditional cast iron.



Cast Iron Water Lug Flange Class 150lb~600lb Cryogenic Gate Valve 1
