Name: Cast Iron Water Lug Flange Class 150~900 Plate Gate Valve Pn16
Brand: TOBO
SKU: Gate Valve
Price: 1 USD
Availability: InStock
Rating: 4.9 (100 reviews)

Home Products Stainless Steel Gate Valve

Cast Iron Water Lug Flange Class 150~900 Plate Gate Valve Pn16

Product Details:

Place of Origin:	China
Brand Name:	TOBO
Certification:	CE/ISO
Model Number:	Gate Valve

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	Inner package:plastic bag sealed package Outer package:carton package or wooden case package The lettering, nameplate, certificate for cryogenic valves are available We can customize the package for globe valve;
Delivery Time:	3-5 days
Payment Terms:	D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000pcs/month

Contact Now

Detailed Product Description

Name:	Steel Gate Valve	Type:	Resilient Bolted Stem
Body:	Cast Iron	End Connection:	Flange End
Applications:	Air, Fuel Gas, Feedwater, Steam	Face To Face:	ASME B16.10
Temperature:	High Temperature	Size:	DN100
High Light:	Cast Iron Water Lug Gate Valve , Water Lug Gate Valve Pn16 , Class 900 Water Lug Gate Valve

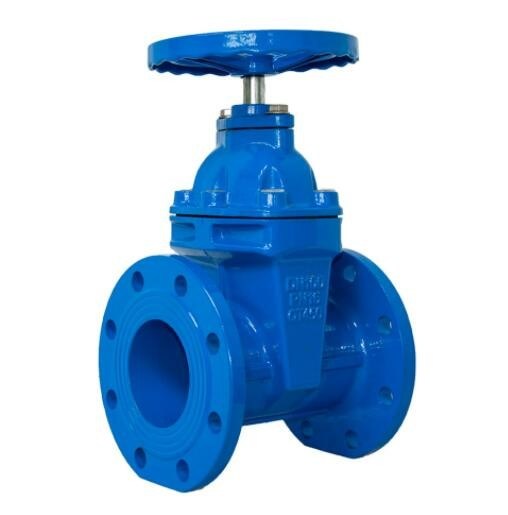

Cast Iron Water Lug Flange CLASS 150~900 PLATE GATE VALVE

Rising stem rtating and unrisen handwheel outside screw and yoke.Anti-dusty design with position indicator parallel and solid wedge two structures with or without conduit.

Standards compliance
Design by API Spec.6D
Valves tested by API 598
Face to Face by ANSI B 16.10
Connection dimensions by ANSI B 16.5~B 16.25
Pressure-Temp by ANSI B16.34

Material specifications

NO.	Part Name	Material
NO.	Part Name	WCB	LCB	WC6	WC9	C5	CF8	CF8M	CF3	CF3M
1	Body	A216 WCB	A352 LCB	A217 WC6	A217 WC9	A217 C5	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M
2	Seat	A105	A350 LF2	A182 F304	A182 F304	A182 F304	A182 F304	A182 F316	A182 F304L	A182 F316L
3	Pluice Plate	A216 WCB	A325 LCB	A217 WC6	A217 WC9	A217 C5	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M
4	O-Ring	NBR/FEP
5	Gage Block	A193 B7	A320 L7	A193 B16			A320 B8
6	Stem	A182 F6a	A182 F304	A182 F304	A182 F304	A182 F304	A182 F304	A182 F316	A182 F304L	A182 F316L
7	Gasket	Flexible Graphite
8	Bolt	A193 B7	A320 L7	A193 B16			A193 B8	A194 B8M
9	Nut	A194 2H	A194 L7	A194 4			A194 8	A194 8M
10	Bonnet	A216 WCB	A325 LCB	A217 WC6	A217 WC9	A217 C5	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M
11	Backseat Bushing	A182 F6a	A182 F6	A182 F304	A182 F304	A182 F304	A182 F304	A182 F316	A182 F304L	A182 F316L
12	Clib Talker	Copper or Carbon steel or Stainless Steel
13	Separate Link	ASTM A182 F410
14	Packing	Graphite+ASBESTOS
15	Yoke	A216 WCB	A325 LCB	A217 WC6	A217 WC9	A217 C5	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M
16	Stem nut	A439 D-2~~Cu-Alloy
17	Oil Cup	Copper or Carbon steel or Stainless Steel
18	Retaining Nut	Carbon Steel or Alloy Steel
19	Handwheel	A216 WCB
20	Protector	A105N
21	Indicator	ASTM A182 F410
Seating face overlay		ER410/ER316/STL

The materials according to ASTM standard

PLATE GATE VALVE

Size	in	2	3	4	6	8	10	12	14	16	18	20	24	28	30	36	40
mm		50	80	100	150	200	250	300	350	400	450	500	600	700	750	900	1000
150Lb	L	7	8	9	10-1/2	11-1/2	13	14	15	16	17	18	20	24	26	32	38
	d	2	3	4	6	8	10	12	13-1/4	15-1/4	17-1/4	19-1/4	23-1/4	27	29	34-1/2	38-1/2
	H	23	26-3/4	34	45-3/8	52-3/8	59-1/2	68-5/8	76	82-7/8	90	98-1/4	113	127-1/4	136-1/4	157	172
	H1	6	8	10	13-1/2	16-1/2	19-1/2	22-3/4	25-1/4	28-3/8	31-3/8	34-1/2	41-1/8	46-7/8	50	59	65-11/16
	D0	10	10	10	14	14	16	18	20	24	24	24	24	24	24	36	36

Size	in	2	3	4	6	8	10	12	14	16	18	20	24	28	30	36
mm		50	80	100	150	200	250	300	350	400	450	500	600	700	750	900
300Lb	L	8-1/2	11-1/8	12	15-7/8	16-1/2	18	19-3/4	30	33	36	39	45	53	55	68
	d	2	3	4	6	8	10	12	13-1/4	15-1/4	17-1/4	19-1/4	23-1/4	27	29	34-1/2
	H	23	26-3/4	34	45-3/8	52-3/8	59-1/2	68-5/8	75-5/8	80-5/8	88	97-3/4	114-1/8	129-1/8	139-1/8	161
	H1	6	8	10	13-1/2	16-1/2	19-1/2	22-3/4	25-1/4	28-1/8	31	34-1/2	41-1/8	47	50-5/8	59-1/4
	D0	10	10	10	14	14	16	18	20	24	24	24	24	24	36	36

Size	in	2	3	4	6	8	10	12	14	16	18	20	24	28	30
mm		50	80	100	150	200	250	300	350	400	450	500	600	700	750
400Lb	L	11-1/2	14	17	19-1/2	23-1/2	26-1/2	30	32-1/2	35-1/2	38-1/2	41-1/2	48-1/2	55	60
	d	2	3	4	6	8	10	12	13-1/4	15-1/4	17-1/4	19-1/4	23-1/4	27	29
	H	23-1/4	27	34-1/4	46-3/8	56-3/8	59-1/2	68-7/8	75-3/8	81	89-1/4	98-1/8	115-1/2	130	141
	H1	6	8	10	13-5/8	16-1/2	19-3/4	23	26	28-3/4	31-1/2	35	41-7/8	51-1/2	60
	D0	10	10	10	14	14	16	18	20	24	24	24	24	36	36

Size	in	2	3	4	6	8	10	12	14	16	18	20	24	28	30
mm		50	80	100	150	200	250	300	350	400	450	500	600	700	750
600Lb	L	11-1/2	14	17	22	26	31	33	35	39	43	47	55	61	65
	d	2	3	4	6	8	10	12	13-1/4	15-1/4	17-1/4	19-1/4	23-1/4	27	29
	H	23-1/4	27	31-1/4	45-3/8	56-3/8	59-1/2	68-7/8	75-3/8	83-1/2	91-1/2	100-1/2	118	134	142-2/4
	H1	6	8	10	13-5/8	16-3/4	20	23-1/4	26	29-1/8	32-3/8	35-7/8	42-1/4	49-1/4	52-3/4
	D0	10	10	10	14	14	16	18	20	24	24	24	36	36	36

Size	in	2	3	4	6	8	10	12	14	16	18	20
mm		50	80	100	150	200	250	300	350	400	450	500
900Lb	L	11-1/2	14	17	24	29	33	38	40-1/2	44-1/4	48	52
	d	2	3	4	6	8	10	12	12-3/4	15-1/4	17-1/4	19-1/4
	H	23-1/4	27	34-1/4	45-1/8	56-1/8	59-1/2	77-1/4	79-5/8	87-3/8	96-15/16	103-3/8
	H1	6	8	10	13-7/8	17-1/8	20-1/2	233-3/4	25-9/16	307-1/6	33-7/8	37-1/4
	D0	10	10	10	16	16	18	20	24	24	24	36

What is Gate Valve?

A gate valve can be defined as a type of valve that used a gate or wedge type disk and the disk moves perpendicular to flow to start or stop the fluid flow in piping.

A gate valve is the most common type of valve used in any process plant. It is a linear motion valve used to start or stop fluid flow. In service, these valves are either in a fully open or fully closed position.

When the gate valve is fully open, the disk of a gate valve is completely removed from the flow. Therefore virtually no resistance to flow. Due to this very little pressure drops when fluid passes through a gate valve.

To achieve proper sealing, when the valve is fully closed, 360° surface contact is required between disk and seats.

Gate valves should not be used for regulation or throttling of flow because accurate control is not possible.

The high velocity of the flow in the partially open valve may cause erosion of the disc and seating surfaces and also creates vibration and noise.

Valve Type	CS / SS GATE VALVE - FL / BW
Design Std	BS EN ISO 10434 [BS 1414] / API 600 / API 602 / API 603/ASME B16.34
Size Range	40 DN to 400 DN [1 1/2” to 16”]
Body	[CS - ASTM A 216 Gr. WCB] [SS - ASTM A 351 Gr.CF8 / CF8M]
Trim	AISI 410 / 304 / 316
Seat / Wedge	13% Cr. Steel / AISI 410 / 304 / 316
Design Features	Bolted Bonnet, OS & YT, HW & Gear operated
Prorating	ASME - Class 150 / 300 / 600
Face to Face	ASME B 16.10 / EN 558 -1 / API 6D
End Connection	Flanged	ASME B16.5, CLASS 150 / 300 / 600
	Butt weld	ASME B16.25
Testing Std.	BS EN 12266 - 1 [BS 6755-1] / API 598
Optional	Lantern Ring / indicator & Locking Device/ Renewable Seat / Stellite Hard facing / Jacketed Provision / RTJ Flanges / By Pass Arrangement / Higher Sizes / Special MOC: Austenitic and Duplex Stainless Steels

PN	DN	Size(mm)
PN	DN	L	D	D1	D2	B	N-φ	H
1.6MPa	25	160	115	85	65	14	4-14	275
	32	180	135	100	78	16	4-18	280
	40	200	145	110	85	16	4-18	330
	50	230	160	125	100	16	4-18	350
	65	290	180	145	120	18	4-18	370
	80	310	195	160	135	20	8-18	400
	100	350	215	180	155	20	8-18	415
	125	400	245	210	185	22	8-18	460
	150	480	280	240	210	24	8-23	510
	200	550	335	295	265	26	12-23	710
	250	650	405	355	320	30	12-25	786
	300	750	460	410	375	30	12-25	925

Types of Gate Valves

There are three ways to classify the gate valve.

Types of Disk
1. Solid taper wedge
2. Flexible wedge
3. Split wedge or Parallel disks Valve
Types of Body Bonnet Joint
1. Screwed Bonnet
2. Bolted-Bonnet
3. Welded-Bonnet
4. Pressure-Seal Bonnet
Types of Stem movement
1. Rising Stem or OS & Y Type (Outside Stem and Screw Type)
2. Non-rising Stem type

Features:

● Flat-bottomed seat traditional gate valves are usually deposited in the bottom groove of the valve due to external objects

such as stone, wood, cement, paper, debris, etc., after flushing the pipe with water. Cause cannot close tightly and form slack

phenomenon, soft-sealing gate valve using the same as the pipe at the bottom of the flat design, not easy to cause debris deposition,

the fluid flow unimpeded, the whole package glue valve plate is made of high quality rubber, within the whole outsourcing, domestic

first-class rubber vulcanization technology make the valve plate after vulcanization can ensure accurate geometry size, and rubber

and nodular cast iron gate connecting firm, not easy to fall off and elastic memory preferred.

● The corrosion resistant valve body is painted with powder and epoxy resin to prevent corrosion and rust of the valve body, and can

be used in sewage system.

● Not easily broken into traditional cast iron.
