1-1/4 Inch API600 ASME WCB 304/316 Flange End Globe Valve HS 8481804090

1-1/4 Inch API600 ASME WCB 304/316 Flange End Globe Valve HS 8481804090

  • 1-1/4 Inch API600 ASME WCB 304/316 Flange End Globe Valve HS 8481804090
  • 1-1/4 Inch API600 ASME WCB 304/316 Flange End Globe Valve HS 8481804090
1-1/4 Inch API600 ASME WCB 304/316 Flange End Globe Valve HS 8481804090
Product Details:
Place of Origin: China
Brand Name: TOBO
Certification: ISO
Model Number: SS316L, 304
Payment & Shipping Terms:
Minimum Order Quantity: 3 PCS
Price: 1.2USD
Packaging Details: Plywood wooden cases
Delivery Time: 7work days
Payment Terms: D/P, T/T, Western Union
Supply Ability: 30000PCS
Contact Now
Detailed Product Description
Sizes: 2"~16" Temperature Range: -29°C To 425°C
Pressure: Class 150/2500 Standard: DIN, GB
Packaging Details: Plywood Or As The Customers′ Requirement. HS Code: 8481804090
High Light:

SS316 Flange End Globe Valve

,

API600 Flange End Globe Valve

,

ASME Flange End Globe Valve

1-1/4inch API600&ASME Wcb 304/316 Stainless Steel Flange Ends Ball Globe Check Gate Valve 150lb 300lb





Product Description

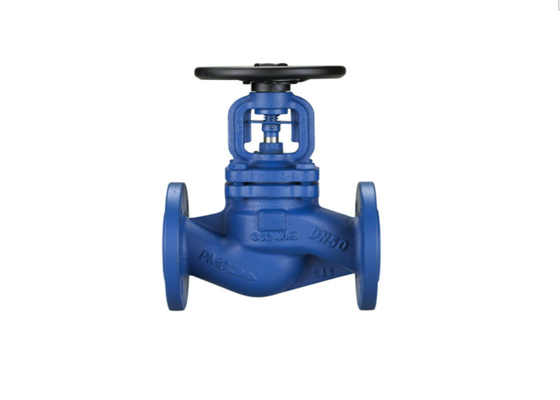

ANSI 150LB/300LB CF8/304 CF8M/316 Flanged Stainless Steel Globe Valve

A globe valve, different from ball valve, is a type of valve used for regulating flow in a pipeline, consisting of a movable plug or disc element and a stationary ring seat in a generally spherical body.

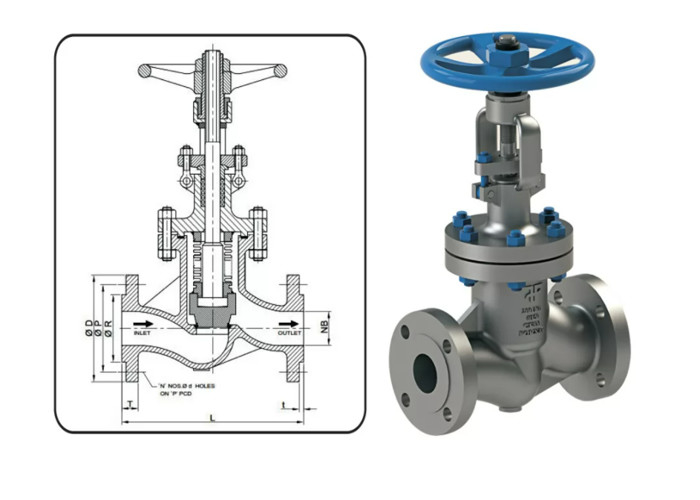

Globe valves are named for their spherical body shape with the two halves of the body being separated by an internal baffle. This has an opening that forms a seat onto which a movable plug,can be screwed in to close (or shut) the valve.The plug is also called a disc or disk.In globe valves,the plug is connected to a stem which is operated by screw action using a handwheel in manual valves.Typically,automated globe valves use smooth stems rather than threaded and are opened and closed by an actuator assembly.

Descriptions:

1) Design standard: ASME B16.34
2) Flange standard: ASME B16.5
3) Face to Face: ASME B16.10
4) Inspection standard: API598
5) Material: ASTM A351-CF8,CF8M,304,316
ASTM A216-WCB
6) Working pressure: 150LB/300LB
7) Sizes: 1/2" ~ 16"
8) Metal to metal sealing
9) Hand Wheel Operation
10) Working temperature:-20~ 300 degree C
11) Working medium: Water,Oil,Acid,ect.



Product Name Stainless Steel Flange Globe Valve
1. Material A351 CF8M/CF8/CF3
2. Size 1/2''~12'' ( DN15~DN300)
3. Certificate CE&API
4. Port Full Port
5. Working Pressure 1.0~10Mpa
6. Connection Ends flange
7. Working Temp. -29ºC~230ºC
8. Suitable Medium Water, Steam, Oil and natural gas etc.
9. Seal PTFE, RPTFE, PPL
10. Locking Option
11. Inspection & Testing API598
Shipment
Delivery Time 15~45 Days
Package Standard Exporting Plywood Case
Shipping Port Ningbo/Shanghai, China
Shipping Terms EXW, FOB, CFR, CIF, etc.
Payment Terms T/T, Western Union, PayPal, etc.
  30% prepayment, 70% balance paid before shipping or against copy of BL
Advantage OEM/ODM is applicable;Our own casting room
Others We also manufacture Flange Ball Valve, Gate Valve, Globe Valve, Check Valve, Butterfly Valve & Y Strainer



And the manufacturing and maintenance are convenient,and the pressure application range is wide.

Type Flange globe valve
Application Manual
Temperature of Media Minus 29 degrees to 150 degrees
Power Manual
Media Water, Oil, Air, And Some Corrosive liquid
Port Size DN32
Structure Flange globe valve
Size 1-1/4inch



1-1/4 Inch API600 ASME WCB 304/316 Flange End Globe Valve HS 8481804090 0
