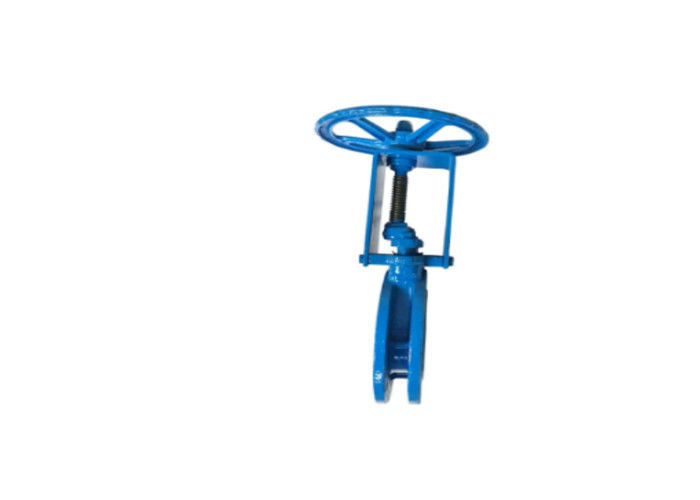

High Pressure Resilient Seated Gate Valve DIN 3352 , JIS 10 K, EN 7005.2 Flange



Resilient Seated Gate Valve Introduction



The valve gate or closure member is typically in the form of a wedge made of cast iron material

so as to be sufficiently rugged so as to be suitable for high pressure and high flow applications.



In a resilient seat gate valve, the outer surface of the valve wedge is coated with an elastomeric

material so as to offer a bubble-tight seal even at elevated operating pressures.



The valve wedge is operated by turning a threaded stem so as to advance or retract the valve

wedge within the waterway of the valve housing.



Upon valve closure, the resilient material on the edge forms a bubble-tight seal with the internal

surface of the valve body. Dirt or other contamination in the valve operating system can lead to

incomplete sealing of the wedge or other malfunction.



Another object of the present invention is to provide a resilient seat gate valve having an

improved wedge operator system which readily overcomes the deleterious effects of contamination introduced either during construction or entrained within product carried to the valve.



These and other objects of the present invention which will become apparent from studying the

appended description and drawings are provided in a valve arrangement, that comprises a valve

housing that defines a water passageway and a valve seat within the valve passageway.



A valve wedge disposed within the housing passageway moves along a direction of operation

between a closed position in contact with the valve seat to block flow of water through the valve

passageway and an open position allowing flow of water through the valve passageway.



A pair of spaced apart tracks are disposed within the valve housing on either side of the wedge

and extend along the direction of operation. A pair of opposed wings carried on the valve wedge,

travel in each track. A valve stem coupled to the valve wedge moves the valve wedge in opposite reciprocating directions between valve open and valve closed positions.



Rollers are carried on the wings for rolling engagement with the tracks and scraper blades are

carried on the wings adjacent the rollers to scrape contamination from the tracks.



The tracks may be provided with or without a liner. If a wing is provided without rollers because of

a light loading application, for example, the track is preferably provided without a liner.

Resilient Seated Gate Valve Specifications:



1.Products: DIN 3352 F4 DN600 Resilient Seated Gate Valve

2.Material Of Construction of the gate valve : Ductile Iron
3.Size of the gate valve: DN600

4.Working Pressure: PN10

5.Connection type: Flanged,DN2501,PN10
6.Seal Type: Soft seal(EPDM or NBR)

7.Design Standard:DIN3352

8.Face to face dimensions: DIN3202 F4

9.Each valve be tested according to test standard: DIN3230

10. Work Temperature: ≤80°C

11.Media:water

12.Stem type:Non rising stem

13.Length of valve: DIN3352 F4

14. Coating:blue powder epoxy



Resilient Seated Gate Valve FEATURES



⊙ Shot-blasting

protective surface finished by shot-blasting and the surface is smooth and neatness.



⊙ Flatting seat

Smooth continuous bore way without seating recess, it is not easy to get impurity pilled up.

Making the liquid straightway.



⊙ Treating with rubber

Both inner and outer are coated with advanced knowledge of rubber vulcanization then making

sure of the elasticity of rubber ,and make sure the exact geometry dimension. Rubber and ductile

cast iron valve hand together hardly. This can avoid fall-off due to long-term use.



⊙ Anti- corrosion

Both inner and outer are coated with non-toxic powder epoxy resin to strengthen the capacity of Corrosion resisting and raise the quality

of water supply.



⊙ Ruggedization

The older ductile iron valve is easy to rupture after being impacted by nonego. It can stop

rupture depend on the good mechanics capability of ductile iron .



⊙ Three “○” sealed ring

With the three “O” – rings, the leakage can be greatly reduced and the “O” – ring can be

replaced under this condition with pressure and without stopping water. The thrust axletree

reduces the frictional resistance and lowers the operational torque. And it can be switch seal

ring without opening and closing.



APPLICABLE STANDARDS

⊙ American Standard
Design to ANSI/AWWA C509
Face to face dimension to ASME B16.10-2000(ISO 3 series)
Flange and drilling To SME/ANSI B16.42-1998

⊙ British Standard
Design to BS5163,BS5150
Face to face dimension to BS5163(ISO 3series,ISO19 series)
Flange and drilling To BS4504 part1(EN1092)

⊙ Germany Standard
Design to DIN3352
Face to face dimension to DIN3202(F4:ISO 14 series;F5: ISO 15 series)
Flange and drilling to BS EN1092
