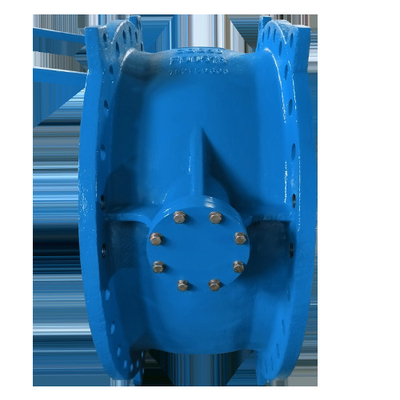

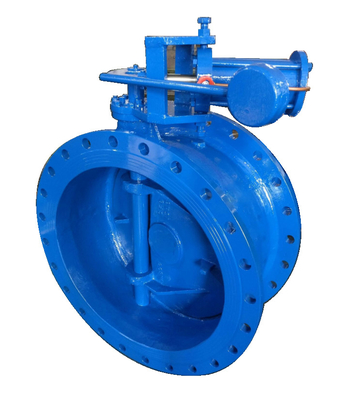

Ductile Iron Silence Globe Needle Check Valve Flange End Epoxy Coating

Ductile Iron Silence Globe Needle Check Valve Flange End Epoxy Coating

  • Ductile Iron Silence Globe Needle Check Valve Flange End Epoxy Coating
  • Ductile Iron Silence Globe Needle Check Valve Flange End Epoxy Coating
  • Ductile Iron Silence Globe Needle Check Valve Flange End Epoxy Coating
Ductile Iron Silence Globe Needle Check Valve Flange End Epoxy Coating
Product Details:
Place of Origin: China
Brand Name: TOBO
Certification: ISO 9001/ API 6D
Model Number: CF8M
Payment & Shipping Terms:
Minimum Order Quantity: 1Pcs
Price: Negotiation
Packaging Details: Usually packing by plywood case suit for sea delivery
Delivery Time: 10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 Pcs Per Month
Contact Now
Detailed Product Description
Product Name: Swing Check Valve Material: 316L
Application: Oil, Gas, Water, Steam Etc Advantage: Quiet
Temperature: -10~80 C Design: Wafer
Body: Stainless Steel Seat: Stainless Steel
High Light:

Silence Globe Needle Check Valve

,

Ductile Iron Needle Check Valve

,

Flange End Needle Check Valve

Ductile Iron Silence Globe Needle Check Valve Flange End Epoxy Coating



Detailed Product Description
Product Name: Silence Check Valve Application: Water , Oil, Gas, Etc.,
Size: DN15 ~ DN300 Pressure: PN16~PN40, 150 Lbs ~ 600lbs
Standard: API 6D/ ANSI 16.5 B/ JIS 20K/JIS 10K /DIN Temperature: -10~80 C
Body: SUS304 / 316 Seat: CF8 / CF8M
High Light:

stainless steel ball check valve

,

flanged ball check valve





Ductile Iron Silence Globe Needle Check Valve Flange End Epoxy Coating


The Silent Check Valve is the preferred choice in applications where silent operation and cost are major concern.

Its short linear stroke and spring return action combine to close the valve prior to flow reversal which effectively eliminates the shock and water hammer normally associated with the sudden stoppage of a reverse flow.

Features:
⊙Professional design
The inner cavity of valve is designed as streamline shape, which can effectively stop the turbulence. The spherical surface is introduced to form the front of disc and cone contact for the seating couple; these structures will extremely the shock force of medium and decrease the resistance coefficient of flow. Thin shell structures is employed when design the diversion component to ensure the laminar flow and greatly drop the weight. The reasonable open height and cavity space enable the obtaining of maximum area of flow section. It can avoid occurring of the air chamber; the valve parameter Cv is improved.
⊙Excellent proof corrosion characteristics
Internal and external epoxy resin coating.
⊙Reliable hygiene principles
Epoxy resin and rubber comply with hygiene standard, the trim, such as disc, spring, etc., are made of stainless steel.

Mail part & material
Body, Line: GGG50 with internal and external epoxy resin coating
Disc: GGG50 or casting steel
Guiding stem, Spring: 1Cr17Ni12Mo2Ti, Stainless steel
Guiding bushing: Bronze CuAI10Fe3
Flange washer, O-ring: NBR, EPDM or FPM

Technical Specification
-Nominal diameter:50~350mm
-Nominal pressure:1.0/1.6Mpa
-Strength testing pressure:1.5/2.4Mpa
-Sealing testing pressure:1.1/1.76Mpa
Executive standard

Design standard AWWA A508
Face to face Enterprise standard
Flange end DIN 2501
Test & inspection JG/T 9092-1999
Working temperature NBR<80℃; EPDM<120℃; FPM<160℃



DN L Flange dimensions comply with GB/T17421.6-1998
O  C  g  f b  n-d
1.0MPa 1.6MPa 1.0MPa 1.6MPa 1.0MPa 1.6MPa 1.0MPa 1.6MPa 1.0MPa 1.6MPa
50 120 165 165 125 125 99 99 3 19 19 4-19 4-19
65 150 185 185 145 145 118 118 3 19 19 4-19 4-19
80 180 200 200 160 160 132 132 3 19 19 8-19 8-19
100 229 220 220 180 180 156 156 3 19 19 8-19 8-19
125 254 250 250 210 210 184 184 3 19 19 8-19 8-19
150 267 285 285 240 240 211 211 3 19 19 8-23 8-23
200 292 340 340 295 295 266 266 3 20 20 8-23 12-23
250 330 395 405 350 355 319 319 3 22 22 12-23 12-28
300 356 445 460 400 410 370 370 4 24.5 24.5 12-23 12-28
350 381 505 520 460 470 429 429 4 24.5 24.5 16-23 16-28


Ductile Iron Silence Globe Needle Check Valve Flange End Epoxy Coating 0 Ductile Iron Silence Globe Needle Check Valve Flange End Epoxy Coating 1

Ductile Iron Silence Globe Needle Check Valve Flange End Epoxy Coating 2



Features:

⊙Professional design

The inner cavity of valve is designed as streamline shape, which can effectively stop the turbulence. The spherical surface is introduced to form the front of disc and cone contact for the seating couple; these structures will extremely the shock force of medium and decrease the resistance coefficient of flow. Thin shell structures is employed when design the diversion component to ensure the laminar flow and greatly drop the weight. The reasonable open height and cavity space enable the obtaining of maximum area of flow section. It can avoid occurring of the air chamber; the valve parameter Cv is improved.

⊙Excellent proof corrosion characteristics

Internal and external epoxy resin coating.

⊙Reliable hygiene principles

Epoxy resin and rubber comply with hygiene standard, the trim, such as disc, spring, etc., are made of stainless steel.



Mail part & material

Body, Line: GGG50 with internal and external epoxy resin coating

Disc: GGG50 or casting steel

Guiding stem, Spring: 1Cr17Ni12Mo2Ti, Stainless steel

Guiding bushing: Bronze CuAI10Fe3

Flange washer, O-ring: NBR, EPDM or FPM



Technical Specification

-Nominal diameter:50~350mm

-Nominal pressure:1.0/1.6Mpa
-Strength testing pressure:1.5/2.4Mpa

-Sealing testing pressure:1.1/1.76Mpa

Executive standard

Design standard AWWA A508
Face to face Enterprise standard
Flange end DIN 2501
Test & inspection JG/T 9092-1999
Working temperature NBR<80℃; EPDM<120℃; FPM<160℃





DN L Flange dimensions comply with GB/T17421.6-1998
O  C  g  f b  n-d
1.0MPa 1.6MPa 1.0MPa 1.6MPa 1.0MPa 1.6MPa 1.0MPa 1.6MPa 1.0MPa 1.6MPa
50 120 165 165 125 125 99 99 3 19 19 4-19 4-19
65 150 185 185 145 145 118 118 3 19 19 4-19 4-19
80 180 200 200 160 160 132 132 3 19 19 8-19 8-19
100 229 220 220 180 180 156 156 3 19 19 8-19 8-19
125 254 250 250 210 210 184 184 3 19 19 8-19 8-19
150 267 285 285 240 240 211 211 3 19 19 8-23 8-23
200 292 340 340 295 295 266 266 3 20 20 8-23 12-23
250 330 395 405 350 355 319 319 3 22 22 12-23 12-28
300 356 445 460 400 410 370 370 4 24.5 24.5 12-23 12-28
350 381 505 520 460 470 429 429 4 24.5 24.5 16-23 16-28



RF Flange End Non Slam Nozzle Check Valve ASTM A 351 CF8M for Propane 0 RF Flange End Non Slam Nozzle Check Valve ASTM A 351 CF8M for Propane 1



RF Flange End Non Slam Nozzle Check Valve ASTM A 351 CF8M for Propane 2



If you need more information, please kindly connect with us.





Description:



Technical Parameters
Model PN(MPa) Casting test pressure(MPa) Seal test pressure (MPa) Materials of body, bonnet
HQ41X-10 1 1.5 1.1 iron or steel
HQ41X-16 1.6 2.4 1.76

Mail part & material
Body : Cast iron, ductile cast iron ,WCB
Bonnet : Cast iron, ductile cast iron, WCB
Ball : cast steel coated with neoprene
Medium : water and weak corrosive fluid



Applications:

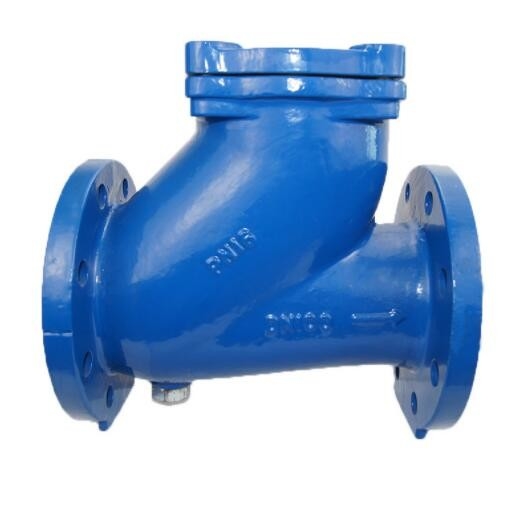

Flanged Ball Check Valve uses the rubber covered roller as the disc, when, under the action of the

medium, can roll up and down along with the integral sliding path inside the valve so as to open or

close it.



And it features by good tightness, silent close and no production of water hammer.



The body is full waterflow path design, big flow, small resistance and the water head loss is smaller

that of the swing type by 50.



It is mountable vertically or horizontally and can be used for cold water, hot water, industrial and

living sludge pipe networks, especially suitable for the submersible sludge pump.



The medium temperature:0~80℃.



Dimensions
DN(mm) L D D1 D2 Z-φd H
50 180 160 125 100 4-18 185
65 200 180 145 120 4-18 210
80 260 195 160 135 4-18/8-18 245
100 300 215 180 155 8-18 280
125 350 245 210 185 8-18 335
150 400 280 240 210 8-23 400
200 500 335 295 265 8-23/12-23 495
250 600 390/405 350/355 320 12-23/12-25 600
300 700 440/460 400/410 375 12-23/12-25 715
350 800 500/520 460/470 435 16-23/16-25 820



Check Valve - Ball type (nonreturn valve) was the first valves at with a unique design. A very simple

but robust design with no critical mechanism involved.



All parts like hinge pin disc mechanism used in conventional valve are eliminated, and has put in a

reinforced rubber coated ball to arrest flow media in return condition.



This ball, moves totally out of the flow path when the pumping is on to give minimum head losses.



The spherical rubber coated ball seals perfectly on the rounded valve seat ensuring a totally leak proof

sealing.



This design offers other advantages like non clogging & self cleaning. In this virtually maintenance free

valves, if required, after prolonged usage, the on-line replacement of the ball is just a minute job.





* Lower power consumption

* Larger solid handling capacity

* Self cleaning, Non-Clogging

* Perfect Sealing

* Low pressure drop







Principle:

The heart of this valve is a reinforced rubber ball. The unique design of the valve allows free movement of the ball.

The ball moves to open position when the pump starts & allows free flow of liquid without any interference (See Fig.).

As the pump stops, the ball seats firmly against the metal seat due to its own weight & back pressure of

the liquid (Mouse over fig.). This results in DROPLESS sealing.







Part List / Materials of Construction

Part Description Standard Special
1. Body Cast Iron St. Steel, Cast Steel
2. Cover Cast Iron St. Steel, Cast Steel
3. Ball Nitrile Reinforced EPDM, Neoprene
4. Cover Ring Nitrile Rubber Butyle, Viton
5. Ball Seat Ring L. T. Bronze St. Steel, Hard Rub.
6. Fasteners Carbon Steel St. Steel
