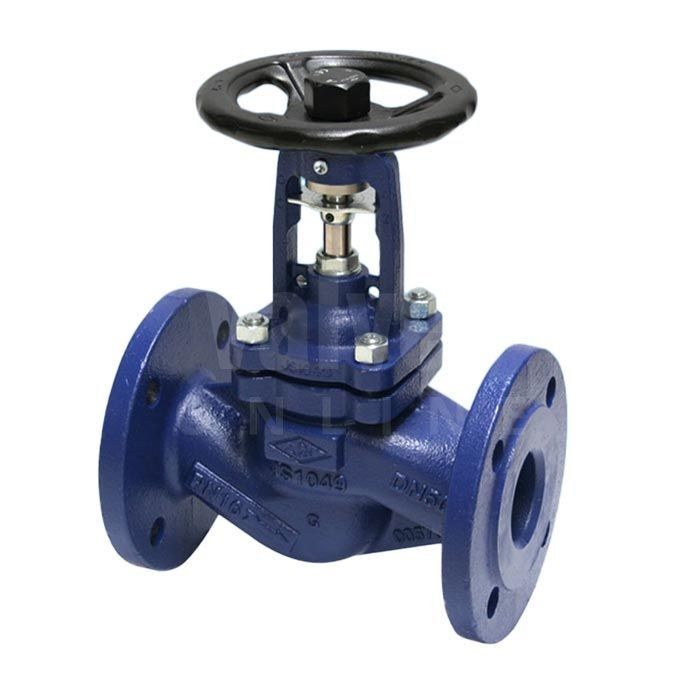

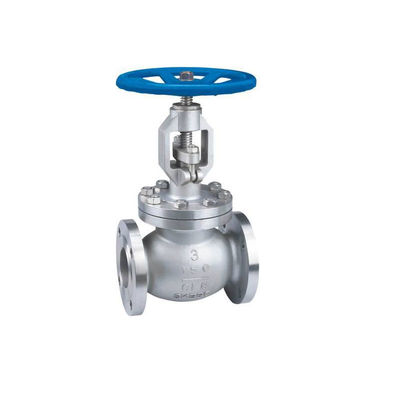

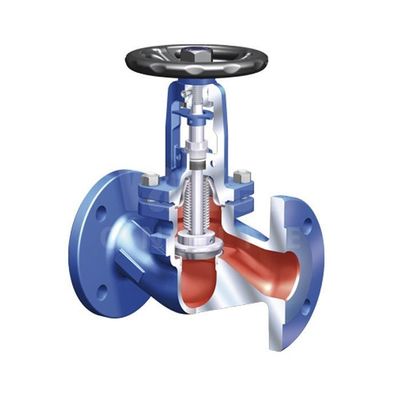

25A 10kg / cm2 x 127L Flanged Globe Valve STS304 HAND WHEEL





25A 10kg / cm2 x 127L Flanged Globe Valve STS304 HAND WHEEL





Forged Steel Integarl Flanged Valve



Brief introduction:

Integral flanged valves are available in three bonnet designs.



The first design is the Bolted Bonnet, with male-female joint, spiral wound gasket, made in F304L/graphite.Ring joint gasket are also available on request.



The second design is the welded bonnet, with a threaded and seal welded joint. On request a full pen- extraction strength welded joint is available.



The third design is the pressure seal bonnet, with a threaded and pressure seal joint. Integral Flanged end valves are available in gate, globe, piston, check, and swing check design configurations.



Technical Specification



* Integral flange valves conform to API 602,and ANSI B16.34.

* Each is tested according to API 598, and marking is per MSS SP-25.



* Full Port and Conventional Port

* Face to face according t ANSI B16.10

* Flanges according to ANSI B16.5

* Pressure seal bonnet

* Outside Screw and Yoke (OS & Y)

* Two piece self-aligning packing gland

* Integral backseat

* Integral body flanges

* Butt Welded Ends to ASME B16.25

* RTJ bonnet gasket ring joint type

* Bolted bonnet with spiral wound gasket, threaded and seal welded bonnet or threaded and pressure seal bonnet





Standard Material Specification



NO.	Part Name	CS to ASTM	AS to ASTM	SS to ASTM
		Type A105	Type F22	Type F304(L)	Type F316(L)
1	Body	A105	A182 F22	A182 F304(L)	A182 F316(L)
2	Stem Ring	A276 420	A276 304	A276 304(L)	A276 316(L)
3	Wedge	A276 410 & 430	A182 F304	A182 F304(L)	A182 F316(L)
4	Stem	A182 F6	A182 F304	A182 F304(L)	A182 F316(L)
5	Gasket	Corrugated SS+ graphite		SS+PTFE
6	Bonnet	A105	A182 F22	A182 F304(L)	A182 F316(l)
7	Bonnet Bolt	A193 B7	A193 B16	A193 B8	A193 B8M
8	Pin	A276 420		A276 304
9	Gland	A276 410		A182 F304(L)	A182 F316(L)
10	Gland Eyebolt	A193 B7	A193 B16	A193 B8	A193 B8M
11	Gland Flange	A105	A182 F11	A182 F304(L)	A182 F316(L)
12	Gland Nut	A194 2H	A194 4	A194 8	A194 8M
13	Yoke Nut	A276 410
14	H.W.Lock Nut	A194 2H	A194 4	A194 8	A194 8M
15	Nameplate	SS
16	Hand wheel	A197
17	Lubricated Gasket	A473 431
18	Stem Packing	Flexible Graphite		PTFE
Suitable Medium		Water, oil, gas etc.,		Water, oil, gas etc.,	HNO3,CH3OOH etc
Suitable Temperature		-29℃～425℃		-29℃～550℃	-29℃～180℃



Dimension (mm) and Weight (Kg)



NPS			1/2"	3/4"	1"	11/4"	11/2"	2"
L(RF) L1(BW)	150Lb		108	117	127	140	165	203
	300Lb		140	152	165	178	190	216
	600Lb		165	190	216	229	241	292
H	150Lb～300Lb		158	169	197	236	246	283
	600Lb		169	197	236	246	283	320
W			100	100	125	160	160	180
Weight	150Lb	RF	4.5	5.2	8.2	11.5	12.5	20.3
		BW	2.8	3.3	5.4	7.1	8.2	12.5
	300Lb	RF	4.8	6.2	9.3	14	15.5	23.4
		BW	3.5	4.4	6.8	8.1	9.2	15.4
	600Lb	RF	5.9	7.4	10.4	16.2	17.5	28.3
		BW	4.5	5.1	8.2	10.5	12.4	20.1



Flanged End Globe Valve 900Lb～1500Lb



NPS		1/2"	3/4"	1"	11/2"	11/4"	2"
L(RTJ)	900Lb～1500Lb	216	229	254	279	305	371
L1(BW)	900Lb～1500Lb	216	229	254	279	305	368
H(OPEN)		197	197	236	246	283	330
W		125	125	160	160	180	200
Weight	RTJ	7.2	11.5	15.6	16.2	22.6	32.8
	BW	5.2	9.3	12.4	13.8	18.9	27.5



Flanged End Pressure-seal Globe Valve 900Lb～2500Lb



NPS		1/2"	3/4"	1"	11/4"	11/2"	2"
L(RTJ)	900Lb～1500Lb	216	229	254	279	305	368
	2500Lb	264	273	308	349	384	451
H(OPEN)	900Lb～1500Lb	216	250	270	320	250	445
	2500Lb	321	321	321	373	406	495
W		160	160	180	200	250	280
Weight	900Lb～1500Lb	19.6	21.5	25.7	37.8	48.5	99.8
	2500Lb	21.5	24.7	30.4	48.1	58.1	130.0





The globe valve is designed reference to advanced internal and international standard.Adopting different material, the valve may works with different medium, such as water,oil,gas,steam,carbamide and other medium.



selection of possible applications:

(industry) (power station)

(flue gas puerification plant) (gas supply)

(vacuum facilities) (ammonia)

(hot water) (cllling&freezing systme)

(heating technology) (steam system)





Features

Outside Screw and Yoke (OS & Y), Rising Stem

Bolted Bonnet

Conic Disc

Extended Bonnet for Cryogenic Services

Impact hand wheel optional

Gear Optional

Specifications

Design: ASME B16.34/BS 1873

Face to Face: ASME B16.10

End to End: ASME B16.10

End Flange: ASME B16.5

BW End: ASME B16.25

Test: API 598

Special: NACE MR-01-75

Notes:The size of serial,valve connecting flange can be design according to customers reguirment.



Products performance specification



Parts	Materials
Body	ASTM A216 GR.WCB
Seat Ring	ASTM A105 + Stellite Faced
Disc	ASTM A105 + 13Cr Faced
Disc Thrust Plate	ASTM A276 Type 420
Disc Nut	ASTM A276 Type 410
Stem	ASTM A182 GR.F6
Bonnet Bolt Nuts	ASTM A194 GR.2H
Bonnet Bolts	ASTM A193 GR.B7
Gasket	Soft Iron + Graphite
Backseat Bushing	ASTM A276 Type 410
Stem Packing	Braided Graphite & Die formed Graphite Ring
Bonnet	ASTM A216 GR.WCB
Eyebolt Pins	Carbon Steel
Gland	ASTM A276 Type 410
Gland Flange	ASTM A216 GR.WCB
Gland Eye Bolts	ASTM A307 GR.B
Eyebolt Nuts	ASTM A194 GR.2H
Yoke Bush	ASTM A439 GR.D-2
Screw	Carbon Steel
Hand Wheel	Ductile Iron
Hand Wheel Nut	ASTM A194 GR.2H
Washer	Carbon Steel
Yoke	ASTM A216 GR.WCB
Yoke Pan Bolt Nuts	ASTM A194 GR.2H
Yoke Pan Bolt	ASTM A193 GR.B7
Bearing	Steel
Lantern Ring On Request	ASTM A276 Type 410



Main Dimensions



ASME Pressure Class 150 Lb-Dimensions and Weights

NPS	in	2	2.5	3	4	5	6	8	10	12	14	16
d	mm	51	64	76	102	127	152	203	254	305	337	387
L-L1	in	8	8.5	9.5	11.5	14	16	19.5	24.5	27.5	31	36
(RF-BW)	mm	203	216	241	292	356	406	495	622	698	787	914
L2	in	8.5	9	10	12	14.5	16.5	20	25	28	31.5	36.5
(RTJ)	mm	216	229	254	305	368	419	508	635	711	800	927
H	in	13.43	14.45	14.76	19.02	21.14	20.35	23.23	29.69	37.05	42.72	38.03
(open)	mm	341	367	375	483	537	517	590	754	941	1085	966
W	in	7.87	9.84	9.84	11.81	11.81	13.78	15.75	17.72	25.2	25.2	18.11
	mm	200	250	250	300	300	350	400	450	640	640	460
WT	BF	22	29	42	64	77	105	154	288	507	617	810
(Kg)	BW	19	25	34	49	65	82	131	249	430	580	763



ASME Pressure Class 300 Lb-Dimensions and Weights

NPS	in	2	2.5	3	4	5	6	8	10	12
d	mm	51	64	76	102	127	152	203	254	305
L-L1	in	10.5	11.5	12.5	14	15.75	17.5	22	24.5	28
(RF-BW)	mm	267	292	318	356	400	444	559	622	711
L2	in	11.12	12.12	13.12	14.62	16.37	18.12	22.62	25.12	28.62
(RTJ)	mm	283	308	333	371	416	460	575	638	727
H	in	13.74	14.8	16.93	19.13	22.05	24.33	36.89	37.36	39.17
(open)	mm	349	376	430	486	560	618	937	949	995
W	in	7.87	9.84	9.84	13.78	15.75	17.72	2.05	25.2	18.11
	mm	200	250	250	350	400	450	560	640	460
WT	BF	31	43	57	86	130	168	280	385	724
(Kg)	BW	26	38	44	68	110	138	228	329	618



ASME Pressure Class 300 Lb-Dimensions and Weights



NPS	in	2	2.5	3	4	6	8	10	12
d	mm	51	64	76	102	152	200	248	298
L-L1	in	11.5	13	14	17	22	26	31	33
(RF-BW)	mm	292	330	356	432	559	660	787	838
L2	in	11.62	13.12	14.12	17.12	22.12	26.12	31.12	33.12
(RTJ)	mm	295	333	359	435	562	664	791	841
H	in	16.73	19.76	20.51	24.41	34.88	36.69	40.94	50.39
(open)	mm	425	502	521	620	886	932	1040	1280
W	in	9.84	11.81	13.78	17.72	22.05	18.11	24.02	29.92
	mm	250	300	350	450	560	460	610	760
WT	BF	39	58	73	120	327	482	700	900
(Kg)	BW	33	48	61	95	261	385	588	795















Brief introduction:

The globe valve is designed reference to advanced internal and international standard. The body adopt

sphere configuration, and it also has the feature of good appearance, nice function and superior quality.



Apply from CLASS150 to CLASS1500, and -29℃～425℃(steel), -40℃～550℃(stainless steel).



Using different material, the valve may works with different medium, such as water,oil,gas,steam,carbamide

and other medium.



Features:

- Back seal

Back seal design to ensure dependable packing and sealing when valve is fully opened.(Replacement of packing under pressure is not recommended)



- Resist friction

Valve disc is given enough intensity and rigidity. Disc sealing surface may be built-up welded with satellite

alloy inlaid or other material responding to the users’ requests .



- Precise design:

Design the body and bonnet according to precise calculation. Body and bonnet have high strength ,

rigid and flow ability .



Mail part & material

	Item Name of parts	material
1	Body	WCB, CF8, CF8M
2	Seat	2Cr13,25+ satellite
3	Disc	2Cr13, 304, 25+satelite
4	Stem	2Cr13, 304, 304L
5	Gasket	Graphite+304, Graphite+08 steel
6	Bonnet	WCB,CF8,CF8M
7	Packing	Graphite,PTFE
8	Hand wheel	HT250,QT450







Technical Specification

-Nominal diameter: 2”-12”

-Applicable Temperature: -29℃～425℃(steel) -40℃～550℃

(stainless steel)

-Nominal pressure: 150Lb 300Lb 600Lb 900Lb 1500Lb

-Applicable Medium: water ,gas,oil,and other causticity medium.

Applications Standard

-Manufacture standard : ANSI B16.34

-Face to face dimension: ANSI B 16.10

-Flange dimension: ANSI B 16.5

-Test: API 598







Description:



Main external and connection dimension



	CLASS150
size(in)	2"	2-1/2"	3"	4"	5"	6"	8"	10"	12"
L,L1-RF.BW(mm)	203	216	214	292	330	356	495	622	698
L2-RTJ(mm)	216	229	254	305	343	368	508	635	711
H(mm)	330	390	410	475	540	585	725	825	940
K(mm)	200	250	250	300	350	350	450	500	600
Weight(Kg)	23	29	40	59	95	115	178	268	385



	CLASS300
size(in)	2"	2-1/2"	3"	4"	5"	6"	8"	10"	12"
L,L1-RF.BW(mm)	267	292	318	355	400	440	533	622	711
L2-RTJ(mm)	283	308	333	371	416	460	549	638	727
H(mm)	350	425	485	520	565	655	825	920	1155
K(mm)	200	250	300	300	350	350	500	600	700
Weight(Kg)	30	45	60	83	135	162	265	375	525



	CLASS600
size(in)	2"	2-1/2"		3"		4"		5"		6"		8"		10"
L,L1-RF.BW(mm)	292	330		356		432		508		559		660		787
L2-RTJ(mm)	295	333		359		435		511		562		664		791
H(mm)	420	490		550		590		620		700		950		1140
K(mm)	250	300		300		350		500		500		600		600
Weight(Kg)	39	61		76		122		210		245		447		692
	CLASS900
size(in)	2"		2-1/2"		3"		4"		5"		6"		8"
L,L1-RF.BW(mm)	368		419		381		457		559		610		737
L2-RTJ(mm)	371		422		384		460		562		613		740
H(mm)	495		540		600		655		670		780		1050
K(mm)	300		350		350		500		500		350*		350*
Weight(Kg)	96		79		117		178		305		355		730
Note: Use "*", mean have fixed the gear box.



	CLASS1500
size(in)	2"	2-1/2"	3"	4"	6"
L,L1-RF.BW(mm)	368	419	470	546	705
L2-RTJ(mm)	371	422	473	549	711
H(mm)	550	582	625	750	925
K(mm)	300	350	400	450	600
Weight(Kg)	116	125	145	210	475
