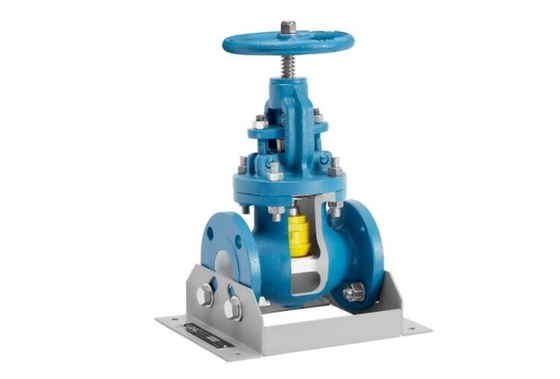

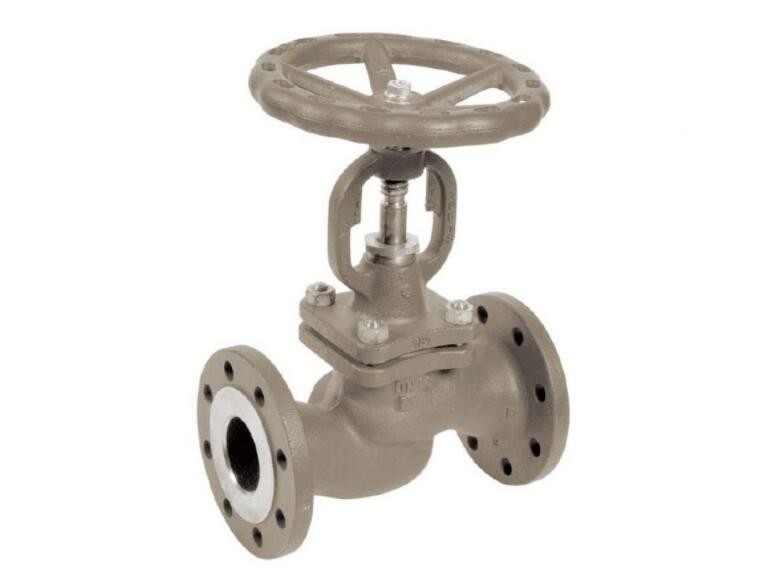

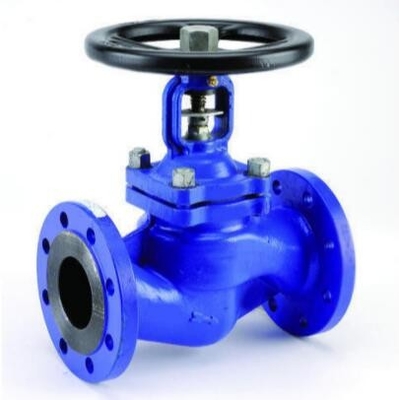

Red Wet Type Fire Hydrant Type A182 F22 Water Globe Valve 2 Way Pedestal With Control Outlet

Red Wet Type Fire Hydrant Type A182 F22 Water Globe Valve 2 Way Pedestal With Control Outlet

  • Red Wet Type Fire Hydrant Type A182 F22 Water Globe Valve 2 Way Pedestal With Control Outlet
  • Red Wet Type Fire Hydrant Type A182 F22 Water Globe Valve 2 Way Pedestal With Control Outlet
  • Red Wet Type Fire Hydrant Type A182 F22 Water Globe Valve 2 Way Pedestal With Control Outlet
Red Wet Type Fire Hydrant Type A182 F22 Water Globe Valve 2 Way Pedestal With Control Outlet
Product Details:
Place of Origin: China
Brand Name: TOBO
Certification: API ISO CE
Model Number: SS304
Payment & Shipping Terms:
Minimum Order Quantity: 5Pcs
Price: Negotiation
Packaging Details: Carton, Ply-Wooden case or according to the clients request
Delivery Time: 10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000Pcs per Month
Contact Now
Detailed Product Description
Production Name: Flanged End Globe Valve Material: SS304
Ends: Flanged Ends Or Threaded Application: Gas,Oil,Water, Corrosie Liquid And Steam
Size: DN80 Pressure: PN16
Tempreture: High Temperature Stem Thread Position: Outside Screw Stem Globe Valve
High Light:

2 Way Pedestal Water Globe Valve

,

Red Wet Type Water Globe Valve

,

Control Outlet Stainless Steel Globe Valve

Red Wet Type Fire Hydrant Type A182 F22 Water Globe Valve 2 Way Pedestal With Control Outlet



Standard Material Specifications

NO. Part Name CS to ASTM AS to ASTM SS to ASTM
Type A105 Type A182 F22 Type F34(L) Type F316(L)
1 Body A105 A182 F22 A182 F304(L) A182 F316(L)
2 Disc A276 420 A276 304 A276 304(L) A276 316(L)
3 Stem A182 F6 A182 f304 A182 F304(L) A182 F316(L)
4 Pressure Seat A105 A182 F304 A182 F304(L) A182 F316(L)
5 Pressure Ring A182 F304(L) F316L
6 Bonnet A105 A182 F22 A182 F304(L) A182 F316(L)
7 Pin A276 420 A276 304
8 P.S.Washer A105 A182 F22 A182 F304(L) A182 F316(L)
9 P.S.Lock Nut A194 2H A194 4 A194 8 A194 8M
10 Stem Packing Flexible Graphite PTFE
11 Gland A276 420 A182 F304
12 Gland Flange A216 WCB A351 CF8
13 Gland Eyebolt A193 B7 A193 B16 A193 B8 A193 B8M
14 Gland Nut A194 2H A194 4 A194 8 A194 8M
15 Yoke Nut A276 410
16 Handwheel A197
17 Nameplate SS
18 H.W.Nut A194 2H A194 4 A194 8 A194 8M
Suitable Medium W.O.G.etc W.O.G.etc HNO3,CH3OOH etc
Suitable Temperature -29 425 -29 550 -29 180
Note: Other materials are available upon request.

imensions (mm) and Weights (Kg)
NPS 1/2 3/4 1 1-1/4 1-1/2 2
L(RTJ) 900Lb 1500Lb 216 229 254 279 305 368
2500Lb 264 273 308 349 384 451
H(OPEN) 900Lb 1500Lb 318 318 318 398 408 524
2500Lb 333 333 333 410 420 524
W 160 160 180 200 250 280
Weights 900Lb 1500Lb 15.5 16.9 18.9 28.9 34.3 52.8
2500Lb 18.0 20.5 23.0 36.1 45.0 81.5





Globe valves are extensively employed to control flow. The range of flow control, pressure drop, and duty must be

considered in the design of the valve to avert premature failure and to assure satisfactory service. Valves subjected

to high-differential pressure-throttling service require specially designed valve trim.



Generally the maximum differential pressure across the valve disc should not exceed 20 percent of the maximum

upstream pressure or 200 psi (1380 kPa), whichever is less. Valves with special trim may be designed for applications

exceeding these differential pressure limits.



Advantages and disadvantages of Globe valves



ADVANTAGES:

  • Good shutoff capability
  • Moderate to good throttling capability
  • Shorter stroke (compared to a gate valve)
  • Available in tee, wye, and angle patterns, each offering unique capabilities
  • Easy to machine or resurface the seats
  • With disc not attached to the stem, valve can be used as a stop-check valve



DISADVANTAGES:

  • Higher pressure drop (compared to a gate valve)
  • Requires greater force or a larger actuator to seat the valve (with pressure under the seat)
  • Throttling flow under the seat and shutoff flow over the seat



Packing Details:



We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.


Delivery Details: According to the order, 7~60days



Detailed Product Description
Product Name: Hydraulic Application: Water
Size: DN100 Pressure: PN16
Standard: GB Temperature: -4~80 C
Body: Cast Iron Color: Red
High Light:

cast steel globe valve

,

water globe valve





Red Wet Type Fire Hydrant 4" Water Globe Valve 2 Way Pedestal With Control Outlet









body Material: ductile iron
bonnet: cast iron
DN100 flange end
surface painting







Red Wet Type Fire Hydrant Type A182 F22 Water Globe Valve 2 Way Pedestal With Control Outlet 0Red Wet Type Fire Hydrant Type A182 F22 Water Globe Valve 2 Way Pedestal With Control Outlet 1



  Parameters Production Description
  Hydrant type: Underground
  Installation position Vertical
  Installation location

Underground, area of heightened dampness,

water, use of anti-icing liquids

  Labelling

The hydrant should have plaque with following contents;

name and trademark of manufacturer, Standard,

Height of hydrant, production year.

  Instructions

Instruction manual in Russian,

Technical sheet (passport) in Russian.

Documents to be kept in air-tight bag.

  Delivery

Hydrant to be packaged and delivered in assembled state.

Valve to be in closed position.

  Certification

Manufacturer to have ISO 9001 certification.

Regular testing at place of manufacturer.

  Warranty Minimum 36 months from date of dispatch from factory

Но. Description Parameter
1

Working pressure, kgc/cm2,

no more than

16
2

Height of hydrant, mm

(with interval every 250mm)

500-3500
3 Material of main body of hydrant caste iron not less than СЧ15

malleable caste iron not less than EN-GJS-400-15 in accordance

with DIN EN 1563

hot dip galvanized steel on all sides + external

two-component PU covering

(epoxy powder JSK covering, thickness 250mcm

4 Spindle with square ends Stainless steel
5

Size of square rod (shaft).

Hardness of the square must

be 26/38 HRC

In accordance with GOST 8220-85 for fire hydrants, in accordance

with GOST 7499-71

6 Internal diameter of the body/case, mm 125
9 Valve stroke, mm GOST 8220-85
10

Required number of rotations

of rod to be fully open

GOST 8220-85
11

Hydraulic resistance in the hydrant

H = 1000mm, c2m-5, not more

GOST 8220-85
12

Change in hydraulic resistance every

250mm height, c2 m-5, not more

GOST 8220-85
13 Hardware projects

Stainless steel 12X18H10T (AISI321), carbonised steel with

thermally diffused zince covering



Part Material
NO. PART NAME Material
1 Body Ductile Iron
2 Bonnet Ductile Iron
3 Bolt Carbon Steel
4 Stem Stainless Steel
5 Disc Ductie Iron coated by NBR
6 London Round Brass



Technical Specification
Nominal Pressure:1.0,1.6MPa
DN:80mm
Work temperature: ≤120℃
Design Standard :BS
Flange Standard :BS EN 1092
OTHER STANDARD ARE AVAILABLE UPON REQUEST.
