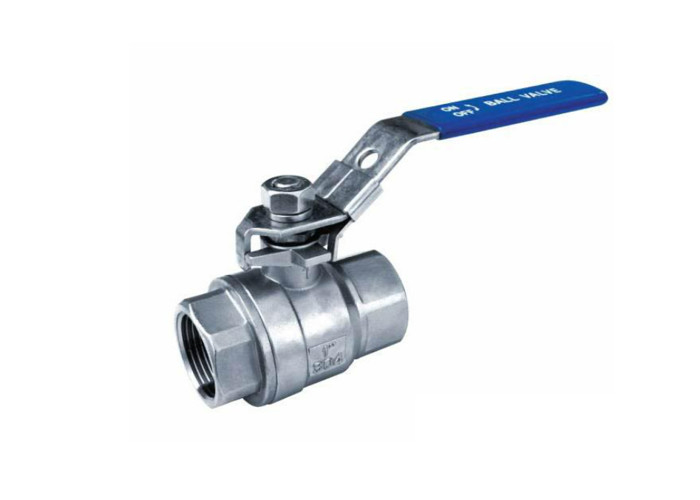

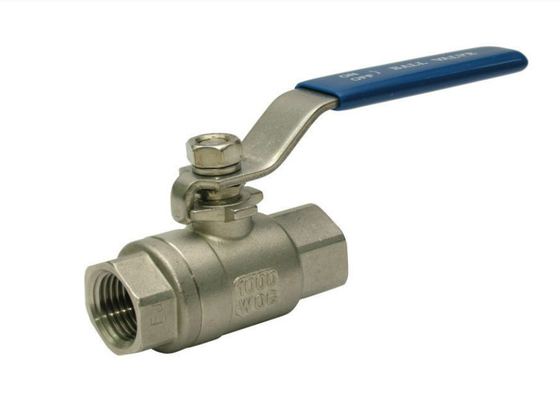

1/2 Inch Ss304 316 Stainless Steel Key Lock Sanitary 2pcs Port Female Thread Steam Ball Valve

1/2 Inch Ss304 316 Stainless Steel Key Lock Sanitary 2pcs Port Female Thread Steam Ball Valve

  • 1/2 Inch Ss304 316 Stainless Steel Key Lock Sanitary 2pcs Port Female Thread Steam Ball Valve
  • 1/2 Inch Ss304 316 Stainless Steel Key Lock Sanitary 2pcs Port Female Thread Steam Ball Valve
  • 1/2 Inch Ss304 316 Stainless Steel Key Lock Sanitary 2pcs Port Female Thread Steam Ball Valve
  • 1/2 Inch Ss304 316 Stainless Steel Key Lock Sanitary 2pcs Port Female Thread Steam Ball Valve
  • 1/2 Inch Ss304 316 Stainless Steel Key Lock Sanitary 2pcs Port Female Thread Steam Ball Valve
1/2 Inch Ss304 316 Stainless Steel Key Lock Sanitary 2pcs Port Female Thread Steam Ball Valve
Product Details:
Place of Origin: CHINA
Brand Name: TOBO
Certification: ISO
Model Number: /
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: negotiable
Packaging Details: Valves are wrapped in plastic bubble sheet & in plywood boxes
Delivery Time: 15 workdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Actuator: Manual Ball: Stainless Steel
Body Style: Full Port Bonnet: Stainless Steel
Connection: Threaded End Connection: Female NPT
Gasket: PTFE Handle Type: Lever
Material: Stainless Steel Pressure Rating: 1000 PSI
Seat: PTFE Size: 1/2
Stem: Stainless Steel Temperature Rating: 400°F
Valve Type: Ball Valve
High Light:

2pcs Port Stainless Steel Ball Valve

,

1/2 Inch Steam Ball Valve

,

Key Lock Sanitary Steam Ball Valve

1/2 Inch Ss304 316 Stainless Steel Key Lock Sanitary 2pcs Port Female Thread Steam ball valve



Quick Details

Full.bore

Threaded.ends:ANSIB2.1.BS.

21,DIN259/2999.JIS.130202/130203

Internal.entry.blow-out.proof.stem

Material:.CF8M.CF8.CF3M.WCB

Pressure.rating:.1000PSI.WOG

Pressure.test:.API.598

Lever.handle.with.locking.device



Size of 3 Piece Internal Threaded Ball Valve:

Size Φd L H W ΦB ΦE ΦS L2 Torque
1/4 11 50.4 48 103 10.8 18 14.2 10 4~5
3/8 12 50.4 48 103 12.7 19.5 17.6 10 4~5
1/2 15 61.4 50 103 16.1 23 21.7 10 6~8
3/4 20 70 70 60 127 21 27.1 14 8~10
1 25 79.6 64 127 26.7 34 33.8 14 12~5
1-1/4 32 93 93 79 154 35.1 41 15 18~20
1-1/2 38 102 102 85 154 40.5 49 15 25~30
1/2 50 124 124 87 192 54.8 61 19 35~45
2-1/2 65 156 156 117 244 65 73.8 21 55~65
3 76 179.2 125 244 80.5 94 89.8 24 80~90
4 100 218.4 173 330 100 116 115.5 35 140~160



PART NAME MATERIAL
BODY/BONNET WCB,LCC,LCB,CF8,CF8M,CF3,CF3M
BALL WCGB+HCr,A105+HCr,2Cr13,304,316,304L,316L
STEM 2Cr13,304,316,304L,316L
SEAT PTFE,PPL,NYLON 101



SPECIFICATIONS FOR STEEL GLOBE VALVES



Pressure rating and size:

PN10,PN25,PN40,PN64,150L-600LB
  DN40 to DN600
  1-1/2"~24"
Material: Body : A216-WCB,A325-LCB,A217-WC6,CF8,CF8M
  Disc : A105+13Cr, SS304, SS316
  Stem : A182+F6a,A182-F6a
  Bonnet :A216-WCB,A325-LCB,A217-WC6,CF8,CF8M
Operated type Handwheel
Structure: stopcock for water
Flange connection: ASME B16.5,EN1092
Butt-weld ends: ASME B16.25
Medium: W.O.G
Temperature: -20 to 425°C



A Ball valve is a quarter-turn rotary motion valve that uses a ball-shaped disk to stop or start the flow.

It resembles a plug valve in many ways. When a port in the ball is in line, it allows flow whereas when you

rotate the valve 90 degrees, solid part of the ball stop the flow.

Most ball valves are of the quick-acting type, which requires a 90° turn of the valve handle to operate the valve.

But in case large size valve which required considerable force to open or close the valve, the gear-operated

actuator is used. With this arrangement, a small handwheel is enough to operate a fairly large valve.

In this article, I have covered following types of Ball Valves that used in piping.

  • Floating

  • Trunnion Mounted

  • 3 Way

  • Top entry

  • Side entry or split body

  • Three-piece body

Applications of the Valve

  • It can be used in different types of fluid services as an on-off stop valve that provides bubble-tight shutoff.

  • It can be used in air, gaseous, and vapor services as well as hydrocarbon services.

  • Metal seated valves can be used in high-pressure & temperature applications.

  • it is widely used with instrument tubing to connect instruments.

  • It is applied in food , bewerage, wine, pharmaceutical and chemical industries.

Advantages

  • It is quick to open and close type that provides bubble-tight reliable sealing in high-pressure temperature applications.

  • It is smaller and lighter than a gate valve of the same size and rating.

  • Several designs of ball valves offer the flexibility of selection so that you can choose the valve that suits your requirements.

  • Easy to operate and Cost-effective maintenance.

  • The valve body can be replaced in any connections and the length will not change.



Features:


1.Forged ball
2.Anti-fire safe design
3.Anti-static device
4.Free leakage of body Sealed construction
5.Low torque in operation
6.Double block&bleed(DBB)
7.Emergency sealing
8.Extension stem at your choice
9.Automatic body cavity relief
10.Various driving types: gear, lever, electric, hydraulic, pneumatic



Standards Compliance


Design and manufacture: ANSI B16.34, API 608, API 6D, BS5351
Face to face dimensions: ANSI B16.10, API 6D
Flanged connection: ANSI B16.5, ANSI B16.47
Butt welded: ANSI B16.25
Fie-safe: API 607, API 6FA
Test and inspection: API 598, API6D



Packaging Details



Valves are wrapped in plastic bubble sheet & in plywood boxes

Port:China

Lead Time :

Quantity(Sets) 1 - 100 >100
Est. Time(days) 25 To be negotiated



The three-piece ball valve with the internal thread and the gate valve are the same type of valve.

The difference is that the closing part is a ball, and the ball rotates around the center line of the valve body to

achieve a valve that is opened and closed.

The three-piece ball valve only needs to be rotated tightly with a 90-degree rotation and a small rotational torque.

The completely equal valve body cavity provides a small, straight flow path for the medium. It is generally considered

that the ball valve is most suitable for opening and closing directly, and the ball valve has been designed to have a throttling

and control flow. The main characteristics of the ball valve are its compact structure, easy operation and maintenance,

suitable for general working media such as water, solvent, acid and natural gas, and also suitable for working media with

poor working conditions such as oxygen, hydrogen peroxide, methane and ethylene. The ball valve body can be integral or modular.

1/2 Inch Ss304 316 Stainless Steel Key Lock Sanitary 2pcs Port Female Thread Steam Ball Valve 0

Specification of 3 Piece Internal Threaded Ball Valve:

No. Drawing.No. Name Material
1 V3S000l Body CF8M
2 V3S0002 Cap CF8M
3 V3S0003 Ball CF8M
4 V3S0004 Stem 316
5 V3S0005 Seat PTFE+3%.GF 4
6 V3S0006 Gasket PTFE
7 V3S0007 Thrust.washer PTFE
8 V3S0008 Stem.packing PTFE
9 V3S0009 Gland 304
10 V3S0010 Spring.washer 304
11 V3S0011 Nut 304
12 V3S0012 Handle 304
13 V3S0013 Handle.Sleeve Rubber
14 V3S0014 Bolt 304
15 V3S0015 Spring.washer 304
16 V3S0016 Nut 304
17 V3S0017 Lock.washer 304
