TOBO STEEL GROUP CHINA
 |
| Place of Origin: | CHINA |
| Brand Name: | TOBO |
| Certification: | ISO |
| Model Number: | / |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | 50-99$ |
| Packaging Details: | Valves are wrapped in plastic bubble sheet & in plywood boxes |
| Delivery Time: | 15-20 DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000PCS |
| Type: | Globe Valves | SIZE: | DN15-DN400 |
|---|---|---|---|
| MATERIAL: | GS-CS25，SS304，SS316 | PRESSURE: | PN16, PN25, PN40, PN64 |
| Brand Name: | TOBO | Temperature Of Media: | Low Temperature, Medium Temperature |
| Packaging Details: | Valves Are Wrapped In Plastic Bubble Sheet & In Plywood Boxes | Temperature: | -20 To 425°C |
| High Light: | SS316 Globe Valve Ball Valve,SS304 Globe Valve Ball Valve,SS304 Globe Valve And Ball Valve |
||
24 Inch Gs C25 Din Pn16 Pn25 Air Steam Bellows Seal Globe Valve Ball Vaive
Quick Details
| PART NAME | MATERIAL |
| BODY/BONNET | WCB,LCC,LCB,CF8,CF8M,CF3,CF3M |
| BALL |
WCGB+HCr,A105+HCr,2Cr13,304,316,304L,316L |
| STEM |
2Cr13,304,316,304L,316L |
| SEAT |
PTFE,PPL,NYLON 101 |
Packaging & Delivery
Packaging Details
Valves are wrapped in plastic bubble sheet & in plywood boxes
Port:China
Lead Time :
| Quantity(Sets) | 1 - 100 | >100 |
| Est. Time(days) | 25 | To be negotiated |
Pressure rating and size:PN16,PN25,PN40
DN15 to DN600 1/2"~24"
Material:
Body : GS-C25, WCB, CF8, CF8M
Disc : C.S+13Cr, SS304, SS316
Stem : 1Cr13, SS304, SS316
Bellows : SS304, SS316
Bonnet : GS-C25, WCB, CF8, CF8M
Operated type
Handwheel
Structure:Bellows seal for high temperature medium
Flange connection:EN1092 PN16, PN25, PN40
Medium:W.O.G
Temperature:-20 to 425°C

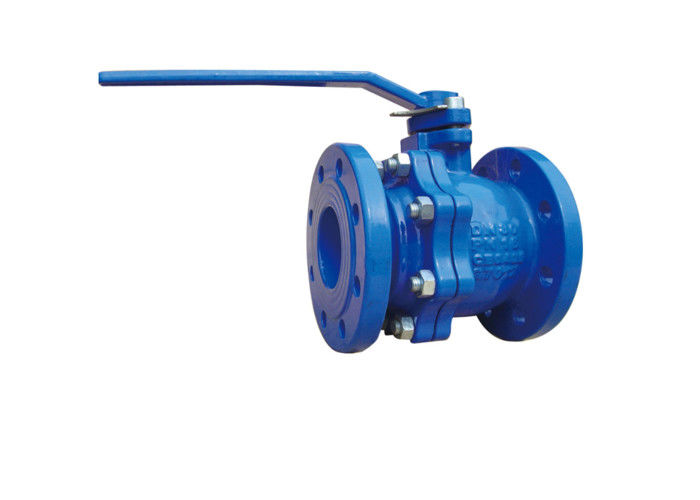

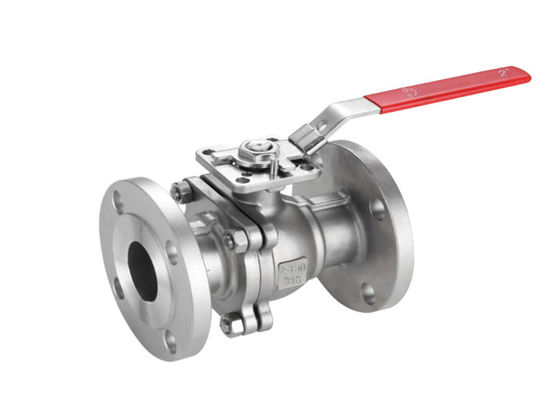

Ball valve, trunnion flanged type API 6D can be three-piece body or two piece body, both cast steel and forged steel are available, Size 2" to 36", pressure 150Lb to 1500Lb.
Features:
1.Forged ball
2.Anti-fire safe design
3.Anti-static device
4.Free leakage of body Sealed construction
5.Low torque in operation
6.Double block&bleed(DBB)
7.Emergency sealing
8.Extension stem at your choice
9.Automatic body cavity relief
10.Various driving types: gear, lever, electric, hydraulic, pneumatic
Standards Compliance
Design and manufacture: ANSI B16.34, API 608, API 6D, BS5351
Face to face dimensions: ANSI B16.10, API 6D
Flanged connection: ANSI B16.5, ANSI B16.47
Butt welded: ANSI B16.25
Fie-safe: API 607, API 6FA
Test and inspection: API 598, API6D
FAQ
1:Q: Are you a trading company or a manufacturer?
A: We are a manufacturer,which has almost 24 years of experience in this industry and be able to offer you the best price.
2:Q: Can you do OEM?
A: Yes
3:Q: How about the packing?
A: Normally, we have carton for packaging then packing the cartons in the plywood case.
4:Q: What is the MOQ?
A: The amount money of one order need bigger then 1000 dollar and the quantity of one size product need bigger then 10pcs.
5:Q: What about payment term?
A:30% paid as a deposit,the balance before shipment.
We are a high qualified manufacturer of valves-specializing in ball valves,gate valves,globe valves,swing check valves,y-strainers...etc...
Our objective is to be your preferred partner,we will do our best to offer you the products that are engineered to meet your exacting requirements,deliver on time and provide better support,to meet the quality standards demanded in today's business arena
| SPECIFICATIONS FOR STEEL GLOBE VALVES | |
|
Pressure rating and size: |
PN10,PN25,PN40,PN64,150L-600LB |
| DN40 to DN600 | |
| 1-1/2"~24" | |
| Material: | Body : A216-WCB,A325-LCB,A217-WC6,CF8,CF8M |
| Disc : A105+13Cr, SS304, SS316 | |
| Stem : A182+F6a,A182-F6a | |
| Bonnet :A216-WCB,A325-LCB,A217-WC6,CF8,CF8M | |
| Operated type | Handwheel |
| Structure: | stopcock for water |
| Flange connection: | ASME B16.5,EN1092 |
| Butt-weld ends: | ASME B16.25 |
| Medium: | W.O.G |
| Temperature: | -20 to 425°C |
