Place of Origin: | China |
Brand Name: | TOBO |
Certification: | SGS |
Model Number: | Sprial Wound Gasket |
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiation |
Packaging Details: | As per your requirement |
Delivery Time: | 5-8 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 10000pcs/month |
Size: | Custom Size, As Drawing | Thickness: | 4.5mm |
---|---|---|---|
Material: | SS304 | Standard: | ASME,BS And EN (DIN) Standards |
Shape: | Flat Gasket,Ring Gasket,Corrugated Gasket | Color: | Black,White,Silver,Red,Blue |
Application: | Computers,Wall And Roof,Automobile,Pumps Etc,LCD Etc. | ||
High Light: | Flange Spiral Wound Gasket,SS Spiral Wound Gasket,SS 304 Spiral Wound Gasket |

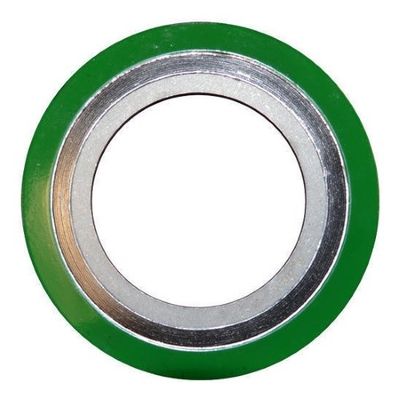

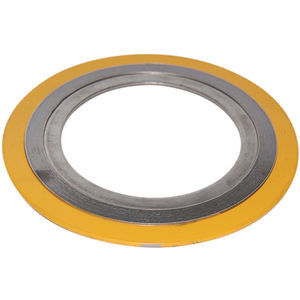

Color SS304 Inner & Outer Ring 3/4 Inch 150 Lb Flange Spiral Wound Gasket
What is Spiral Wound Gasket?
Why did we call it SWG? SWG is a short form of Spiral Wound Gasket.
These gaskets are fabricated from thin metal strip sandwiched between layers of non-metallic filler. SWG has
alternative spiral layers of thin metal sheet and filler material as shown in the image. Here in the cross-section,
the blue layers are of metal, and the black layers are of filler material. As these layers are wounded in continuous spiral forms,
these types of gaskets are known as spiral wound gasket.
Quick Details
Style |
inner ring MAT | winding ring MAT | outer ting MAT | structure |
Spiral Wound Gasket | 316 SS |
316 SS Graphite |
316 SS |
inner ring outer ring winding ring |
NPS) | Classes 150, 300 |
Class 150 | Class 300 | Class 150 | Class 300 |
---|---|---|---|---|---|
Inch | mm | Inside Diameter | Outside Diameter | ||
1⁄2 | 31.8 | 19.1 | 19.1 | 47.8 | 54.1 |
3⁄4 | 39.6 | 25.4 | 25.4 | 57.2 | 66.8 |
1 | 47.8 | 31.8 | 31.8 | 66.8 | 73.2 |
1 1⁄4 | 60.5 | 47.8 | 47.8 | 76.2 | 82.6 |
1 1⁄2 | 69.9 | 54.1 | 54.1 | 85.9 | 95.3 |
2 | 85.9 | 69.9 | 69.9 | 104.9 | 111.3 |
2 1⁄2 | 98.6 | 82.6 | 82.6 | 124 | 130.3 |
3 | 120.7 | 101.6 | 101.6 | 136.7 | 149.4 |
4 | 149.4 | 127 | 127 | 174.8 | 181.1 |
5 | 177.8 | 155.7 | 155.7 | 196.9 | 215.9 |
6 | 209.6 | 182.6 | 182.6 | 222.3 | 251 |
8 | 263.7 | 233.4 | 233.4 | 279.4 | 308.1 |
10 | 317.5 | 287.3 | 287.3 | 339.9 | 362 |
12 | 374.7 | 339.9 | 339.9 | 409.7 | 422.4 |
14 | 406.4 | 371.6 | 371.6 | 450.9 | 485.9 |
16 | 463.6 | 422.4 | 422.4 | 514.4 | 539.8 |
18 | 527.1 | 474.7 | 474.7 | 549.4 | 596.9 |
20 | 577.9 | 525.5 | 525.5 | 606.6 | 654.1 |
24 | 685.8 | 628.7 | 628.7 | 717.6 | 774.7 |
Thickness
The standard manufacturing thickness for spiral wound gaskets are: 3.2 mm; 4.5 mm; 6.5 mm
(measured across metallic strip not including the filler, which protrudes slightly beyond the metal).
Manufacturing tolerances
The tolerance of the gasket diameters (d1, d2, d3, d4, s, s1) are stipulated by ASME B 16.20 and
DIN 2632-2638 standards. The gaskets designed for non-standard flanges meet the recommendations by the ASME B 16.20.
Dimensions
The dimensions of the standard SWG meet the ASME, BS and EN (DIN) standards.
Strength of Spiral Wound Gasket
Spiral Wound Gasket is the ideal gasket in the semi-metallic category. A narrow strip of V-shape metal hoop is spirally wound
under tension with a filler cushion between the lamination of the metal and is spot-welded at both ends.
This unique construction of a spring-like metal and soft filler provides gasket excel-lent characteristics.
Resistance to high temperature and high pressures.
Excellent sealability is maintained with comparatively small gasket area.
Great resilience which allows the gasket to adjust automatically to change in operating conditions, such as pressure and
These gaskets are extremely popular due to the wide variety of available styles and sizes.
SWG can be fabricated of any metal which is available in thin strip and which can be welded; therefore, they can be used
against virtually any corrosive medium.
They can be used over the complete temperature range from cryogenic to approximately 1093ºC. This type of gasket can
be used in all pressures from vacuum to the standard 2500 pressure class flange ratings.
Relatively low-density Spiral wound gaskets are used in vacuum service whereas extremely high-density Spiral wound gaskets
are used in high-pressure service. The density of gasket is nothing but a number of layers of filler and metal strip in the given
width of the gasket.
