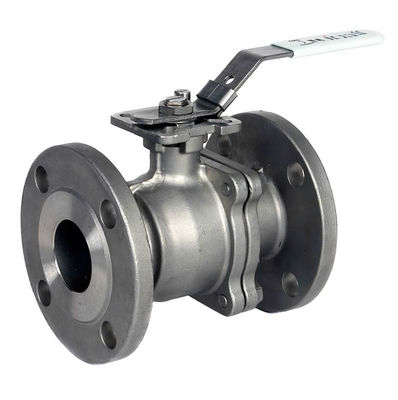

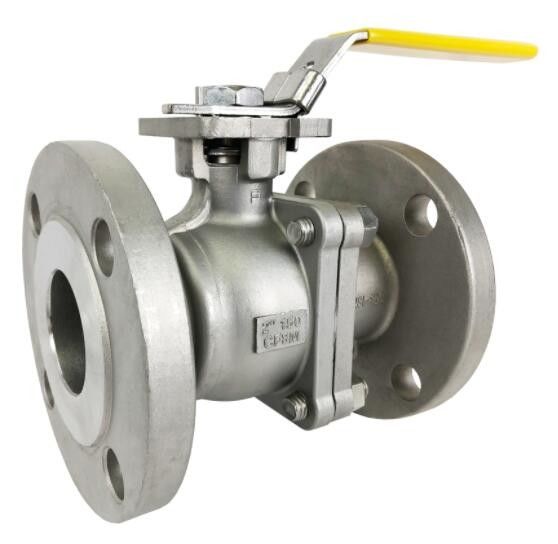

CF3M DN65 150LB Stainless Steel Ball Valve Oil and Gas Floating

CF3M DN65 150LB Stainless Steel Ball Valve Oil and Gas Floating

  • CF3M DN65 150LB Stainless Steel Ball Valve Oil and Gas Floating
  • CF3M DN65 150LB Stainless Steel Ball Valve Oil and Gas Floating
CF3M DN65 150LB Stainless Steel Ball Valve Oil and Gas Floating
Product Details:
Place of Origin: CHINA
Brand Name: TOBO
Certification: ISO
Model Number: CF8M
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: 50-99$
Packaging Details: Valves are wrapped in plastic bubble sheet & in plywood boxes
Delivery Time: 15-20 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000PCS
Contact Now
Detailed Product Description
Product Name: Flange Ball Valve Material: CF3M
Presure: 150LB Size: DN65
Usage: Oil And Gas Temperature Of Media: High-Pressure Temperature
Packaging Details: Valves Are Wrapped In Plastic Bubble Sheet Temperature: -20 To 425°C
High Light:

CF3M Stainless Steel Ball Valve

,

DN65 Stainless Steel Ball Valve

,

CF3M SS Ball Valve Flange Type

CF3M High-Pressure Temperature DN20 PN25 Stainless Steel Ball Valve



Quick Details



PART NAME

MATERIAL

BODY/BONNET

WCB,LCC,LCB,CF8,CF8M,CF3,CF3M

BALL

WCGB+HCr,A105+HCr,2Cr13,304,316,304L,316L

STEM

2Cr13,304,316,304L,316L

SEAT

PTFE,PPL,NYLON 101



SPECIFICATIONS FOR STEEL GLOBE VALVES



Pressure rating and size:

PN10,PN25,PN40,PN64,150L-600LB
  DN40 to DN600
  1-1/2"~24"
Material: Body : A216-WCB,A325-LCB,A217-WC6,CF8,CF8M
  Disc : A105+13Cr, SS304, SS316
  Stem : A182+F6a,A182-F6a
  Bonnet :A216-WCB,A325-LCB,A217-WC6,CF8,CF8M
Operated type Handwheel
Structure: stopcock for water
Flange connection: ASME B16.5,EN1092
Butt-weld ends: ASME B16.25
Medium: W.O.G
Temperature: -20 to 425°C



A Ball valve is a quarter-turn rotary motion valve that uses a ball-shaped disk to stop or start the flow.

It resembles a plug valve in many ways. When a port in the ball is in line, it allows flow whereas when you

rotate the valve 90 degrees, solid part of the ball stop the flow.

Most ball valves are of the quick-acting type, which requires a 90° turn of the valve handle to operate the valve.

But in case large size valve which required considerable force to open or close the valve, the gear-operated

actuator is used. With this arrangement, a small handwheel is enough to operate a fairly large valve.

In this article, I have covered following types of Ball Valves that used in piping.

  • Floating

  • Trunnion Mounted

  • 3 Way

  • Top entry

  • Side entry or split body

  • Three-piece body

Applications of the Valve

  • It can be used in different types of fluid services as an on-off stop valve that provides bubble-tight shutoff.

  • It can be used in air, gaseous, and vapor services as well as hydrocarbon services.

  • Metal seated valves can be used in high-pressure & temperature applications.

  • it is widely used with instrument tubing to connect instruments.

Advantages

  • It is quick to open and close type that provides bubble-tight reliable sealing in high-pressure temperature applications.

  • It is smaller and lighter than a gate valve of the same size and rating.

  • Several designs of ball valves offer the flexibility of selection so that you can choose the valve that suits your requirements.

  • Easy to operate and Cost-effective maintenance.



Features:


1.Forged ball
2.Anti-fire safe design
3.Anti-static device
4.Free leakage of body Sealed construction
5.Low torque in operation
6.Double block&bleed(DBB)
7.Emergency sealing
8.Extension stem at your choice
9.Automatic body cavity relief
10.Various driving types: gear, lever, electric, hydraulic, pneumatic



Standards Compliance


Design and manufacture: ANSI B16.34, API 608, API 6D, BS5351
Face to face dimensions: ANSI B16.10, API 6D
Flanged connection: ANSI B16.5, ANSI B16.47
Butt welded: ANSI B16.25
Fie-safe: API 607, API 6FA
Test and inspection: API 598, API6D



Packaging Details



Valves are wrapped in plastic bubble sheet & in plywood boxes

Port:China

Lead Time :

Quantity(Sets) 1 - 100 >100
Est. Time(days) 25 To be negotiated



Types of Ball Valves:

Although ball valves can be divided into many types based on the functionality, their major two categories are given below:



Floating Ball Valve:

A floating ball valve does not have any anchor for holding the ball. However, there is a stem that is attached to the ball.

Due to this reason the fluid freely moves the ball downwards according to the pressure of the flow. A floating ball valve

is considered a great choice for regulating the flow of the valve.



Trunnion Ball Valve:

Unlike the floating ball valve, trunnion ball valve comes with an anchor on both sides of the ball. This additional support

provides pivot to the ball and helps contain the huge flow. Due to this reason, trunnion ball valves are very popular for the

applications, which involve the flow of high-pressure valves.
