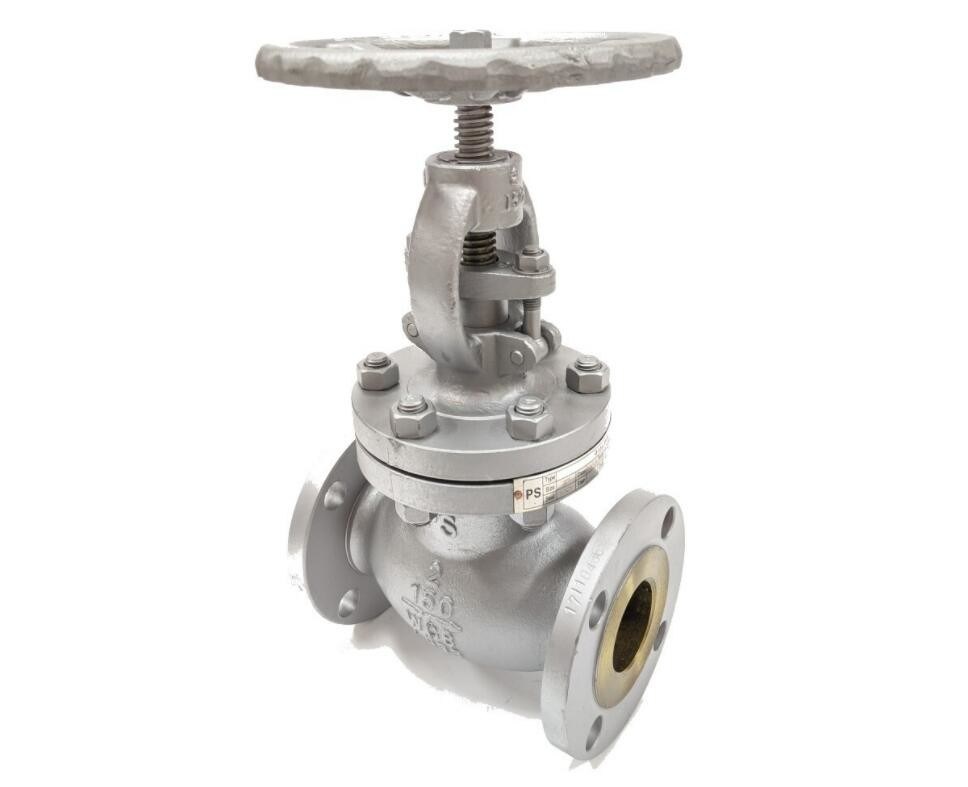

A351 CF8 DN300 PN16 OS&YCAST STEAM VALVE FLANGED CAST STEEL FLANGED GLOBE VALVE

Globe valves

• Rising Stem
• OS&Y, Flexible Wedge
• Body: ASTM A351 Gr. CF8M
• Disc: ASTM A351 Gr. CF8M
• Stem: SS316
• Packing: PTFE
• Face to Face: ANSI B16.10
• Flange Dimensions: ANSI B16.5 150
• Test Standard: API 598
• NACE MR-0175 Full Compliance



Size: DN15-300mm
Pressure: Pressure: PN 10/16/25, ANSI150/300lb
Actuator: Manual
Type: Bolted Bonnet, OS&Y, straight/Y type/right angle
Standard: DIN, BS, API
Face to Face Dimension: DIN3202 or ANSI B16.10,
Flanged Dimension: DIN2501, ANSI B16.5
Industrial applications: Petroleum, Chemical, Paper Making, Fertilizer, Coal Mining, water treatment and etc.


Carbon Steel ANSI 300 Flanged Globe Valve with metal seat. Designed and manufactured to BS 1873, Face to Face to ASME B16.10 with flanges to ASME B16.5, Tested by EN 12266-1. Stainless Steel reinforced graphite gasket and flexible graphite packing. 13CR reinforced seats and disc for greater durability and wear. Great for steam and high temperature applications. Globe Valves are also regularly used over gate valves or other manual control valves where the user wants to achieve a greater degree of flow control. As the shaft comes down it has a 'globe shape' on the bottom of it which slowly cuts down the flow before shutting off on the seat. All globe valves come with cast heat numbers to give quality assurance for testing and mil certificates.

Body designs of Globe valves

There are three primary body designs for Globe valves, namely..

Tee Pattern or Z-body



Angle Pattern


Wye Pattern or Y-body body




Disk and Seat and Stem of Globe valves

Disk.. The most common disk designs for Globe valves are.. ball disk, composition disk and the plug disk. Ball disk design is used primarily in low pressure and low temperature systems. It is capable of throttling flow, but in principle it is applied to stop and start flow.
Composition disk design uses a hard, non-metallic insert ring on the disk, which ensures a tighter closure.
Plug disk design provides better throttling than ball or composition designs. They are available in many different designs and they are all long and tapered.

Seat.. Globe valve seats are either integrated or screwed in to the valve body. Many Globe valves have backseats inside the Bonnet. Back seats provides a seal between the stem and Bonnet and prevents system pressure from building against the valve pakking, when the valve is fully open. Back seats are often applied in Globe valves.

Stem.. Globe valves uses two methods for connecting the disk and the stem.. the T-slot and the disk nut construction. In the T-slot design, the disk slides over the stem, while in the disk nut design, the disk is screwed into the stem.

Typical Applications of Globe valves

The following are some of the typical applications of Globe valves..

• Cooling water systems where flow needs to be regulated
• Fuel oil system where flow is regulated and leaktightness is of importance
• High-point vents and low-point drains when leaktightness and safety are major considerations
• Feedwater, chemical feed, condenser air extraction, and extraction drain systems
• Boiler vents and drains, main steam vents and drains, and heater drains
• Turbine seals and drains
• Turbine lube oil system and others
