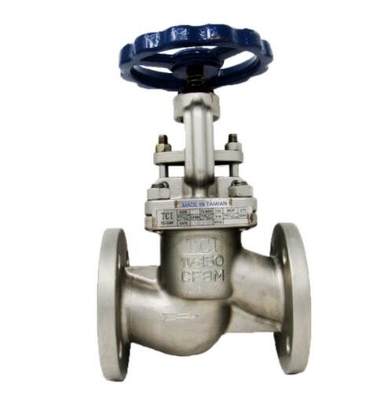

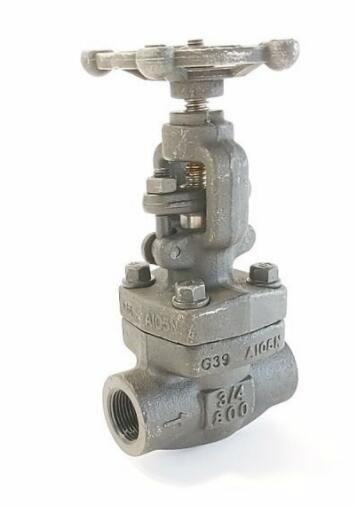

Api 603 Stainless Steel Flanged End Globe Valve Cast Steel Flanged Globe Valve

Api 603 Stainless Steel Flanged End Globe Valve Cast Steel Flanged Globe Valve

  • Api 603 Stainless Steel Flanged End Globe Valve Cast Steel Flanged Globe Valve
  • Api 603 Stainless Steel Flanged End Globe Valve Cast Steel Flanged Globe Valve
Api 603 Stainless Steel Flanged End Globe Valve Cast Steel Flanged Globe Valve
Product Details:
Place of Origin: China
Brand Name: TOBO
Certification: API ISO TS CE
Model Number: A351 CF8
Payment & Shipping Terms:
Minimum Order Quantity: 5Pcs
Price: Negotiation
Packaging Details: Carton, Ply-Wooden case or according to the clients request
Delivery Time: 10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000Pcs per Month
Contact Now
Detailed Product Description
Name: Stainless Steel Flange End Globe Valve Material: A351 CF8
Ends: Flange Application: Gas,Oil,Water
Size: 4'' Advantage: Shorter Stroke
Tempreture: High Tempreture Stem Thread Position: Outside Screw Stem Globe Valve
High Light:

Api 603 Stainless Steel Globe Valve

,

Cast Steel Flanged Globe Valve

,

JIS 10K Flanged Globe Valve



API 603 STAINLESS STEEL FLANGED END GLOBE VALVE CAST STEEL FLANGED GLOBE VALVE

Globe valves

Specification :



Size Range : 1/2"-12"
Valve Material : Stainless Steel
End Connections : Flanged
Stem and Disc Material : Stainless Steel
Rating: ASME Class 150/300, JIS 10K/20K, DIN PN16





DN 15 20 25 32 40 50 65 80 100 125 150 200
Ø P 15 20 25 32 40 50 65 80 100 125 150 200
Ø P1 17 20 25 32 39 50 65 80 100 125 150 200
L 130 150 160 180 200 230 290 310 350 400 480 600
H ( opened ) 193 194 203 212 263 273 305 344 378 420 483 606
H ( closed ) 178 180 188 191 235 238 270 297 344 375 429 525
Ø B 100 100 120 120 160 160 180 200 250 250 320 360
Weight ( Kg ) 3,3 3,9 5 6,6 9,5 12 17,3 22,7 35,8 52,8 72,5 126



Actuation handwheel
Connection for mounting between ANSI 150 and DIN PN 10/16 pipe flanges.
DN: 15, 20, 25, 32, 40, 50, 65, 80, 100, 125, 150, 200
PN: 16
Seal Material SS AISI 420
Tmax -10°C/+300°C
Valve Type

Globe valve, rising stem


Api 603 Stainless Steel Flanged End Globe Valve Cast Steel Flanged Globe Valve 0

Features :

Bolted bonnet, outside screw and yoke
handwheel operated, yoke integral with bonnet
integral Seat Ring
Fully traceable materials
Service Application : Hydraulic,Chemical,Steam,Oil/Gas,Oxygen,Vacuum
Basic design complied with ANSI B16.34/ API 603
Flange end complied with ASME/ANSI B16.5
Face-to-face dimensions complied with ASME/ANSI B16.10
Valve testing & inspection: ANSI B16.34/ API 598

Safety/Quality Approvals :
ISO9001; PED 97/23/EC



Api 603 Stainless Steel Flanged End Globe Valve Cast Steel Flanged Globe Valve 1



Carbon Steel ANSI 300 Flanged Globe Valve with metal seat. Designed and manufactured to BS 1873, Face to Face to ASME B16.10 with flanges to ASME B16.5, Tested by EN 12266-1. Stainless Steel reinforced graphite gasket and flexible graphite packing. 13CR reinforced seats and disc for greater durability and wear. Great for steam and high temperature applications. Globe Valves are also regularly used over gate valves or other manual control valves where the user wants to achieve a greater degree of flow control. As the shaft comes down it has a 'globe shape' on the bottom of it which slowly cuts down the flow before shutting off on the seat. All globe valves come with cast heat numbers to give quality assurance for testing and mil certificates.

Body designs of Globe valves

There are three primary body designs for Globe valves, namely..

Tee Pattern or Z-body

Api 603 Stainless Steel Flanged End Globe Valve Cast Steel Flanged Globe Valve 2

Angle Pattern

Api 603 Stainless Steel Flanged End Globe Valve Cast Steel Flanged Globe Valve 3
Wye Pattern or Y-body body

Api 603 Stainless Steel Flanged End Globe Valve Cast Steel Flanged Globe Valve 4



Disk and Seat and Stem of Globe valves

Disk.. The most common disk designs for Globe valves are.. ball disk, composition disk and the plug disk. Ball disk design is used primarily in low pressure and low temperature systems. It is capable of throttling flow, but in principle it is applied to stop and start flow.
Composition disk design uses a hard, non-metallic insert ring on the disk, which ensures a tighter closure.
Plug disk design provides better throttling than ball or composition designs. They are available in many different designs and they are all long and tapered.

Seat.. Globe valve seats are either integrated or screwed in to the valve body. Many Globe valves have backseats inside the Bonnet. Back seats provides a seal between the stem and Bonnet and prevents system pressure from building against the valve pakking, when the valve is fully open. Back seats are often applied in Globe valves.

Stem.. Globe valves uses two methods for connecting the disk and the stem.. the T-slot and the disk nut construction. In the T-slot design, the disk slides over the stem, while in the disk nut design, the disk is screwed into the stem.

Api 603 Stainless Steel Flanged End Globe Valve Cast Steel Flanged Globe Valve 5

Api 603 Stainless Steel Flanged End Globe Valve Cast Steel Flanged Globe Valve 6

Typical Applications of Globe valves

The following are some of the typical applications of Globe valves..

  • Cooling water systems where flow needs to be regulated
  • Fuel oil system where flow is regulated and leaktightness is of importance
  • High-point vents and low-point drains when leaktightness and safety are major considerations
  • Feedwater, chemical feed, condenser air extraction, and extraction drain systems
  • Boiler vents and drains, main steam vents and drains, and heater drains
  • Turbine seals and drains
  • Turbine lube oil system and others
